Femi Spare Parts for Miter Saws 999 - 8436025
€2.64
Tax included

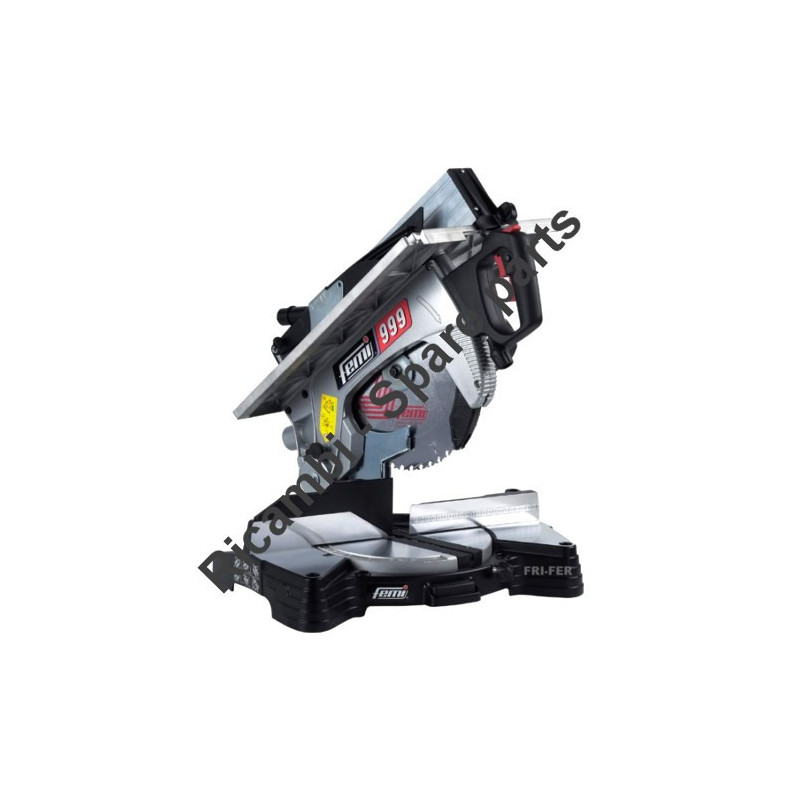

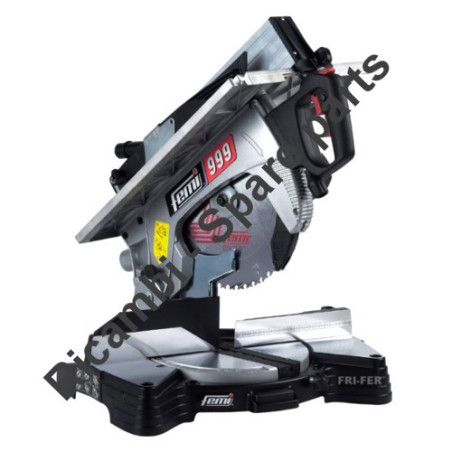

Femi Spare Parts for Mitre Saw 999 - 8436025
Femi Genuine spare parts or replacement parts for to repair Mitre Saw 999 - 8436025.
Blade Ø 305 mm, 1700 Watt of power in only 18 Kg weight- Max cutting capacity mm 165xH100
- Powerful single phase universal motor 1700 Watt!
- Weight only Kg 18
- New upper table fence with double guide
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Mitre Saw 999 - 8436025
Femi Genuine spare parts or replacement parts for to repair Mitre Saw 999 - 8436025.
In the following table, look for the model of Mitre Saws and the respective parts of the code.
| Mitre Saw for Wood 999-8436025 | ||
| # | Part Num. | Description |
| 1 | 5100336 | SCREW |
| 4 | 5190299 | WHEEL FLANGE |
| 5 | 5061037 | BLADE BUSHING |
| 7 | 5182862 | ARM PROTECTION |
| 10 | 5100146 | NUT |
| 11 | 5170001 | PROTECTION LOCKING PIN |
| 12 | 7130585 | LEVER AND PROTECTION ASS'Y |
| 14 | 151136 | SNAP RING |
| 17 | 7133655 | BLADE SUPPORT ASS'Y |
| 18 | 140070 | KNOB |
| 22 | 5100147 | NUT |
| 23 | 5120655 | SPACER |
| 26 | 5133008 | RIVING KNIFE PLATE |
| 28 | 120206 | WASHER |
| 29 | 5100088 | ADJUSTING SCREW |
| 32 | 5183067 | RIVING KNIFE |
| 35 | 151116 | SNAP RING |
| 36 | 7801093 | COMPLETE MOTOR |
| 37 | 5050146 | LEFT HANDLE |
| 38 | 5143014 | SAFETY BUTTON |
| 39 | 5143016 | SAFETY BUTTON |
| 41 | 5143015 | RELEASE BUTTON |
| 42 | 5142071 | LEVER |
| 43 | 802611 | SWITCH |
| 44 | 7130606 | HEAD RELEASE LINKAGE ASS'Y |
| 45 | 5080130 | SPRING |
| 50 | 5050145 | RIGHT HANDLE |
| 52 | 5181003 | RUBBER PROTECTION |
| 54 | 5100143 | SPACER |
| 61 | 5154501 | CABLE LOCKING DEVICE |
| 64 | 7820127 | ANTI-RESET AND SOFT START -->> NEW 7075152 |
| 68 | 5141016 | ADJUSTING HANDWHEEL |
| 71 | 5042832 | MITRE SAW ARM |
| 76 | 5181665 | UPPER PROTECTION |
| 78 | 5141009 | ADJUSTING HANDWHEEL |
| 79 | 5081016 | SPRING |
| 84 | 5130838 | UPPER TABLE FRONT GUIDE |
| 85 | 170004 | BALL |
| 93 | 5130767 | UPPER TABLE REAR GUIDE |
| 98 | 4130441 | UPPER TABLE |
| 100 | 5130480 | FENCE GUIDE |
| 101 | 4130474 | UPPER FENCE |
| 102 | 5181666 | LOWER PROTECTION |
| 103 | 5138019 | FRICTION PLATE |
| 104 | 140103 | WING NUT |
| 107 | 80256 | SPRING WASHER |
| 108 | 5063031 | BUSHING |
| 109 | 5124051 | RING |
| 110 | 5080168 | SPRING |
| 111 | 5181822 | FIX PROTECTION |
| 113 | 147006 | HAND LEVER |
| 114 | 5120646 | SPACER |
| 115 | 450880 | TIE ROD |
| 117 | 5181819 | LOWER PROTECTION |
| 118 | 5133745 | MITRE SAW BASE |
| 120 | 80257 | SPRING WASHER |
| 122 | 5401417 | GRADUATE PLATE |
| 123 | 5137902 | ANGULAR BRACKET |
| 124 | 124026 | THICKNESS WASHER |
| 125 | 140078 | WING NUT |
| 126 | 5081026 | SPRING |
| 129 | 5171077 | SWIVEL SUPPORT PIN |
| 130 | 5142096 | RELEASE LEVER |
| 131 | 5133003 | SLIDING BRACKET |
| 132 | 5137793 | REST FOOT |
| 134 | 5182900 | PLASTIC COVER |
| 135 | 5159514 | JOINT INDEX |
| 137 | 5121552 | SPACER |
| 138 | 5130901 | BASE EXTENSION |
| 139 | 5138002 | SWIVEL SUPPORT |
| 140 | 5182569 | SUPPORT COVER |
| 142 | 63035 | BUSHING |
| 145 | 151116 | SNAP RING |
| 146 | 5181821 | FIX PROTECTION |
| 148 | 152318 | ELASTIC PIN |
| 149 | 5170530 | JOINT PIN |
| 150 | 5137872 | JOINT |
| 152 | 5001560 | JOINT SHAFT |
| 153 | 120708 | PLAIN WASHER |
| 156 | 5159506 | JOINT INDEX |
| 157 | 7130624 | JOINT GROUP |
| 159 | 5130790 | ROD STOP |
| 160 | 107004 | WING NUT |
| 162 | 120706 | PLAIN WASHER |
| 165 | 124027 | THICKNESS WASHER |
| 167 | 5850113 | CARBON BRUSHE SET |
| 168 | 5182563 | MOTOR COVER |
| 173 | 5159012 | SCREW CAP |
| 174 | 5182884 | MOTOR HOUSING |
| 176 | 7013148 | ARMATURE |
| 177 | 5024119 | STATOR |
| 178 | 526200 | BALL BEARING |
| 180 | 5850009 | BRUSHE HOLDER |
| 182 | 7130657 | COMPLETE UPPER GUIDE |
| 183 | 7130559 | ROD STOP ASS'Y |
| 501 | 5130966 | SUPPORT BASE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 999 - 8436025
10 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
