FEMI Spare Parts for Table Saw TS 36-523

€4.06
Tax included

FEMI Spare Parts for Table Saw TS 36-523

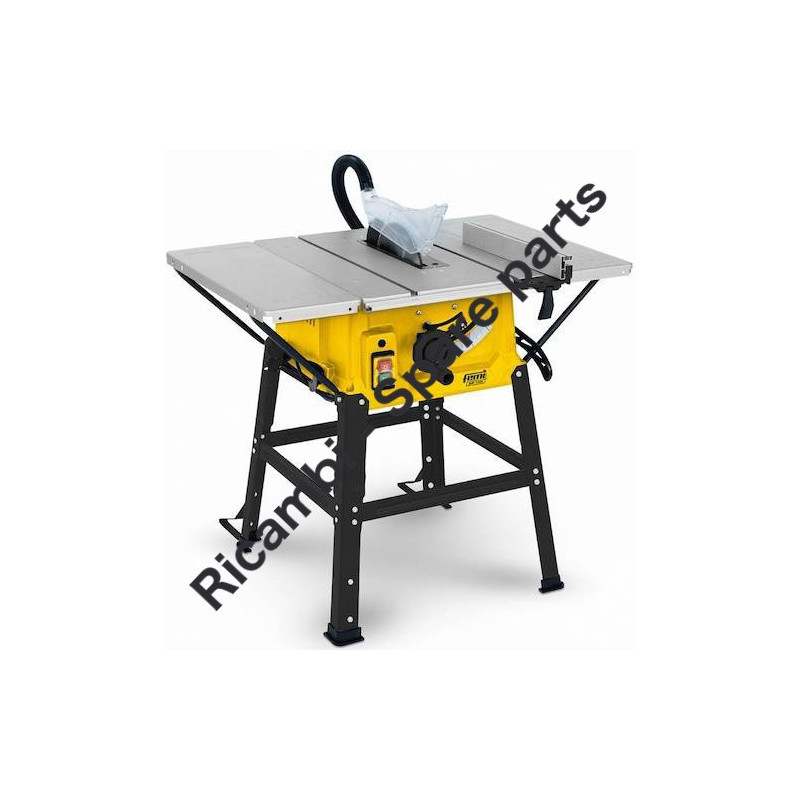

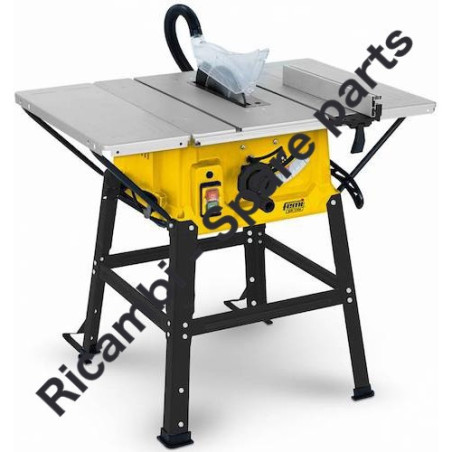

Femi original spare parts for to fix Constraction Site Table Saw D.254 mm TS 36-523 - 8450025.

Fix Your Constraction Site Table Saw D.254 mm TS 36-523 - 8450025. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

ITEM CODE: 8450025-5
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

FEMI Spare Parts for Table Saw TS 36-523

Fix Your Constraction Site Table Saw D.254 mm TS 36-523 - 8450025. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the type of the Planer and theirs spare parts code.
FEMI Constraction Site Table Saw D.254 mm TS 36-523 - 8450025
FEMI Table Saw D.254 mm TS 36-523 - 8450025
# Part Num. Description
5 8450025-5 OVERLOAD PROTECTION SWITCH (10A)
6 8450025-6 INDUCTANCE
7 8450025-7 CAPACITANCE
8 8450025-8 SWITCH BOX
9 8450025-9 SWITCH (KJD12)
10 8450025-10 CRIMPING BOARD
11 8450025-11 STICKERS
13 8450025-13 BIG HANDWHEEL
15 8450025-15 SMALL HANDLE
17 8450025-17 M6 STEPPED SCREW
18 8450025-18 ANGLE POSITIONING BLOCK
20 8450025-20 RACK
23 8450025-23 CABINET POINTER
24 8450025-24 4 SPRING CUSHION
27 8450025-27 BOX
29 8450025-29 SMALL BOX LABEL
32 8450025-32 WINDING FRAME (LEFT)
33 8450025-33 WINDING FRAME (RIGHT)
36 8450025-36 SAW BLADE FIXED BLOCK
37 8450025-37 CLAMP PRESSURE PLATE
38 8450025-38 TOOL BOX KNOB
40 8450025-40 LARGE COMPRESSION SPRING
41 8450025-41 END COVER
42 8450025-42 BODY ROTATION AXIS
43 8450025-43 .6 SPRING CUSHION
46 8450025-46 .8×.22×2 GASKET
48 8450025-48 BUSHING (1)
49 8450025-49 FIXED BLOCK
50 8450025-50 BUSHING (TWO)
51 8450025-51 ROTATING SUPPORT 1
53 8450025-53 GEAR
55 8450025-55 POINTER FRAME
57 8450025-57 ROTATING SUPPORT 2
59 8450025-59 MOTOR ROTATING SHAFT
60 8450025-60 PRESSURE PLATE
62 8450025-62 ROTATING SEAT 1
63 8450025-63 ROTATING SEAT 2
64 8450025-64 WORKBENCH EXTENSION SUPPORT FRAME
65 8450025-65 MOTOR SUPPORT PLATE
66 8450025-66 DUST HOOD
68 8450025-68 SAW BLADE GUARD 1
70 8450025-70 BRIQUETTING
71 8450025-71 GASKET
73 8450025-73 ACTIVITY BOARD
74 8450025-74 SMALL PRESSURE PLATE
75 8450025-75 TORSION SPRING
78 8450025-78 EXTENSION BOARD
79 8450025-79 PANEL
81 8450025-81 INCISION AUXILIARY
83 8450025-83 EXTERNAL PRESSURE PLATE
84 TR36-534 BLADE D.254 Z 40
86 8450025-86 PUSH ROD
87 8450025-87 SAW BLADE POSITIONING RING
88 8450025-88 INTERNAL PRESSURE PLATE
90 8450025-90 BEARING CHAMBER
91 8450025-91 6003 BEARING
92 8450025-92 DISTANCE SET
94 8450025-94 CIRCLIP FOR 35 HOLES
95 8450025-95 OUTPUT SHAFT
96 8450025-96 FLAT KEY 5×5×12
97 8450025-97 BIG GEAR
98 8450025-98 CIRCLIP FOR 16 AXIS
99 8450025-99 HK1210 NEEDLE ROLLER BEARING
100 8450025-100 MIDDLE COVER
102 8450025-102 4 TOOTHED GASKET
103 8450025-103 6202 BEARING
104 8450025-104 SCREW
105 8450025-105 ROTOR
106 8450025-106 629 BEARING
108 8450025-108 STATOR
109 8450025-109 WINDSHIELD
110 8450025-110 MOTOR COVER
111 8450025-111 BRUSH GRIP
112 8450025-112 CARBON BRUSH
113 8450025-113 BRUSH GRIP COVER
114 8450025-114 (MOTOR) CONNECTION LINE
115 8450025-115 CABLE PLUG
116 8450025-116 CABLE SHEATH
118 8450025-118 5 SPRING CUSHION
120 8450025-120 STEP GASKET
122 8450025-122 STUFFY
123 8450025-123 SHORT BACKER
124 8450025-124 LONG BACKER
125 8450025-125 PANEL RAIL
126 8450025-126 POINTER
127 8450025-127 BACKER SLIDING SEAT
128 8450025-128 LOCK THE HANDLE
129 8450025-129 HORIZONTAL PIN
134 8450025-134 SPLITTING KNIFE
135 8450025-135 SPLITTING KNIFE PRESSURE PLATE (1)
136 8450025-136 SPLITTING KNIFE PRESSURE PLATE (2)
146 8450025-146 CARD BOARD
149 8450025-149 FEET
151 8450025-151 RUNG
158 8450025-158 FOOT PAD
159 8450025-159 ANTI-FALL BRACKET
160 8450025-160 PANEL RULER
161 8450025-161 WRENCH
162 8450025-162 LONG PLASTIC HOSE (1M)
163 8450025-163 WORKBENCH EXTENSION SUPPORT
200 8450025-200 COMPLETE GONIOMETER
201 8450025-201 COMPLETE UPPER PROTECTION
202 8450025-202 COMPLETE FENCE
203 8450025-203 MOTOR ASS'Y
204 8450025-204 COMPLETE WHEEL
