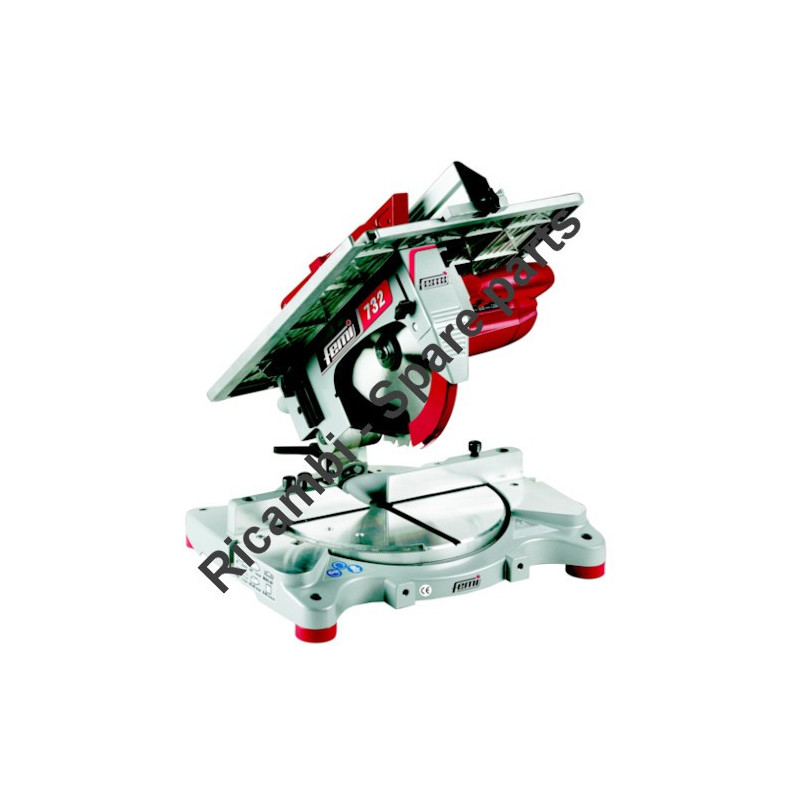

Femi Spare Parts for Miter Saw 732-8420028
€14.18
Tax included
Femi Spare Parts for Miter Saw 732 - 8420028
Femi Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Miter Saw 732 - 8420028.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Miter Saw 732 - 8420028
Femi Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Miter Saw 732 - 8420028.
In the following table, look for the model of Miter Saw and the respective parts of the code.
| Wood Miter Saw 732-8420028 | ||
| # | Part Num. | Description |
| 1 | 5181785 | UPPER PROTECTION ASSY |
| 2 | 5130462 | UPPER WORKING TABLE |
| 3 | 7130629 | UPPER REST GROUP |
| 4 | 5871074 | CABLE |
| 5 | 5850113 | CARBON BRUSHE SET |
| 6 | 5182563 | MOTOR COVER |
| 8 | 7801829 | MOTOR ASS'Y |
| 12 | 5159012 | SCREW CAP |
| 13 | 5182888 | MOTOR COVER |
| 16 | 5262000 | BALL BEARING |
| 17 | 5024119 | STATOR |
| 19 | 0802622 | SWITCH |
| 20 | 7820124 | ELECTRONIC CARD |
| 24 | 5153504 | CABLE LOCKING DEVICE |
| 25 | 5221021 | RUBBER GASKET |
| 27 | 5181003 | RUBBER PROTECTION |
| 28 | 7130622 | TRANSMISSION GROUP |
| 29 | 5182562 | BOX COVER |
| 30 | 5181784 | PROTECTION GROUP |
| 31 | 5100336 | SCREW |
| 32 | 5190308 | BLADE FLANGE |
| 34 | 7013148 | ROTOR |
| 35 | 5182883 | ELECTRIC BOX |
| 39 | 5120672 | SPACER |
| 40 | 0107012 | WING NUT |
| 41 | 5130883 | TABLE GUIDE |
| 42 | 5181781 | LOWER PROTECTION |
| 45 | 5120673 | SPACER |
| 46 | 0221106 | O-RING SEAL |
| 47 | 5171072 | LOCKING PIN |
| 48 | 5182886 | FAN COVER |
| 49 | 0526201 | BALL BEARING |
| 50 | 0106116 | RING NUT |
| 51 | 5124085 | WASHER |
| 52 | 5170003 | LOCKING PIN |
| 53 | 5080163 | SPRING |
| 54 | 5042813 | MITRE SAW ARM |
| 55 | 5190309 | BLADE FLANGE |
| 60 | 5080160 | SPRING |
| 63 | 5183084 | RIVING KNIFE |
| 64 | 5130882 | TABLE GUIDE |
| 65 | 7130632 | DISC GUARD + LEVERAGE |
| 67 | 5182882 | ARM COVER |
| 69 | 5080162 | SPRING |
| 70 | 0107013 | WING NUT |
| 71 | 5100337 | SCREW |
| 72 | 7130648 | LEVER ASS'Y |
| 75 | 5124084 | WASHER |
| 76 | 7130630 | JOINT-SHAFT GROUP |
| 77 | 5850009 | CARBON BRUSHE HOLDER |
| 78 | 5159013 | SCREW CAP |
| 79 | 5080161 | SPRING |
| 80 | 5130970 | RIP FENCE BASE |
| 82 | 5100339 | SCREW |
| 87 | 5181828 | BLADE PROTECTION |
| 88 | 5081029 | SPRING |
| 89 | 5137982 | SPRING SUPPORT |
| 90 | 0147019 | HAND LEVER |
| 91 | 5120674 | SPACER |
| 92 | 5100338 | SCREW |
| 93 | 7130626 | ROD STOP ASS'Y |
| 94 | 0142002 | WOOD PUSHING DEVICE |
| 96 | 5171074 | SUPPORT PIN |
| 98 | 5137979 | SWIVEL SUPPORT |
| 99 | 5130881 | JOINT SUPPORT |
| 102 | 5140056 | KNOB |
| 104 | 5137984 | RUBBER FOOT |
| 105 | 5133720 | BASE |
| 106 | 5159519 | INDEX |
| 108 | 5170537 | LOCKING PIN |
| 109 | 5402228 | GRADUATE PLATE |
| 110 | 5181780 | LOWER PROTECTION |
| 111 | 7130714 | COMPLETE VICE |
| 112 | 0802327 | SWITCH |
