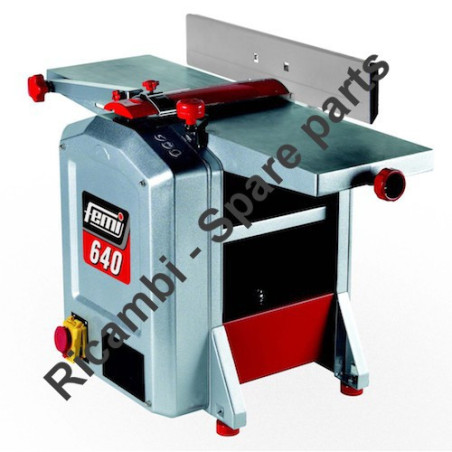

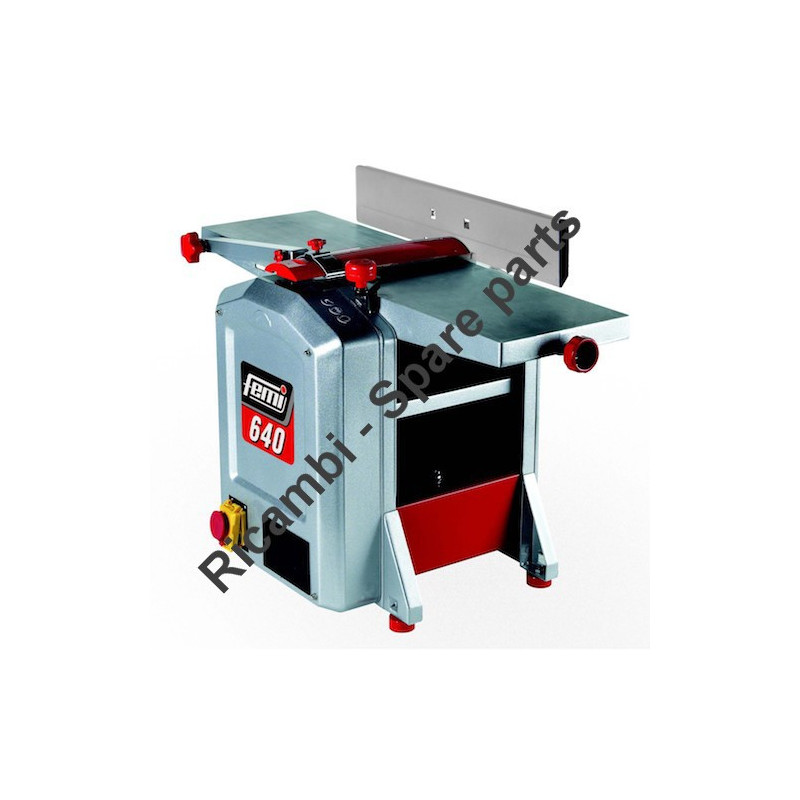

Spare Parts for Thickness Planer FEMI 640
€1.50
Tax included
Spare Parts for Thickness Planer FEMI 640
Femi genuine spare parts or replacement parts for to repair Surface and Thickness Planer FEMI 640 - 8440020.
Fix Your Thickness Planer FEMI 640. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Spare Parts for Thickness Planer FEMI 640
Fix Your Thickness Planer FEMI 640 - 8440020. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the type of the plane and theirs spare parts code.
| Thickness Planer FEMI PF640 | ||
| # | Part Num. | Description |
| 2 | 5130890 | CABLE SUPPORT |
| 3 | 5133739 | RIGHT PANEL |
| 6 | 5133569 | RUBBER FOOT |
| 7 | 5133736 | BASE |
| 13 | 5130469 | ADJUSTING DEVICE |
| 14 | 5100081 | SCREW |
| 15 | 5213103 | CHAIN |
| 16 | 5141014 | ADJUASTING HANDWEEL |
| 17 | 5044000 | HANDWHEEL CAP |
| 18 | 5100342 | SCREW |
| 19 | 5130477 | MOBILE WORKING TABLE |
| 19-1 | 5301122 | BASE INSERT |
| 19-2 | 5301025 | BASE INSERT |
| 20 | 5159522 | INDEX |
| 24 | 5213003 | CHAIN WHHEL |
| 29 | 5063054 | BUSHING |
| 31 | 5133742 | LEFT PANEL |
| 32 | 5402252 | GRADUATE PLATE |
| 40 | 5121565 | SPACER |
| 42 | 5153506 | CABLE LOCKING DEVICE |
| 44 | 0215112 | BELT |
| 48 | 5121566 | SPACER |
| 51 | 5871082 | CABLE |
| 52 | 5100155 | RING NUT |
| 53 | 5100002 | SCREW |
| 54 | 5063055 | BUSHING |
| 54-1 | 5124089 | WASHER |
| 54-2 | 5080166 | SPRING |
| 54-3 | 5171079 | PIN |
| 54-4 | 5063056 | BUSHING |
| 54-5 | 5402253 | GRADUATE PLATE |
| 57 | 5871009 | CABLE |
| 59 | 5182893 | SWITCH BOX |
| 61 | 0816002 | THERMAL RELAY |
| 66 | 0802624 | SWITCH |
| 69 | 5124087 | WASHER |
| 70 | 5213002 | CHAIN WHHEL |
| 71 | 5066000 | BUSHING |
| 66 | 0802617 | SWITCH |
| 72 | 5090100 | WHEEL GEAR |
| 74 | 5090101 | WHEEL GEAR |
| 74-2 | 5063051 | BUSHING |
| 75 | 5130893 | GEAR BRACKET |
| 76 | 5081031 | SPRING |
| 77 | 5171004 | WHEEL PIN |
| 81 | 5213001 | CHAIN WHHEL |
| 82 | 5213101 | CHAIN |
| 83 | 5171031 | WHEEL PIN |
| 86 | 0214100 | BELT |
| 87 | 5130894 | BRACKET |
| 91 | 5214000 | DRIVING WHEEL |
| 93 | 6200 | Ball Bearing 62002Z |
| 94 | 5182906 | BEARING PROTECTION |
| 97 | 5130903 | SHAFT |
| 100 | 5130904 | ROLLER |
| 102 | 5130905 | ROLLER |
| 103/116 | 5081030 | SPRING |
| 104 | 5066002 | SPECIAL BEARING |
| 107 | 5159014 | RATCHETS |
| 109 | 5130892 | KNIFE BRACKET |
| 111 | 5130908 | KNIFE ROLLER |
| 111-2 | 5001503 | KNIFE SUPPORT SHAFT |
| 112 | 5100004 | BLADE SCREW |
| 113 | 0730912 | NEEDLE BEARING HK0912 |
| 114 | 5182907 | BEARING PROTECTION |
| 117 | 5159520 | INDEX |
| 118 | 5130467 | FRONT WORKING TABLE |
| 121 | 5140009 | KNOB |
| 122 | 5130909 | KNIFE GUIDE |
| 123 | 5140004 | KNOB |
| 124 | 5402254 | GRADUATE PLATE |
| 125 | 5100082 | SCREW |
| 126 | 5044032 | CAP |
| 127 | 5138008 | KNIFE PROTECTION SUPPORT |
| 127-1 | 5044033 | CAP |
| 128 | 5124086 | WASHER |
| 129 | 5140062 | KNOB |
| 131 | 0801205 | SAFETY MICROSWITCH |
| 132 | 5130471 | MICROSWITCH BRACKET |
| 133 | 5100083 | SCREW |
| 134 | 5171001 | END RUN PIN |
| 135 | 5100343 | SCREW |
| 139 | 5130461 | REAR WORKING TABLE |
| 140 | 5181809 | Block Knives Protection |
| 141 | 5140057 | Adjustment knob. Of Lavor plan |
| 152 | 7130644 | G.Po straight edge Bumper Extruded |
| 153 | 5182566 | Knob |
| 157 | 5182281 | conveyor Planer |
| 158 | 0140102 | Key Operated Micro Plane F-S |
| 159 | 5182565 | conveyor cover |
| 500 | 3280010 | Knives |
| 501 | 0850103 | Carbon Brushe Pair |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FEMI 640 - 8440020
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
