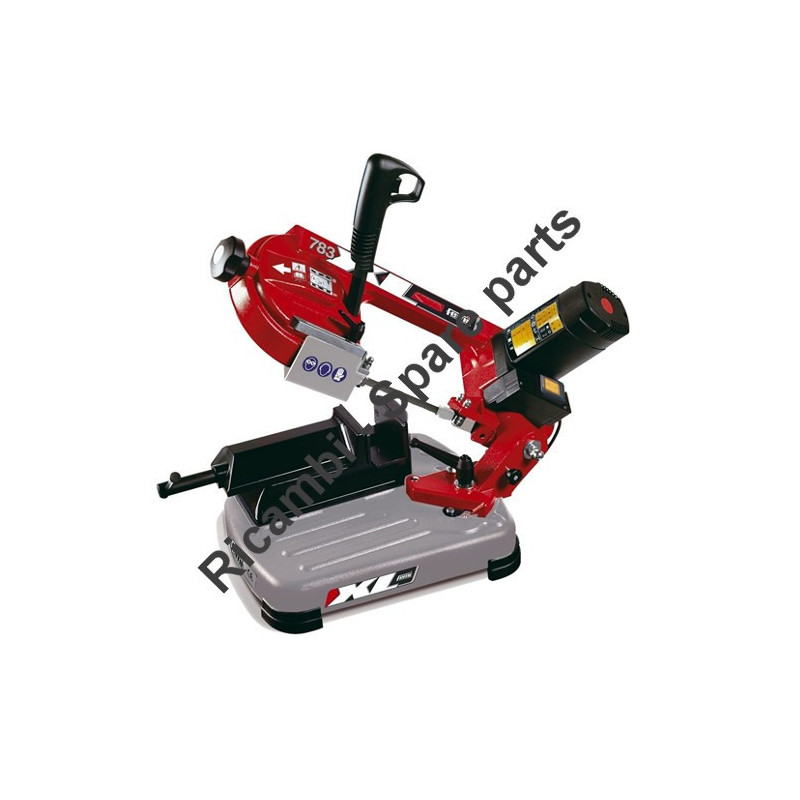

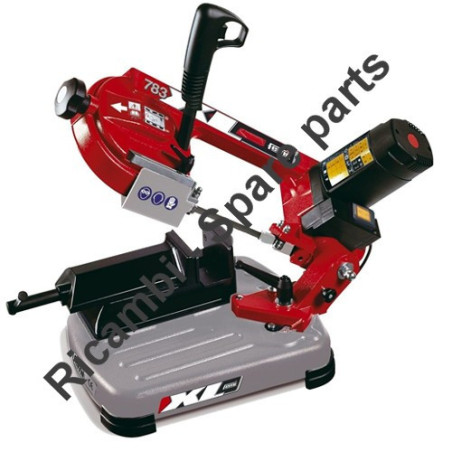

Femi Spare Parts for Band Saw for Metal 783XL/8484623
€3.47
Tax included
Femi Spare Parts for Band Saw for Metal 783XL/8484623
Femi Genuine spare parts or replacement parts for to repair Electric Band Saw for Metal 783XL - 8484623.Electronic adjustment of cutting speed, sturdy professional vice
- Max cutting capacity Ø 105 mm – 100x85 mm
- Weight Kg 16
- Bandsaw blade mm.1330 x13 x0,65
- Powerful motor 950 Watt
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Band Saw for Metal 783XL/8484623
Femi Genuine spare parts or replacement parts for to repair Electric Band Saw for Metal 783XL - 8484623.
In the following table, look for the model of the Band Saw and the respective parts of the code.
| Band Saw 783XL/8484623 | ||
| # | Part Num. | Description |
| 116 | 0063027 | BUSH |
| 138 | 0063041 | BUSH |
| 101 | 0063042 | SLEEVE |
| 111 | 0080261 | SPRING WASHER |
| 118 | 0101408 | SELF-LOCKING NUT |
| 44 | 0102106 | CAP NUT |
| 96 | 0102110 | CAP NUT |
| 43 | 0120206 | WASHER |
| 50 | 0120706 | PLAIN WASHER |
| 92 | 0120710 | PLAIN WASHER |
| 28 | 0129004 | INOX STEEL WASHER |
| 14 | 0130502 | THERMOSTAT SUPPORT |
| 71 | 0140074 | HANDWHEEL |
| 99 | 0140076 | HANDWHEEL |
| 49 | 0147000 | HAND LEVER |
| 91 | 0147002 | HAND LEVER |
| 126 | 0150701 | CYLINDRIC PIN WITH SLOT |
| 93 | 0151409 | SNAP RING |
| 21 | 0155013 | ELASTIC RING |
| 25 | 0155136 | THICKNESS WASHER |
| 45 | 0155140 | THICKNESS WASHER |
| 33 | 0155142 | THICKNESS WASHER |
| 114 | 0155143 | THICKNESS WASHER |
| 119 | 0155150 | THICKNESS WASHER |
| 59 | 0155152 | THICKNESS WASHER |
| 30 | 0174022 | NEEDLE |
| 56 | 0179901 | NEEDLE |
| 98 | 0222021 | O-RING SEAL |
| 55 | 0400604 | SCREW |
| 107 | 0401001 | SCREW |
| 104 | 0402905 | RIVET |
| 22 | 0570627 | BALL BEARING |
| 29 | 0590624 | BALL BEARING |
| 60 | 0596002 | BALL BEARING |
| 32 | 0600607 | BALL BEARING |
| 24 | 0606202 | BALL BEARING |
| 46 | 0730609 | CAGE BEARING |
| 26 | 0730810 | CAGE BEARING |
| 84 | 0802314 | SWITCH |
| 77 | 5050122 | HANDLE COVER |
| 78 | 0802317 | SWITCH |
| 79 | 5050121 | HANDLE BASE |
| 82 | 0802319 | SWITCH |
| 117 | 0802606 | SWITCH |
| 17 | 0816003 | THERMOSTAT |
| 90 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 11 | 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 57 | 5001564 | (included into code 5001572) |
| 16 | 5024111 | STATOR |
| 72 | 5042844 | BAND SAW BODY |
| 127 | 5042849 | VICE BASE |
| 136 | 5042850 | MOBILE VICE |
| 79 | 5050121 | HANDLE |
| 10 | 5061038 | RUBBER BUSHING |
| 18 | 5061039 | RUBBER BUSHING |
| 133 | 5063034 | BUSHING |
| 115 | 5080116 | SPRING |
| 67 | 5081005 | SPRING |
| 70 | 5081021 | (included into code 0080256x12) |
| 39 | 5100064 | SCREW |
| 38 | 5100065 | SCREW |
| 27 | 5100090 | LOCKING SCREW |
| 134 | 5100320 | SCREW |
| 69 | 5100506 | (included into code 5100507) |
| 3 | 5112021 | MOTOR FAN |
| 31 | 5120638 | SPACER |
| 61 | 5120663 | SPACER |
| 103 | 5124029 | ECCENTRIC |
| 63 | 5124062 | WASHER |
| 120 | 5130416 | PLATE |
| 131 | 5130426 | PLATE |
| 132 | 5130427 | PLATE |
| 121 | 5130428 | SLIDING VICE PLATE |
| 66 | 5130734 | WHEEL GUIDE |
| 51 | 5130932 | BLADE GUIDE |
| 40 | 5130939 | BRACKET |
| 109 | 5133763 | BAND SAW BASE |
| 108 | 5137842 | BASE FOOT |
| 58 | 5137869 | (included into code 5137914) |
| 130 | 5142014 | LEVER |
| 73 | 5142070 | LEVER |
| 128 | 5150005 | VICE PIN STOPPER |
| 123 | 5152613 | VICE JAW |
| 42 | 5154103 | CABLE LOCKING DEVICE |
| 88 | 5154501 | CABLE LOCKING DEVICE |
| 97 | 5171043 | LOCKING PIN |
| 41 | 5181016 | BLADE CLEANER FELT |
| 35 | 5181623 | PROTECTION |
| 52 | 5181844 | SLIDING PROTECTION |
| 7 | 5182005 | BAFFLE |
| 83 | 5182520 | SWITCH COVER |
| 80 | 5182521 | SWITCH COVER |
| 20 | 5182522 | GEAR COVER |
| 2 | 5182837 | MOTOR COVER |
| 4 | 5182838 | MOTOR COVER |
| 89 | 5182840 | SWITCH BOX |
| 5214016 | INCLUDED IN CODE 5214019 | |
| 34 | 5214019 | DRIVING WHEEL |
| 64 | 5214225 | FREE WHEEL |
| 105 | 5401319 | GRADUATE PLATE |
| 9 | 5850005 | BRUSHES SUPPORT |
| 12 | 5850109 | BRUSHES |
| 8 | 5850111 | FAN WITH MAGNETIC RING |
| 87 | 5870843 | CABLE |
| 74 | 5870847 | CABLE |
| 13 | 7013130 | ROTOR |
| 106 | 7130535 | ROD STOP GROUP |
| 139 | 7130670 | VICE GROUP |
| 94 | 7133603 | SWIVEL SUPPORT GROUP |
| 47 | 7213001 | GEAR GROUP |
| 23 | 7213003 | GEAR GROUP |
| 48 | 7213007 | GEAR GROUP |
| 6 | 7820104 | ELECTRONIC SPEED REGULATOR |
| 85 | 7890101 | CLAMP GROUP |
