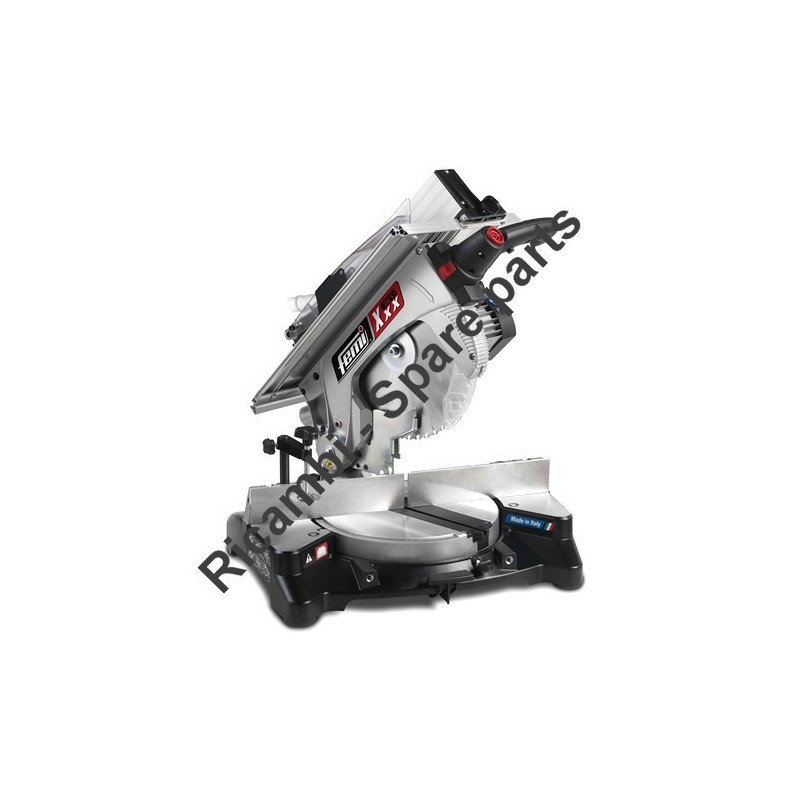

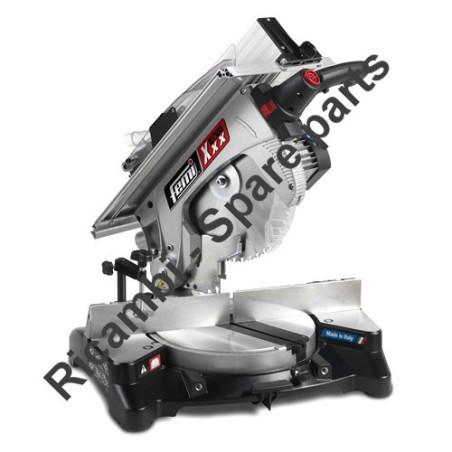

Femi Spare Parts for Miter Saw XXX EVO-8436045
€3.81
Tax included
Femi Spare Parts for Miter Saw XXX EVO-8436045
We are FEMI original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw XXX EVO - 8436045.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Miter Saw XXX EVO-8436045
We are FEMI original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw XXX EVO - 8436045.
In the following table, look for the model of Miter Saw and the respective parts of the code.
| Miter Saw XXX EVO-8436045 | ||
| # | Part Num. | Description |
| 1 | 0320826 | SOCKET HEAD SCREW |
| 2 | 0120308 | WASHER |
| 3 | 0120714 | PLAIN WASHER |
| 4 | 5190313 | BLADE FLANGE |
| 5 | 5154501 | CABLE LOCKING DEVICE |
| 7 | 5182862 | ARM PROTECTION |
| 10 | 5100146 | NUT |
| 11 | 5170001 | PROTECTION LOCKING PIN |
| 12 | 7130706 | BLADE TRASP.PROTECTION WITH LEVERS |
| 13 | 0140084 | KNOB |
| 15 | 0155001 | THICKNESS WASHER |
| 17 | 5182572 | CABLE COVER |
| 18 | 5140063 | UPPER TABLE KNOB |
| 19 | 5152076 | BRAKE RING |
| 20 | 5080129 | SPRING |
| 21 | 5138007 | LEFT HANDLE SUPPORT |
| 22 | 5100147 | NUT |
| 24 | 0526203 | BALL BEARING |
| 26 | 5133008 | RIVING KNIFE PLATE |
| 28 | 0120206 | WASHER |
| 29 | 5182850 | MOTOR COVER |
| 30 | 5182589 | BOX COVER |
| 31 | 5042825 | MITRE SAW ARM |
| 32 | 5183067 | RIVING KNIFE |
| 33 | 5143012 | LOCKING BUTTON |
| 35 | 0106115 | SELF-LOCKING RING NUT |
| 36 | 7013151 | ROTOR |
| 37 | 0802611 | SWITCH |
| 38 | 5050143 | RIGHT HALF GRIP |
| 39 | 5143013 | HEAD RELEASE BUTTON |
| 42 | 5138006 | RIGHT HANDLE SUPPORT |
| 43 | 5050144 | LEFT HANDLE |
| 44 | 7130575 | LINKAGE ASS'Y |
| 45 | 5080130 | SPRING |
| 47 | 0221106 | O-RING SEAL |
| 48 | 5171046 | HEAD PIN |
| 49 | 7801111 | MOTOR BODY |
| 50 | 5190295 | WHEEL FLANGE |
| 51 | 5152066 | BRAKE PIN |
| 52 | 0840028 | CAPACITOR |
| 53 | 0802606 | SWITCH |
| 54 | 5100143 | SPACER |
| 55 | 5081041 | SPRING |
| 57 | 5182853 | CONDENSATOR COVER |
| 58 | 0526201 | BALL BEARING |
| 59 | 5112027 | MOTOR FAN |
| 60 | 5182852 | BOX COVER |
| 61 | 0150635 | CYLINDRIC PIN |
| 63 | 7130701 | COMPLETE VERTICAL CLAMP |
| 64 | 5133691 | MITRE SAW BASE |
| 65 | 5181820 | LOWER PROTECTION |
| 66 | 5137902 | ANGULAR BRACKET |
| 67 | 5001566 | SHAFT |
| 68 | 0596002 | BALL BEARING |
| 69 | 5137895 | JOINT |
| 71 | 5081024 | SPRING |
| 72 | 5181887 | ADDITIONAL PROTECTION |
| 73 | 5130503 | FENCE GUIDE |
| 76 | 5181888 | UPPER PROTECTION |
| 78 | 0400645 | SCREW TTQST 6x45 |
| 79 | 0140083 | WING NUT |
| 82 | 0152330 | ELASTIC PIN |
| 83 | 0140084 | KNOB |
| 84 | 5138012 | UPPER TABLE RACK |
| 85 | 7130709 | UPPER WORKTABLE GROUP |
| 86 | 5130480 | FENCE GUIDE |
| 88 | 5138019 | FRICTION PLATE |
| 89 | 5081012 | SPRING |
| 90 | 0140103 | WING NUT |
| 91 | 7130710 | UPPER FENCE GROUP |
| 92 | 5182541 | COVER |
| 93 | 5130767 | UPPER TABLE REAR GUIDE |
| 94 | 5063038 | BUSHING |
| 97 | 0120708 | PLAIN WASHER |
| 100 | 5181822 | FIX PROTECTION |
| 101 | 5182541 | COVER |
| 102 | 5137894 | SWIVEL SUPPORT |
| 103 | 5080138 | SPRING |
| 104 | 0711528 | CAGE BEARING |
| 105 | 0064002 | BEARING FIFTH WHEEL |
| 106 | 5124063 | WASHER |
| 107 | 5130966 | HOLDER BASE |
| 109 | 5159513 | BASE INDEX |
| 110 | 0147002 | HAND LEVER |
| 111 | 5137793 | REST FOOT |
| 112 | 0140078 | WING NUT |
| 113 | 5142072 | LEVER |
| 114 | 5171023 | SWIVEL SUPPORT PIN |
| 116 | 5181821 | FIX PROTECTION |
| 118 | 5171044 | SWIVEL SUPPORT PIN |
| 119 | 0152630 | SPRING PIN |
| 120 | 5171045 | JOINT PIN |
| 123 | 0174012 | NEEDLE |
| 124 | 5130434 | CAGE |
| 125 | 5064028 | FIFHT WHEEL |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi XXX EVO - 8436045
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
