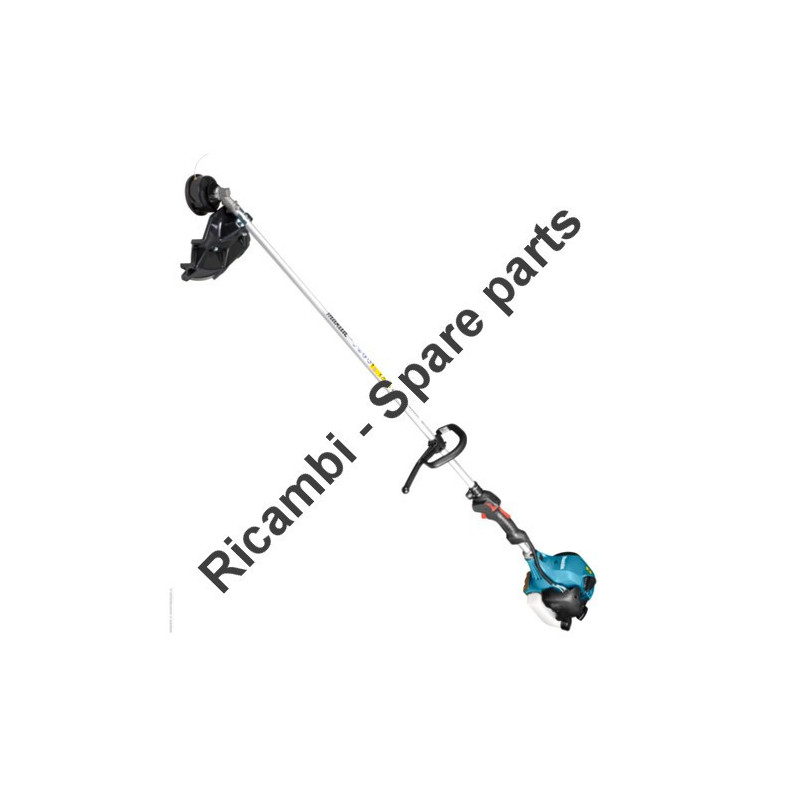

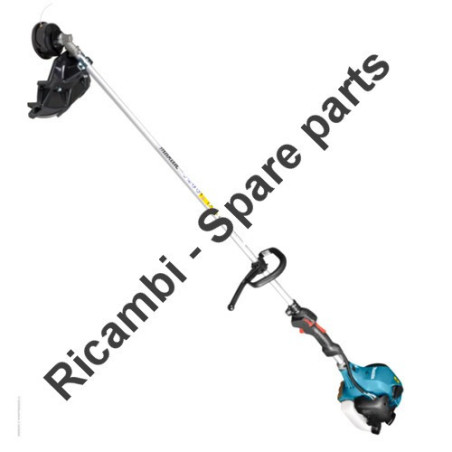

Makita Spare Parts for Brusch Cutter EM2600L
search
  • Makita Spare Parts for Brusch Cutter EM2600L
  • Makita Spare Parts for Brusch Cutter EM2600L
  • Makita Spare Parts for Brusch Cutter EM2600L
  • Makita Spare Parts for Brusch Cutter EM2600L
  • Makita Spare Parts for Brusch Cutter EM2600L

Makita Spare Parts for Brusch Cutter EM2600L

€3.72
Tax included

Makita Spare Parts for Brusch Cutter EM2600L

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM2600L.
ITEM CODE: 5246001210
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Brusch Cutter EM2600L

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter EM2600L.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Makita EM2600L

Brusch Cutter EM2600L Pag.1
# Part Num. Description
1 DA00000379 RECOIL STARTER ASS'Y
2 DA00000380 STARTER PULLEY
3 DA00000096 SCREW
4 DA00000064 SEAL OIL
5 DA00000381 SEAL OIL
6 DA00000382 CARTER 1
7 DA00000383 CARTER 2
8 DA00000384 BEARING
9 DA00000385 PIN
10 DA00000386 ECCENTRIC SHAFT
11 DA00000077 KEY
12 DA00000387 PISTON
13 DA00000388 PISTON RING
14 DA00000073 CAGE ROLLER 8
15 DA00000389 PISTON PIN
16 DA00000071 RING PISTON PIN
17 DA00000390 SEAL CARTER
18 DA00000134 SCREW M5x30
19 DA00000391 SEAL CYLINDER
20 DA00000392 CYLINDER
22 DA00000080 M5X20 SCREW
23 DA00000393 FLYWHEEL
24 DA00000394 IGNITION COIL
25 DA00000395 COIL HOLDER
26 DA00000396 SCREW M4
27 DA00000397 NUT M6
28 DA00000398 WASHER
29 DA00000399 CLUTCH
30 DA00000400 WASHER
31 DA00000401 SCREW CLUTCH
32 DA00000402 CLUTCH DRUM
33 DA00000403 CLUTCH HOUSING
34 DA00000092 ELASTIC RING
35 DA00000405 RUBBER RING
36 DA00000406 UPPER SUPPORT
37 DA00000407 LOWER HOLDER
38 DA00000408 SPACER HIGHER
39 DA00000409 SPACER LOWER
40 DA00000410 SCREW M5x12
41 DA00000411 INSULATING PLATE
42 DA00000412 INTAKE MANIFOLD
43 DA00000413 CABLE MASS
44 DA00000137 SCREW M5x25
45 DA00000414 SEAL CARB
46 DA00000415 INSULATING PLATE
47 DA00000416 SEAL CARB
59 DA00000425 SEAL MUFFLER
60 DA00000426 MUFFLER
61 DA00000427 SCREW M5x50
62 DA00000428 FUEL TANK
63 DA00000122 TANK CAP
64 DA00000117 PIPE L
65 DA00000116 TUBE S
66 DA00000120 CLAMP
67 DA00000523 FUEL FILTER
68 DA00000118 CARBURETOR HOSE GROMMET
69 DA00000429 RUBBER FOOT
70 DA00000430 RUBBER FOOT
71 DA00000432 TAPPING SCREW 4X12
72 DA00000431 HOLDER
73 DA00000433 COVER CYLINDER
74 DA00000435 MUFFLER COVER
124 DA00000447 CARTER 1 + PIN
125 DA00000448 CARTER 1 COMPLETE
126 DA00000449 CARTER 2 COMPLETE
127 DA00000450 CLUTCH HOUSING
153 DA00000459 RETENTION
Brusch Cutter EM2600L Pag.2
3 DA00000096 SCREW
48 DA00000417 CARBURETOR
49 DA00000418 SEAL CARB
50 DA00000419 LEVER AIR
51 DA00000420 PLATE FILTER
52 DA00000421 PLATE LEVER AIR
53 DA00000422 3X10 SCREW
54 DA00000106 PLATE
55 DA00000107 M5X63 SCREW
56 DA00000198 WASHER
57 DA00000423 AIR FILTER
58 DA00000424 AIR CLEANER COVER
128 DA00000452 PLATE AIR FILTER COMPLETE
137 5246001210 SCREW ADJUSTMENT X DBC260U
138 413140-9 WASHER EBH341U
139 5266009020 SCREW X DBC260U
140 257964-1 RETAINING RING E3 EBH341U
141 5266009030 HOLDER CABLE X DBC260U
143 442155-9 SEAL PUMP EBH341U
144 168575-6 DIAPHRAGM PUMP EBH341U
145 5266002010 BODY PUMP X DBC260U
146 352010-6 EBH252L FILTER
147 442154-1 SEAL IRIS EBH341U
148 168620-7 DIAPHRAGM FOR BHX2501
149 140988-3 BODY BREATHER RBC2510
150 424314-7 PUMP PRIMING EBH341
151 346270-0 PUMP COVER EBH341U
152 266582-4 SCREW 3x24 EBH341U
Brusch Cutter EM2600L Pag.3
3 DA00000096 SCREW
44 DA00000137 SCREW M5x25
75 DA00000436 TRASMISSION SHAFT
77 DA00000129 TIE ROD
78 DA00000130 NUT M5
79 DA00000131 HOOK BRETELLA
80 DA00000437 ROD
81 DA00000374 HANDLE
82 DA00000438 HANDLE HOLDER
83 DA00000439 LEVER CONTROLS
90 DA00000144 FLANGE PROTECTION
91 DA00000525 SUPERIOR PROTECTION
92 DA00000142 M6X23 SCREW
93 DA00000143 SCREW M4x14
94 DA00000526 PROTECTOR ASSY
95 DA00000146 SCREW M5x40
96 DA00000148 BLADE
97 DA00000149 SCREW M5x25
98 DA00000150 ELASTIC RING
99 DA00000151 ELASTIC RING
100 DA00000152 BEARING 609ZZ
102 DA00000154 SCREW M6x8
103 DA00000155 GEAR CASE
104 DA00000156 HEAD PROTECTION
105 DA00000157 M6X25 SCREW
106 DA00000158 BEARING 626ZZ
108 DA00000160 6000DDU BEARING
109 DA00000161 ELASTIC RING
110 DA00000162 FLANGE
111 DA00000163 HEAD COVER
112 DA00000164 WASHER HEAD
113 DA00000165 HEAD SPRING
114 DA00000166 ROCCHETTA HEAD
115 DA00000167 NYLON
116 DA00000168 HEAD BASE
118 DA00000170 FLANGE
119 DA00000171 WASHER
120 DA00000172 NUT
129 DA00000453 HEAD ANGLE COMPLETE
130 122979-6 HEAD TAP & GO M8X1,25 100MM DIAM. 2,4MM
171 DA00000378 GEAR CPL
Brusch Cutter EM2600L Pag.4
93 DA00000143 SCREW M4x14
154 DA00000460 HOUSING SX
155 DA00000461 PIN
156 DA00000462 SPRING BAND
157 DA00000463 LEVER SWITCH
158 DA00000464 COVER SWITCH
159 DA00000465 3X16 SCREW
160 DA00000466 TORSION SPRING
161 DA00000467 THROTTLE LEVER
162 DA00000468 TORSION SPRING
163 DA00000469 LOCKOUT LEVER
164 DA00000470 CLAMP 24
165 DA00000471 CABLE HARNESS 1
166 DA00000472 CABLE WIRING 2
167 DA00000473 CONTROL CABLE
168 DA00000474 TUBE
169 DA00000475 HOUSING DX
170 DA00000476 SCREW 4x18
ACCESSORIES Pag.5
500 D-66008 4 Teeth Disc
