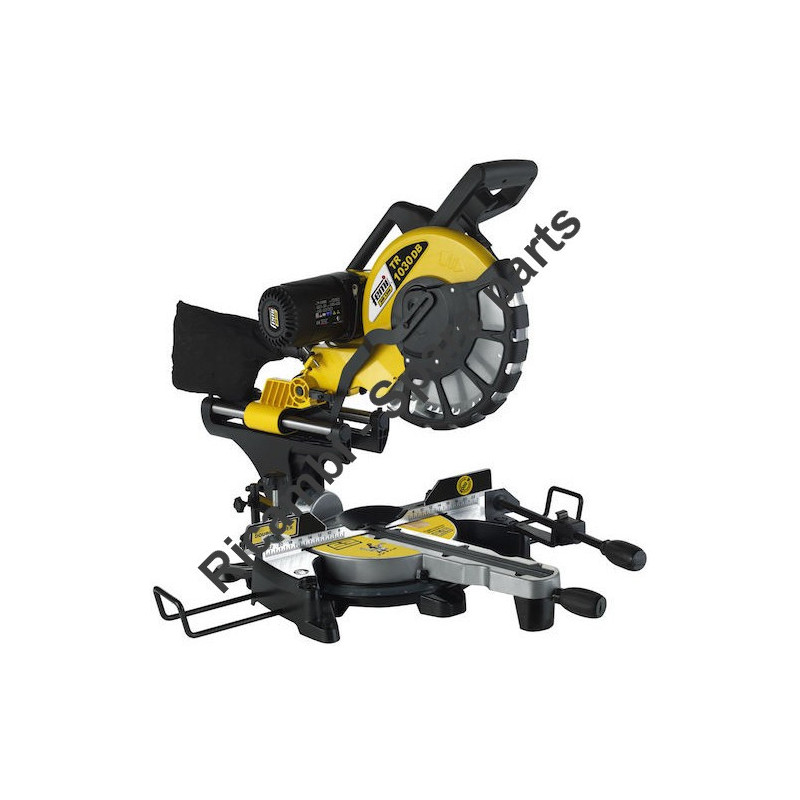

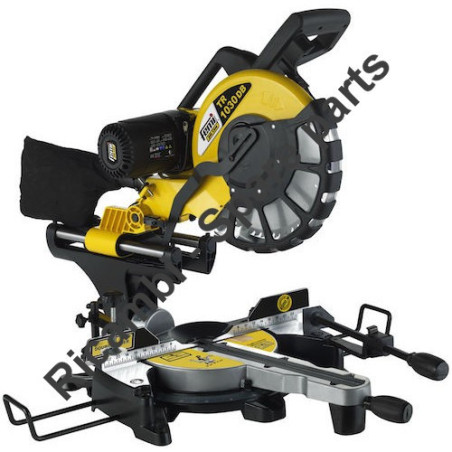

Femi Spare Parts for Sliding Compound Mitre Saw TR 1030 DB
€7.89
Tax included
Femi Spare Parts for Sliding Compound Mitre Saw TR1030DB
FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Slide Compound Mitre Saw TR 1030 DB - 8435021.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Sliding Compound Mitre Saw TR1030DB
FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Slide Compound Mitre Saw TR 1030 DB - 8435021.
In the following table, look for the model of the Sliding Compound Mitre Saw and the respective parts.
| Sliding Compound Mitre Saw Femi TR 1030 DB - 8435021 | ||
| # | Part Num. | Description |
| 4 | F36259DB-4 | BELT COVER |
| 7 | F36259DB-7 | BELT 6PJ526 |
| 11 | F36259DB-11 | BELT PULLEY (BIG) |
| 12 | F36259DB-12 | BELT PULLEY (SMALL) |
| 15 | F36259DB-15 | EXHAUST PORT |
| 20 | F36259DB-20 | LASER SWITCH |
| 21 | F36259DB-21 | LASER SWITCH CAP |
| 28 | F36259DB-28 | TRANSFORMER |
| 29 | F36259DB-29 | TRIGGER |
| 31 | F36259DB-31 | UPPER HANDLE |
| 33 | F36259DB-33 | UPPER HANDLE |
| 35 | F36259DB-35 | SWITCH |
| 36 | F36259DB-36 | IMPUGNATURA INFERIORE |
| 37 | F36259DB-37 | DEPTH OF CUT ADFUST KNOB |
| 41 | F36259DB-41 | MOTOR SUPPORT |
| 43 | F36259DB-43 | BEARING |
| 44 | F36259DB-44 | FAN BAFFLE |
| 45 | F36259DB-45 | STATOR |
| 46 | F36259DB-46 | ARMATURE |
| 47 | F36259DB-47 | BEARING |
| 49 | F36259DB-49 | RUBBER BOOT |
| 50 | F36259DB-50 | MOTOR HOUSING |
| 52 | F36259DB-52 | BRUSH HOLD |
| 53 | F36259DB-53 | BRUSH SPRING |
| 54 | F36259DB-54 | CARBON BRUSHE SET |
| 56 | F36259DB-56 | MOTOR COVER |
| 58 | F36259DB-58 | BLADE LOCKING SCREW |
| 59 | F36259DB-59 | BLADE CLAMP WASHER |
| 61 | F36259DB-61 | BLADE RECIEVE WASHER |
| 63 | F36259DB-63 | GEAR CASE COVER |
| 64 | F36259DB-64 | BEARING 608 ZZ |
| 65 | F36259DB-65 | SHAFT GEAR |
| 66 | F36259DB-66 | PARALLEL KEY 4X4X16 |
| 67 | F36259DB-67 | BEARING 6001 ZZ |
| 68 | F36259DB-68 | KEY 4X10 |
| 69 | F36259DB-69 | SPINDLE |
| 71 | F36259DB-71 | BEARING 6203 2RS |
| 72 | F36259DB-72 | GEAR |
| 73 | F36259DB-73 | BEARING 6203 2RS |
| 74 | F36259DB-74 | FIXED GUARD |
| 75 | F36259DB-75 | DUST PIPE RUN |
| 78 | F36259DB-78 | PLATE GUARDING (BIG) |
| 79 | F36259DB-79 | PLATE GUARDING (SMALL) |
| 80 | F36259DB-80 | MOVING GUARD PLATE |
| 83 | F36259DB-83 | SPRING |
| 84 | F36259DB-84 | CAST CENTRE |
| 85 | F36259DB-85 | SPECIAL SCREW |
| 86 | F36259DB-86 | RIVET |
| 88 | F36259DB-88 | MOVING GUARD |
| 89 | F36259DB-89 | MOVING GUARD COVER |
| 91 | F36259DB-91 | LINKAGE (A) |
| 94 | F36259DB-94 | LINKAGE (B) |
| 95 | F36259DB-95 | TORSION SPRING |
| 96 | F36259DB-96 | SPRING BUSHING |
| 97 | F36259DB-97 | TRENCH DEPTH BRACKET |
| 101 | F36259DB-101 | PIVOT SHAFT |
| 103 | F36259DB-103 | JOINT |
| 104 | F36259DB-104 | LINEAR BEARING |
| 105 | F36259DB-105 | BEARING COVER |
| 107 | F36259DB-107 | LINEAR BEARING |
| 108 | F36259DB-108 | BUSHING RING |
| 109 | F36259DB-109 | KNOB (LONG) |
| 111 | F36259DB-111 | LOCK PIN |
| 112 | F36259DB-112 | ROLLED PIN |
| 113 | F36259DB-113 | PIN SPRING |
| 115 | F36259DB-115 | BEARING COVER |
| 116 | F36259DB-116 | LASER FIXED PLATE |
| 120 | F36259DB-120 | LASER |
| 122 | F36259DB-122 | LASER CASE |
| 123 | F36259DB-123 | LASER WINDOW |
| 125 | F36259DB-125 | ARM |
| 127 | F36259DB-127 | SLIDE |
| 128 | F36259DB-128 | BEVEL LOCK HANDLE |
| 136 | F36259DB-136 | BEVEL SCALE |
| 137 | F36259DB-137 | STRAIGHT CUT SETTING PIN |
| 138 | F36259DB-138 | STUD |
| 139 | F36259DB-139 | STUD |
| 146 | F36259DB-146 | CUTTING INSERT |
| 148 | F36259DB-148 | TURNTABLE |
| 149 | F36259DB-149 | MITER POINTER |
| 154 | F36259DB-154 | KNOB (LONG) |
| 155 | F36259DB-155 | SAFETY FOOT |
| 156 | F36259DB-156 | LOCK BOOT |
| 158 | F36259DB-158 | LOCK BOLT |
| 159 | F36259DB-159 | SUPPORT BAR |
| 160 | F36259DB-160 | LOCK HANDLE |
| 162 | F36259DB-162 | HANDLE COVER |
| 163 | F36259DB-163 | BASE |
| 164 | F36259DB-164 | RUBBER FOOT |
| 165 | F36259DB-165 | MITRE SCALE |
| 171 | F36259DB-171 | SUPPORT BAR |
| 172 | F36259DB-172 | FENCE |
| 174 | F36259DB-174 | LEFT ATTACH FENCE |
| 178 | F36259DB-178 | KNOB (SHORT) |
| 179 | F36259DB-179 | WORKPIECE KNOB |
| 182 | F36259DB-182 | KNOB (SHORT) |
| 183 | F36259DB-183 | KNOB (LONG) |
| 184 | F36259DB-184 | RIGH ATTACH FENCE |
| 189 | F36259DB-189 | LOCK HANDLE COVER |
| 195 | F36259DB-195 | PLATE |
| 204 | F36259DB-204 | CAPACITOR |
| 207 | F36259DB-207 | SHIELD LOCK PIECE |
| 208 | F36259DB-208 | SHIELD LOCK SHEET |
| 209 | F36259DB-209 | SPRING |
| 216 | F36259DB-216 | COMPLETE VICE |
| 218 | F36259DB-218 | VERTICAL CLAMP |
| 220 | F36259DB-220 | DUST BAG |
| 500 | TR1030DB-500 | COMPLETE MOTOR |
| 501 | TR1030DB-501 | COMPLETE BLADE PROTECTION SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR1030DB - 8435021
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
