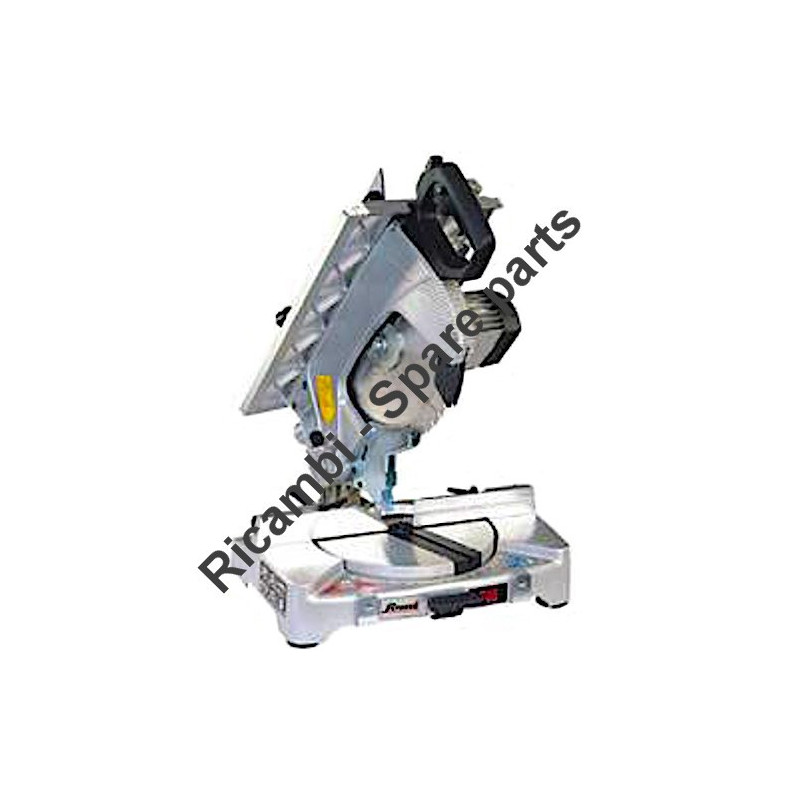

Femi Spare Parts for Wood Mitre Saw 746 - 8430022
€133.82
Tax included
Femi Spare Parts for Wood Mitre Saw 746 - 8430022
FEMI service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wood Mitre Saw 746 - 736 ALU.8.43.00.22 - 8.43.20.22.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Wood Mitre Saw 746 - 8430022
FEMI service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wood Mitre Saw 746 - 736 ALU.8.43.00.22 - 8.43.20.22.
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| WOOD MITRE SAW 746 - 736 ALU.8.43.00.22 - 8.43.20.22 | ||
| # | Part Num. | Description |
| 1 | 4130420 | UPPER WORK TABLE |
| 2 | M6X16 UNI 7984 | |
| 3 | 5401416 | GRADUATE PLATE |
| 4 | 5044026 | SIDE CAP R |
| 5 | 5044027 | SIDE CAP L |
| 6 | 5130421 | SQUARE |
| 7 | 0100706 | |
| 8 | 5871040 | CABLE |
| 9 | M6X20 UNI 5931 | |
| 10 | 5130417 | SIDE CLAMP |
| 11 | M6xX16 UNI 5931 | |
| 12 | 5130433 | SIDE GUIDE |
| 13 | 5130432 | BRACKET |
| 14 | 0107004 | WING NUT |
| 15 | M5X16 UNI 5931 | |
| 16 | 5100143 | SPACER |
| 17 | 7130575 | LEVERS GROUP |
| 18 | 5183067 | RIVING KNIFE |
| 19 | 5080130 | SPRING |
| 20 | 5182852 | BOX COVER |
| 21 | 5154501 | CABLE LOCKING DEVICE |
| 22 | P8X22 UNI 6954 | |
| 23 | M5X10 DIN 7500 | |
| 24 | 7820119 | ELECTRONIC BRAKE CARD |
| 25 | P6X9,5 UNI 6954 | |
| 26 | 5182539 | COVER |
| 27 | 5181682 | UPPER PROTECTION |
| 28 | 0400408 | |
| 29 | 5182540 | CABLE PROTECTION |
| 30 | M6 UNI 5588 | |
| 31 | M6X25 | |
| 32 | 0106115 | SELF-LOCKING RING NUT |
| 33 | D14 UNI 6592 | |
| 34 | 5182862 | ARM PROTECTION |
| 35 | 5130767 | UPPER TABLE REAR GUIDE |
| 36 | P6X9,5 UNI 6954 | |
| 37 | 5181666 | LOWER PROTECTION |
| 38 | 5133008 | RIVING KNIFE PLATE |
| 39 | D6 UNI 1751 | |
| 40 | 0140070 | KNOB |
| 41 | 5100147 | NUT |
| 42 | 5120655 | SPACER |
| 43 | 0151136 | SNAP RING |
| 44 | 0155148 | THICKNESS WASHER |
| 45 | 0526203 | BALL BEARING |
| 46 | 0151040 | SNAP RING |
| 47 | 0400509 | |
| 48 | 0840028 | CAPACITOR |
| 49 | 7801068 | MOTOR BODY |
| 50 | 5130798 | REAR GUIDE |
| 51 | 5042761 | (included into code 5042825+0161103) |
| 52 | 0140084 | KNOB |
| 53 | 5182850 | MOTOR COVER |
| 54 | 0400410 | |
| 55 | 0151512 | ELASTIC RING |
| 56 | 5112027 | MOTOR FAN |
| 57 | 0526201 | BALL BEARING |
| 58 | P8X22 UNI 6954 | |
| 59 | P8X32 UNI 6954 | |
| 60 | 5050126 | HANDLE GRIP ASS'Y (5050145+5050146+5143018 ) |
| 61 | M5x55 UNI 5931 | |
| 62 | 0802611 | SWITCH |
| 64 | 5143007 | (included into code 5143015) |
| 65 | 5081022 | SPRING |
| 66 | 5143009 | (included into code 5143016) |
| 67 | 5143006 | (included into code 5143014) |
| 68 | 5050127 | (included into code 5050145+5050146+5143018 ) |
| 69 | 7013140 | ROTOR |
| 70 | 5061037 | BLADE BUSHING |
| 71 | 7130585 | LEVER AND PROTECTION GROUP |
| 72 | 0120714 | PLAIN WASHER |
| 73 | D8 DIN 6798 | |
| 74 | 0320826 | SOCKET HEAD SCREW |
| 75 | 5182853 | CONDENSATOR COVER |
| 76 | 5080129 | SPRING |
| 77 | 5130797 | FRONT GUIDE |
| 78 | 5080122 | SPRING |
| 79 | 5130766 | UPPER TABLE FRONT GUIDE |
| 80 | 5401404 | GRADUATE PLATE |
| 81 | 5170001 | PROTECTION LOCKING PIN |
| 82 | 5100146 | NUT |
| 83 | 7130585 | LEVER AND PROTECTION GROUP |
| 84 | ||
| 85 | 0151405 | SNAP RING |
| 86 | 5081016 | SPRING |
| 87 | 5141009 | ADJUSTING HANDWHEEL |
| 88 | M8X25 UNI 5931 | |
| 89 | 5181665 | (included into code 5181881) |
| 90 | M8 UNI 7473 | |
| 91 | 5181670 | MOBILE PROTECTION |
| 92 | M8X16 UNI 5739 | |
| 93 | 0155150 | THICKNESS WASHER |
| 94 | 5001560 | JOINT SHAFT |
| 95 | 5155157 | RUBBER DAMPER |
| 96 | 5137872 | JOINT |
| 97 | 5159506 | JOINT INDEX |
| 98 | ||
| 99 | 0101108 | |
| 100 | ||
| 101 | 0080256 | SPRING WASHER |
| 102 | 5063031 | BUSHING |
| 103 | 5124051 | RING |
| 104 | 5080135 | SPRING |
| 105 | 5181669 | (included into code 5181822) |
| 106 | M5X10 UNI 5933 | |
| 107 | 0147006 | HAND LEVER |
| 108 | 5120646 | SPACER |
| 109 | 0450880 | TIE ROD |
| 110 | M8 UNI 5588 | |
| 111 | 5181673 | PROTECTION |
| 112 | M6 UNI 5588 | |
| 113 | M6X20 UNI 5737 | |
| 114 | 5170530 | JOINT PIN |
| 115 | 0150319 | (included into code 5181821) |
| 116 | 5181668 | (included into code 5181821) |
| 117 | M6X30 | |
| 118 | 0063035 | BUSHING |
| 119 | 0311045 | |
| 120 | 5137848 | SWIVEL SUPPORT |
| 121 | 0147007 | HAND LEVER |
| 122 | 0151116 | SNAP RING |
| 123 | 5121552 | SPACER |
| 124 | 5137793 | REST FOOT |
| 125 | M5X16 UNI 5931 | |
| 126 | 5133003 | SLIDING BRACKET |
| 127 | 5142072 | LEVER |
| 128 | 5171023 | SWIVEL SUPPORT PIN |
| 129 | 0152319 | ROLL PIN |
| 130 | 5081012 | SPRING |
| 131 | 5401349 | GRADUATE PLATE |
| 132 | ||
| 133 | 5401417 | GRADUATE PLATE |
| 134 | 5133680 | (not more available) |
| 135 | 0101110 | |
| 136 | D10 UNI 6592 | |
| 137 | 0080258 | SPRING WASHER |
| 138 | 5121551 | SPACER |
| 139 | 0140084 | KNOB |
| 140 | 0400401 | |
| 141 | 5182544 | COVER |
| 142 | 7130624 | JOINT ASSY |
| * | 7130503 | (included into code 7130661 or 7130657) |
| 144 | 5190295 | WHEEL FLANGE |
