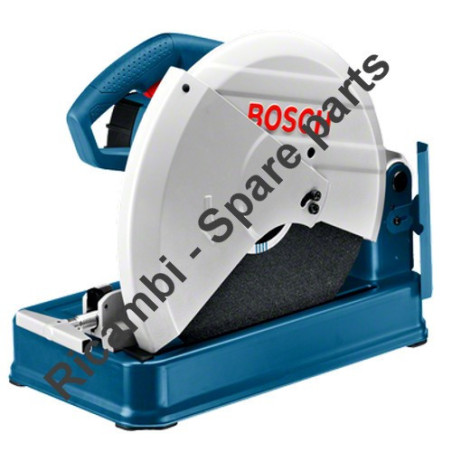

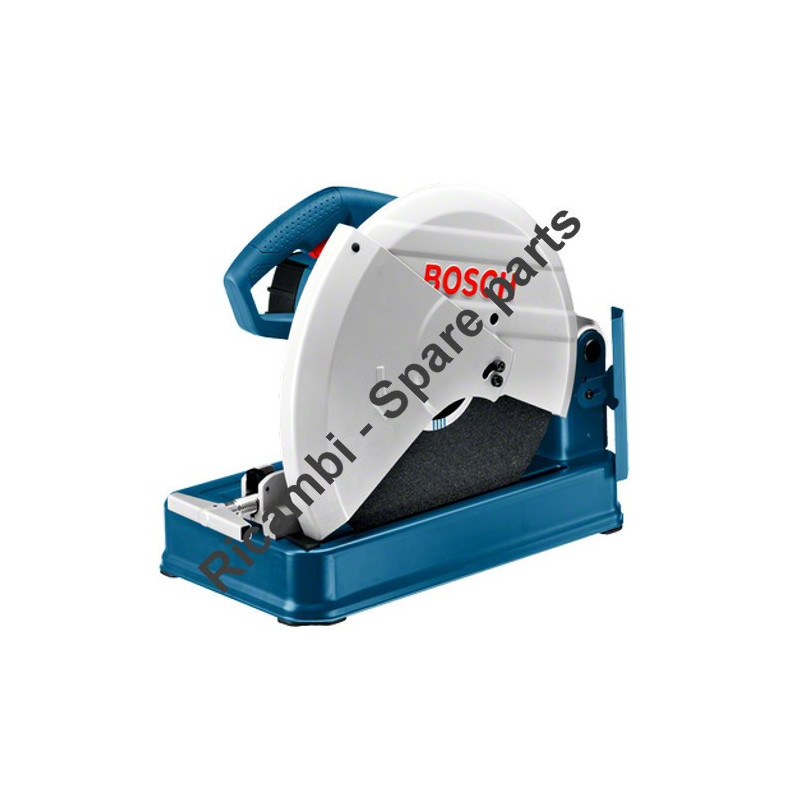

Bosch Spare Parts for Cutoff Saw GCO 2000
€2.35
Tax included
Bosch Spare Parts for Cutoff Saw GCO 2000
Fix Your Cutoff Saw GCO 2000/3 601 L17 200. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Cutoff Saw GCO 2000
Fix Your Cutoff Saw GCO 2000/3 601 L17 200. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Cutoff Saw and the respective parts of the code.
| Cutoff Saw GCO 2000/3 601 L17 200 | ||
| # | Part Num. | Description |
| 1 | 1609B00028 | Motor Housing |
| 2 | 1609B00001 | Field 230V |
| 4 | 1609B00002 | Switch |
| 5 | 1609B00003 | Power supply cord EU 4,45m 2 x 1,00mm H07 RN-F |
| 6 | 1619P03807 | Grommet |
| 7 | 1619P03808 | Cable Clip |
| 9 | 1609B00038 | Sticker GCO 2000 |
| 12 | 1619P03883 | Suppression Capacitor |
| 18 | 1619P03837 | Raised ctsunk head tap sc |
| 20 | 1609B00006 | Warning Plate |
| 22 | 1619P03741 | End cap |
| 23 | 1609B00008 | Arm |
| 25 | 1619P03814 | Rubber Bar |
| 26 | 1619P03825 | Screw and washer assembly M5x16 |
| 27 | 1609B00031 | Stop Bracket |
| 28 | 1619P03826 | Flange Bolt DIN 6921-M10x20-8.8 |
| 29 | 1619P03753 | Clamp Screw |
| 30 | 1609B00032 | Clamp Bracket |
| 31 | 1619P03756 | Rivet Pin DIN 94-4x22 |
| 32 | 1619P03748 | Locking Pin |
| 33 | 1619P03757 | Plain Washer DIN 433-10 |
| 35 | 1619P03755 | Spring retaining ring DIN 471-18 |
| 37 | 1619P03751 | Clamp Handle |
| 38 | 1619P03752 | Spring Pin ISO 1337 4x18 |
| 39 | 1600206030 | Rubber Ring |
| 40 | 1609B03576 | Clamping Block |
| 41 | 1609B00009 | Flange |
| 42 | 1609B00033 | Connecting Rod |
| 43 | 1619P03735 | Flange Bolt DIN 6921 M 10x20-10.9 |
| 44 | 1619P03762 | Spring Pin ISO 13337-4x35 |
| 46 | 1619P03827 | Socket head cap screw ISO 4762-M 8x20-8.8 |
| 47 | 1609B00010 | Base |
| 48 | 1619P03828 | Plain Washer DIN 125 A8 |
| 49 | 1619P03829 | Spring Washer DIN 127 B8 |
| 51 | 1619P03811 | Shaft |
| 52 | 1619P03810 | O-Ring 4,5x1,8 |
| 53 | 1619P03809 | Cap Nut |
| 54 | 1619P03818 | Holding Bracket |
| 55 | 1609B00021 | Protective Cover |
| 56 | 1619P03830 | Hexagon Bolt DIN 933-M8x30-8.8 |
| 57 | 1619P03831 | Hex Nut DIN 934-M8-8 |
| 58 | 1619P03835 | Thread-forming tap. Screw DIN 7500 C-M6x35 |
| 59 | 1619P03868 | Handle |
| 62 | 1619P03832 | Screw ECO-SYN St3x12 |
| 63 | 1619P03822 | Air-Deflector Ring |
| 64 | 1619P03823 | Pickup Clip |
| 67 | 1619P03833 | Screw ECO-SYN St 3,5x16 |
| 68 | 1619P03834 | Screw ECO-SYN St3,5x10 |
| 69 | 1619P03840 | Screw ISO 4762-M6x8-8.8 |
| 71 | 1619P03841 | Spring Washer DIN 127 B6 |
| 72 | 1619P03839 | Stop Screw ISO 4027-M 5x8-45H |
| 73 | 1619P03816 | Pivot Shaft |
| 74 | 1609B00024 | Torsion Spring |
| 75 | 1619P03817 | Compression Spring |
| 77 | 1619P03806 | Gear Cover |
| 78 | 1619P03815 | Plain Washer |
| 79 | 1619P03825 | Screw and washer assembly M5x16 |
| 81 | 1619P03856 | Plain Washer |
| 82 | 1619P03857 | Shoulder Screw |
| 83 | 1619P03871 | Rubber Gasket |
| 84 | 1609B00023 | Protection cover |
| 85 | 1619P03842 | Screw M 5x8-4,8 |
| 86 | 1619P03824 | Raised ctsunk head tap sc |
| 87 | 1619P03821 | Screw M5x25-4,8 |
| 88 | 1619P03819 | Nut ISO 4035-M5-04 |
| 89 | 1619P03855 | Insulating Tube |
| 91 | 1619P03812 | Adjusting Wrench |
| 94 | 1619P03866 | Spring Washer |
| 96 | 1609BP7059 | Connection Block |
| 98 | 1609B00039 | Bushing |
| 99 | 1619P03931 | Ring |
| 101 | 1609B00018 | Spring Washer |
| 111 | 1609B00060 | O-Ring |
| 112 | 1609B00061 | O-Ring |
| 803 | 1609B00046 | Armature 220-240V |
| 803/13 | 1619P03850 | Bearing 608-2RS |
| 803/14 | 1619P03937 | groove ball bearing |
| 808 | 1609B00005 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 1607000480 | Carbon-Brush Set 10 x 1 607 014 171 | |
| 816 | 1604336048 | Brush Holder |
| 834 | 1619P03912 | Gear Shaft |
| 845 | 1609B03533 | Bearing Block |
| 880 | 1609B00041 | Flap Guard |
| 895 | 1609B00017 | Soft Start-Up Module |
