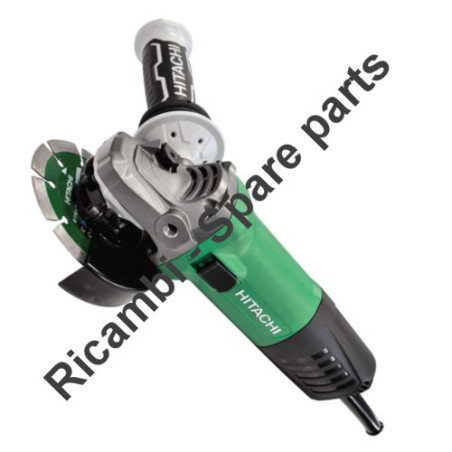

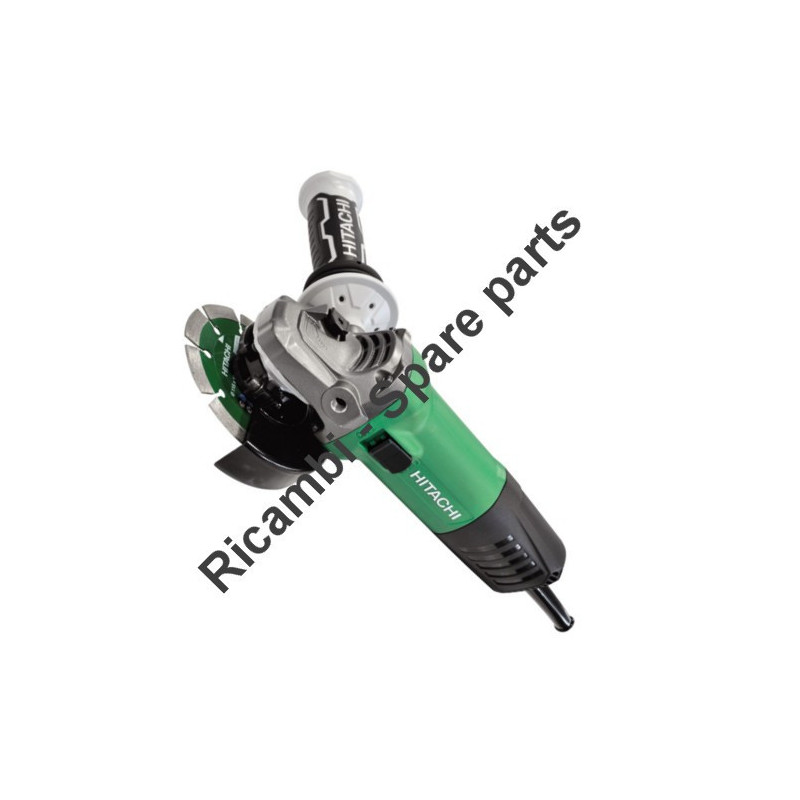

Hitachi Spare Parts for Angle Grinder G12SW
€4.18
Tax included
Hitachi Spare Parts for Angle Grinder G12SW
Hitachi-HIKOKI original spare parts, sourced from the manufacturer, for to make maintenance or repair damaged parts for Angle Grinder G 12SW with efficient and professional After Sales Service.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Angle Grinder G12SW
Hitachi-HIKOKI original spare parts, sourced from the manufacturer, for to make maintenance or repair damaged parts for Angle Grinder G 12SW with efficient and professional After Sales Service.
In the following table , look for the model of the grinder and the ripettivo spare part.
| Angle Grinder 115 mm S 12SW | ||
| # | Part Num. | Description |
| 1 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 2 | 336535 | PUSHING BUTTON |
| 3 | 336870 | GEAR COVER ASS'Y |
| 4 | 301941 | SPECIAL NUT M7 |
| 5 | 308543 | SEAL RING (A) |
| 6 | 980866 | WASHER (C) |
| 7 | 629VVM | BALL BEARING 629VVC2PS2L |
| 8 | 939554 | RETAINING RING FOR D26 HOLE (10 PCS.) |
| 9 | 336542 | DIFFUSER |
| *10 | 360970E | ARMATURE 230V |
| 11 | 336530 | FAN GUIDE |
| *12 | 340870E | STATOR 230V |
| 13 | 336536 | DUST SEAL |
| 14 | 336871 | BALL BEARING 698SS |
| 15 | 309929 | RUBBER BUSHING |
| 16 | 939542 | RETAINING RING FOR D12 SHAFT (10 PCS.) |
| 17 | 991207 | SEAL LOCK SCREW (W/SP. WASHER) M4X8 |
| 18 | 316490 | BEARING COVER |
| 19 | 6201VV | BALL BEARING 6201VVCMPS2L |
| 20 | 301946 | FELT PACKING |
| 21 | 336538 | PACKING GLAND |
| 22 | 307127 | SEAL LOCK SCREW (W/SP. WASHER) M4X12 |
| *23 | 336539 | SPINDLE |
| *23 | 336543 | SPINDLE |
| 25 | 311744 | SET PIN |
| 26 | 316107 | HEX. SOCKET HD. BOLT (W/WASHERS) M5X20 |
| 27 | 311491 | SET PIECE (B) |
| 28 | 874759 | RETAINING RING (E-TYPE) FOR D2.5 SHAFT |
| 29 | 311745 | WHEEL GUARD ASS'Y (TOOLLESS TYPE) |
| *30 | 937817Z | WHEEL WASHER |
| *30 | 310338 | SUPER WASHER |
| *30 | 319373 | WHEEL WASHER |
| 31 | 316821 | D. C. WHEELS 115MM A36Q (25 PCS.) |
| *32 | 994324 | WHEEL NUT M14 |
| *32 | 937923P | WHEEL NUT 5/8"-11UNC |
| 32A | 337329 | WHEEL NUT M14 |
| 33 | 301943 | LOCK PIN |
| 34 | 336531 | GEAR SET |
| 35 | 336537 | BRUSH HOLDER |
| 36 | 336541 | HOUSING |
| 37 | 999088 | CARBON BRUSH (1 PAIR) |
| 38 | 328210 | TAPPING SCREW D3X8 |
| 39 | 336872 | CUSHION SPONGE |
| 41 | 930039 | NOISE SUPPRESSOR |
| 42 | 980063 | TERMINAL |
| 43 | 314603 | SWITCH (1P SOLDER TYPE) |
| 44 | 980060 | MACHINE SCREW (W/WASHER) M3.5X5 |
| 45 | 336873 | INTERNAL WIRE |
| *46 | 980063 | TERMINAL |
| *46 | 930804 | TERMINAL M4.0 (10 PCS.) |
| 47 | 938307 | PILLAR TERMINAL |
| 48 | 937631 | CORD CLIP |
| 49 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 50 | 975144 | CABLE TIE |
| 51 | 336533 | SLIDE SWITCH KNOB |
| 52 | 336534 | SLIDE BAR |
| 53 | 314429 | SPRING |
| *54 | 953327 | CORD ARMOR D8.8 |
| *54 | 938051 | CORD ARMOR D10.1 |
| 55 | 336532 | TAIL COVER |
| 56 | 307811 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
