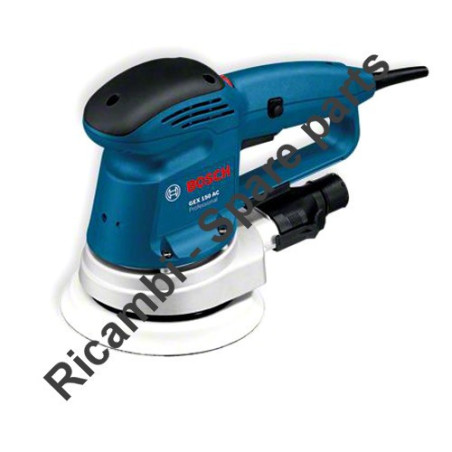

Bosch Parts for Random Orbital Sander GEX 150 TURBO
€3.09
Tax included
Bosch Parts for Random Orbital Sander GEX 150 TURBO
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander GEX 150 TURBO - 0601250703.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Parts for Random Orbital Sander GEX 150 TURBO
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander GEX 150 TURBO - 0601250703.
In the following table, look for the model of the Orbital Sander and the respective parts of the code.
| GEX 150 TURBO/0 601 250 703 | ||
| # | Part Num. | Description |
| 1 | 1619P09772 | Motor Housing |
| 2 | 1604220328 | Field 220-240V |
| 3 | 1604010626 | Armature 220-240V |
| 3/50 | 1606610141 | Fan |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9x95 MM |
| 7 | 1601302017 | Fastening Clamp |
| 9 | 2601116002 | Manufacturer's nameplate |
| 12 | 2609120008 | Suppression Filter |
| 13 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 1619P11240 | Deep-Groove Ball Bearing |
| 16 | 1604336035 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 21 | 2605806438 | Gear Housing |
| 22 | 1602319009 | Adjusting Slide |
| 23 | 1602026068 | Switch Handle BLACK |
| 25 | 2605500167 | Housing Cover |
| 26 | 1600502024 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591023 | Air-Deflector Ring |
| 30 | 2601328071 | Air-Deflector Ring |
| 37 | 1600100033 | Cover Disc |
| 39 | 2609110149 | Bevel Gear |
| 41 | 2600917003 | Needle bearing Ø8x8 MM |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P02537 | Screw and washer assembly |
| 50 | 2910611020 | Tapping Screw DIN 7981-ST3,9x19-C-H |
| 51 | 1607233167 | Speed governor 230-240V |
| 55 | 2910611022 | Tapping Screw DIN 7981-ST3,9x25-C-H |
| 57 | 2910641081 | Oval-Head Screw DIN7985-M3,5x5-4.8-H |
| 90 | 2607329147 | Suppression Filter |
| 110 | 2601119008 | Reference Plate |
| 111 | 3600210136 | O-Ring 42,0x1,0 MM |
| 112 | 1600136016 | Shim 0,1 MM THICK |
| 1600136017 | Shim 0,2 MM THICK | |
| 114 | 2601990030 | Changeover Lever |
| 115 | 2604601089 | Compression Spring |
| 124 | 2600206019 | Friction Ring |
| 125 | 2608601106 | Backing Pad Ø150 |
| 127 | 2910130240 | Hex Socket Head Cap Screw DIN 7984-M8x18-8.8 |
| 128 | 2601015087 | Seal |
| 129 | 2603435042 | Thread-forming tap. Screw |
| 130 | 2603435083 | Thread-forming tap. Screw |
| 131 | 2601328072 | Suction Tube |
| 133 | 2910141203 | Hex Socket Head Cap Screw DIN 912-M6x25-8.8 |
| 135 | 2604421013 | Torx Flat-Head Screw |
| 136 | 2600015008 | Seal ring |
| 137 | 3600210101 | O-Ring 5,0x1,0 MM |
| 140 | 2603102010 | Crank Rod |
| 142 | 2608012010 | Counterweight |
| 143 | 2602026115 | Control Lever RED |
| 655 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 656 | 2602025067 | Auxiliary Handle M10, Ø32,5x105 MM |
| 657 | 1619P06843 | Key Holder |
| 804 | 1607200146 | Switch |
| 805 | 1607000385 | Power supply cord EU 2,6m 2 x 1,0 mm |
| 808 | 2601116001 | Nameplate |
| 810 | 1607014145 | Carbon-Brush Set |
| 819 | 2606316902 | Pinion |
| 821 | 2606319903 | Toothed Belt Wheel |
| 832 | 3607031724 | Assembly Of Service Parts |
| 838 | 2605806890 | Gear Housing |
| 840 | 2603102012 | Crank Rod |
| 844 | 2602026106 | Cap-Handle |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GEX 150 TURBO - 0601250703
10 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
