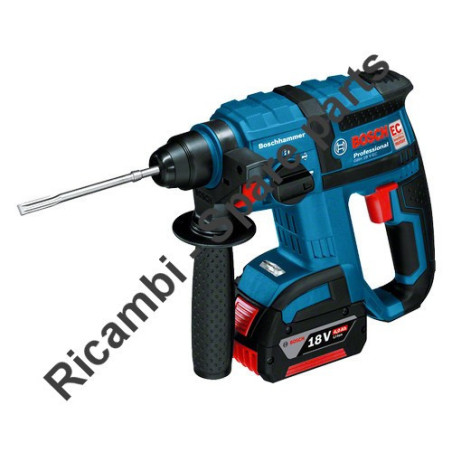

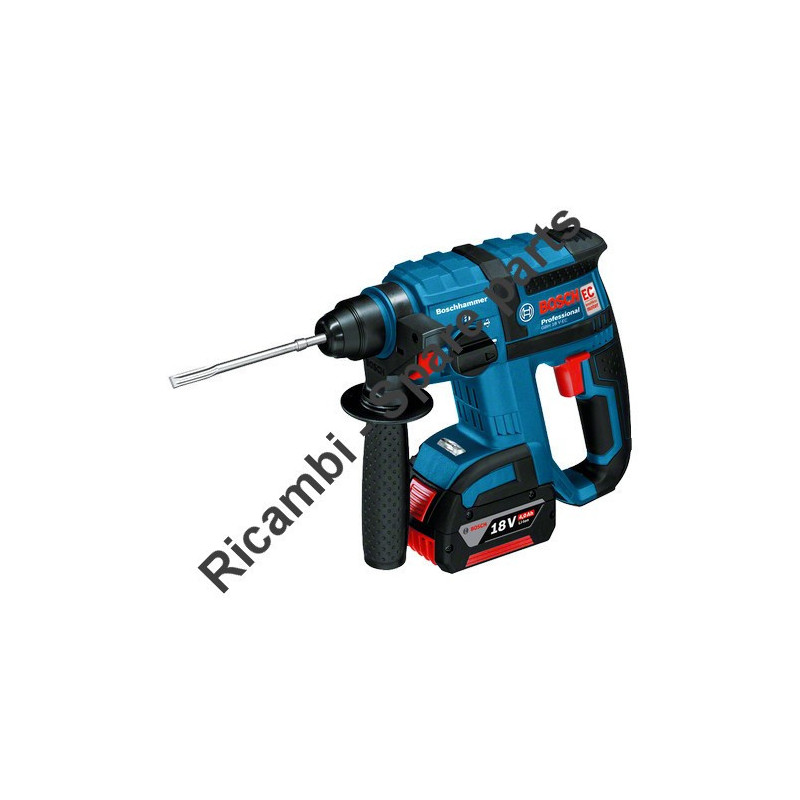

Bosch Spare Parts for Cordless Hammer GBH 18 V-EC
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer GBH 18 V-EC - 3611J04000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Cordless Hammer GBH 18 V-EC
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer GBH 18 V-EC - 3611J04000.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Cordless Hammer GBH 18 V-EC/3 611 J04 000 | ||
| # | Part Num. | Description |
| 1 | 1615104066 | Housing Section |
| 3 | 1610499067 | Centering Sleeve |
| 4 | 1607233376 | Electronics Module |
| 5 | 1609280477 | Compression Spring |
| 9 | 1611110W66 | Manufacturer's nameplate GBH 18 V-EC |
| 10 | 1611110W67 | Manufacturer's nameplate GBH 18 V-EC |
| 11 | 1611110W68 | Reference Plate |
| 16 | 1610102637 | Supporting Disc 12x38x0,5 |
| 17 | 1611015062 | Sealing Frame |
| 18 | 1610290116 | Seal ring |
| 21 | 1617000667 | Hammer Pipe |
| 21/23 | 1616317084 | Cylindrical Gear |
| 21/28 | 1613124084 | Striker Pin |
| 21/31 | 1614601053 | Retaining ring |
| 21/34 | 1610508051 | Rubber Bushing |
| 21/37 | 1610551008 | Holding Plate |
| 21/39 | 1614601055 | Retaining ring |
| 21/40 | 1613100032 | Straight Pin |
| 21/41 | 1610102072 | Ratchet Disc |
| 21/46 | 1614630003 | Compression Spring |
| 21/47 | 1610905039 | groove ball bearing |
| 21/48 | 1614601054 | Retaining ring |
| 21/50 | 1610400039 | Guide Bushing |
| 21/60 | 1610190054 | Support Disc |
| 24 | 16170006EU | Jack Shaft |
| 32 | 1612026114 | Switch Button |
| 43 | 1610499080 | Protection Sleeve |
| 44 | 1610508052 | Protective Cap |
| 51 | 1619P01787 | Shift Plate |
| 53 | 1619P00828 | Pressure Disc |
| 54 | 1613100033 | Guide Rod |
| 59 | 1610102045 | Friction Washer 1,0 MM THICK |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1613435036 | Torx Oval-Head Screw 3,5x16 |
| 72 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 74 | 1613231031 | Shift Plate |
| 83 | 2603100056 | Rubber Buffer |
| 84 | 1613231029 | Switch Slide |
| 87 | 1614601077 | Spring retaining ring |
| 90 | 1600A00071 | Lens |
| 120 | 160202508X | Auxiliary Handle |
| 120/120 | 1612025058 | Auxiliary Handle M8 BLACK |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8x40 MM |
| 120/802 | 1617000475 | index turning toolholder |
| 326/26 | 1618700083 | Hammer Piston |
| 326/29 | 1613100034 | Piston Pin |
| 326/38 | 1610100016 | Guide Disc |
| 326/56 | 1610210244 | O-Ring 13,0x3,0 MM |
| 333/32/1 | 1610210185 | O-Ring 16,5x2,0 MM |
| 651 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 653 | 2607336235 | Slide-In Accu Package BBS MR 18V, 3,0Ah, LI |
| 653 | 2607336815 | Slide-In Accu Package BBS MR 18V, 4,0Ah, LI |
| 653 | 2607337069 | Battery Pack BBS MR, 18V, 5,0 Ah LI |
| 654 | 2607225333 | Fast Charger ROK 220/10,8-18V, 30 MIN |
| 654 | 2607225323 | Charger GB 230/10,8-18V, 30 MIN |
| 654 | 2607225321 | Charger EU 230/10,8-18V, 30 MIN |
| 654 | 2607225923 | Charger GB GAL 1880 14,4-18V/230V |
| 654 | 2607225921 | Charger EU GAL 1880 14,4-18V/230V |
| 802 | 16170006BG | DC motor 18V |
| 808 | 1601106040 | Nameplate 26x42 MM |
| 812 | 1617000665 | Planetary Gear Train |
| 820 | 16170006BH | Intermediate Flange |
| 827 | 1617000669 | Striker |
| 833 | 16170006EW | Clamp Handle |
| 844 | 16170006D3 | Protection Sleeve |
| 852 | 1614690010 | Coiled Spring |
| 891 | 1609280478 | Contact retainer |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
