Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR
€3.11
Tax included

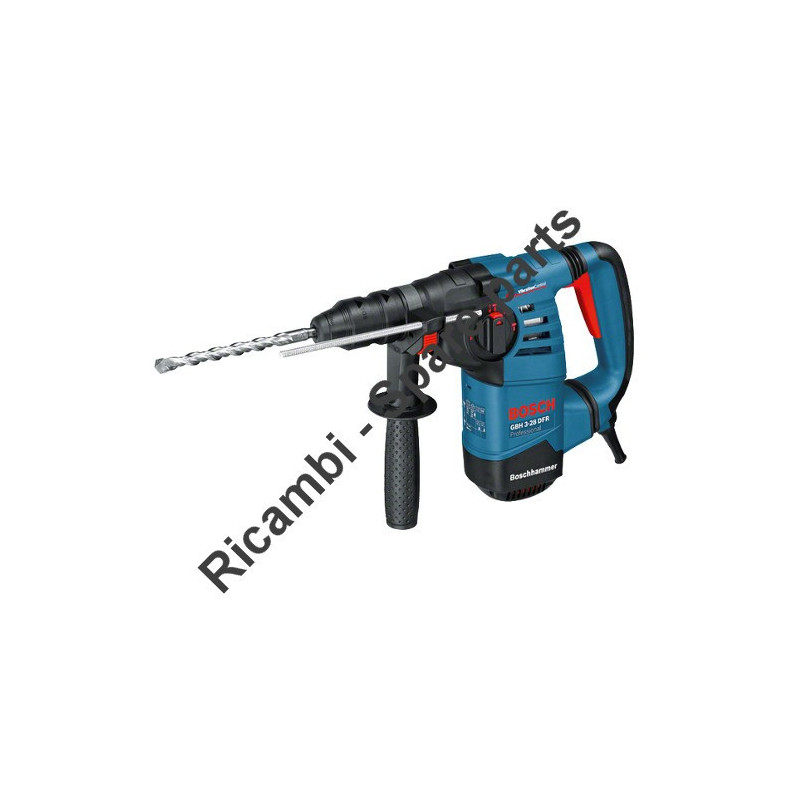

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR
Bosch genuine spare parts or replacements parts for to repair Rotary Hammer Bosch GBH 3-28 DFR - 3611B4A000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)

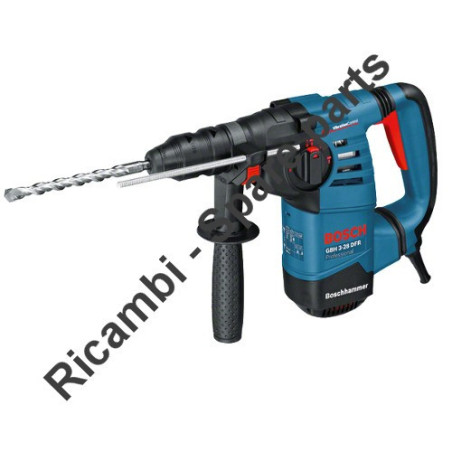

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR
Bosch genuine spare parts or replacements parts for to repair Rotary Hammer Bosch GBH 3-28 DFR - 3611B4A000.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Rotary Hammer Bosch GBH 3-28 DFR/3 611 B4A 000 | ||
| # | Part Num. | Description |
| 2 | 1614220117 | Field 230V |
| 42493 | 1616610104 | Fan |
| 3/13 | 1610905032 | groove ball bearing 7x19x6 |
| 42464 | 1617200127 | Switch |
| 42525 | 1600703034 | Grommet Ø7,3-Ø8,6x66 MM |
| 4/101 | 1614490015 | Connecting Cable |
| 4/102 | 1614490016 | Connecting Cable |
| 7 | 1601302017 | Fastening Clamp |
| 9 | 1611110Z42 | Manufacturer's nameplate GBH 3-28 DFR |
| 11 | 1611110Z43 | Reference Plate |
| 14 | 1610905044 | groove ball bearing |
| 16 | 1614336064 | Brush Plate |
| 17 | 1614465011 | Suppression Filter |
| 19 | 1611329024 | Switch Contact |
| 26 | 16170006A5 | Hammer Piston |
| 26/27 | 1610311019 | Striker |
| 26/29 | 1613105020 | Piston Pin |
| 26/56 | 1610210121 | O-Ring 17,0x3,0 MM GREEN |
| 26/71 | 1610100016 | Guide Disc |
| 32 | 1612026151 | Clamp Handle BLACK |
| 32/20 | 1614690009 | Driver Pin |
| 32/30 | 1612026035 | Switch Button RED |
| 32/40 | 1610210046 | O-Ring 10,5x2,7 MM |
| 32/50 | 1614611006 | Compression Spring |
| 39 | 1615808102 | Gear Cover BLUE |
| 45 | 1610591046 | Air-Deflector Ring |
| 47 | 1610283047 | Rotary shaft lip seal |
| 48 | 1610290102 | Bearing Ring |
| 48/1 | 1610210208 | O-Ring 24,0x2,0 MM |
| 49 | 1615700044 | End Shield |
| 52/18 | 1610290098 | Clutch Sleeve |
| 52/52 | 1615108154 | Cover BLACK |
| 53 | 1610210245 | O-Ring |
| 54 | 1600502023 | Intermediate Ring |
| 55 | 1610210206 | Seal ring 63,0x5,0 MM |
| 63/63 | 1610910063 | Needle bearing Ø30xØ37x12 MM |
| 63/64 | 1610390069 | Bushing |
| 66 | 1610202021 | Plain bearing |
| 68 | 1610283036 | Rotary shaft lip seal |
| 74 | 1613435037 | Thread-forming tap. Screw |
| 75 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 76 | 2603490027 | Torx Oval-Head Screw 4x40 |
| 77 | 1613490017 | Thread-forming tap. Screw M4x30 DIN7500-1 T-20 |
| 78/1 | 1610102086 | Shim 0,3mm |
| 78/1 | 1610102087 | Shim 0,15mm |
| 78/1 | 1610102090 | Shim 0,45mm |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1613435038 | Lens Head Screw |
| 81/80 | 1615133033 | Handle BLUE |
| 81/193 | 1612026126 | Switch-Pawl RED |
| 82 | 16170006AE | Handle Cover BLACK |
| 83/83 | 1614690008 | Leaf Spring |
| 83/194 | 1610099013 | Screw Plate BLACK |
| 85 | 1615500404 | Cover |
| 96 | 1614601046 | Retaining ring |
| 100 | 1610026003 | Damping rubber |
| 113 | 1616325002 | Switching Panel |
| 120 | 160202508Y | Auxiliary Handle |
| 120/120 | 1612025058 | Auxiliary Handle M8 BLACK |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490001 | T-Head Bolt M8x80 MM |
| 120/802 | 1617000685 | index turning toolholder |
| 130 | 1616333049 | Gear Sleeve |
| 135 | 1614601067 | Retaining ring |
| 199/43 | 1612099002 | Rocker Arm |
| 199/44 | 1614611025 | Rocker Foot BLACK |
| 199/188 | 1610209008 | Grip-Spring Tensioning E |
| 199/199 | 1610284002 | Bellows |
| 200 | 1610284007 | Bellows |
| 321 | 16170006BV | Toolholder |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124097 | Striker Pin |
| 321/33 | 1610590020 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5x12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102084 | Thrust Ring |
| 321/46 | 1610390068 | Guide Bushing |
| 321/50 | 1614615008 | Compression Spring |
| 321/58 | 1610210105 | O-Ring 18,0x3,5 MM |
| 321/59 | 1610283039 | Rotary shaft lip seal |
| 321/60 | 1610210209 | O-Ring 9,5x3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 390/89 | 1610499059 | Guide Sleeve |
| 390/90 | 1610590016 | Collar Sleeve |
| 390/91 | 1610200033 | Backup ring |
| 390/95 | 1614643016 | Compression Spring |
| 390/97 | 1614601047 | Retaining ring |
| 661 | 1615430010 | Grease Tube 30 ML |
| 688 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 801 | 1617000689 | Motor Housing BLUE |
| 803 | 1617000690 | Armature 230V |
| 805 | 1607000392 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 808 | 1601106035 | Nameplate 26x42 MM |
| 811 | 1617000525 | Carbon-Brush Set |
| 811 | 1607000485 | Carbon-Brush Set 10 x 1 617 000 525 |
| 818 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 820 | 1617000691 | Intermediate Flange |
| 821 | 16170006BU | Tool Holding Fixture |
| 824 | 1617000A38 | Jack Shaft |
| 825 | 1617000895 | Tool Holding Fixture |
| 825/203 | 1610508047 | Protective Cap |
| 826/136 | 1610205014 | Felt Disc |
| 826/137 | 1610109019 | Rubber Disc |
| 828 | 16170006A7 | Striker Pin |
| 830 | 1617000698 | Gear Sleeve |
| 840 | 1617000699 | Impact Mechanism Housing BLACK |
| 890 | 1617000V41 | Guide Sleeve |
| 895 | 1615438426 | Lock for 1 615 438 395 |
