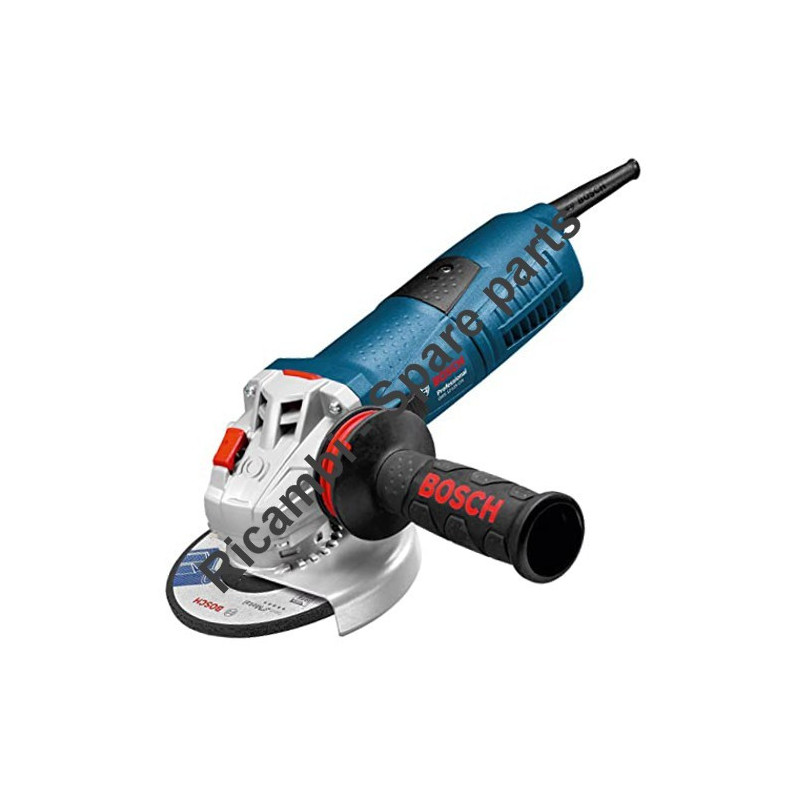

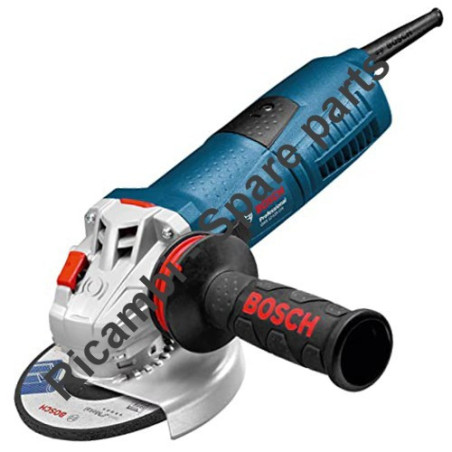

Bosch Spare Parts for Angle Grinder GWS 13-125
€12.88
Tax included
Bosch Spare Parts for Angle Grinder GWS 13-125
We have the original Bosch Spare Parts for Angle Grinder GWS 13-125, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Angle Grinder GWS 13-125 CIE 230 V/EU - 3601G9F000. All Spares are original and can be supplied at Low and prices. Our Spares are Genuine and Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Angle Grinder GWS 13-125
We have the original Bosch Spare Parts for Angle Grinder GWS 13-125 CIE 230 V/EU, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Angle Grinder GWS 13-125 CIE 230 V/EU - 3601G9F000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GWS 13-125 CIE 230 V/EU - 3601G9F000 | ||
| # | Part Num. | Description |
| 4 | 160720035A | Switch |
| 6 | 1600703043 | Grommet |
| 7 | 1601302017 | Fastening Clamp |
| 9 | 160111C07Y | Manufacturer's nameplate GWS 13-125 CIE |
| 13 | 2600905032 | Ball Bearing 7x19x6 |
| 14 | 1600905032 | groove ball bearing 8x22x7 |
| 24 | 1605500275 | Cover |
| 25 | 1605500276 | Housing Cover |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591047 | Air-Deflector Ring |
| 30 | 1600591048 | Air Distributor |
| 31 | 1600A01M0M | Brush-Cover |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0x1,1 MM |
| 35 | 1600136013 | Shim 0,1 MM THICK |
| 35 | 1600136014 | Shim 0,2 MM THICK |
| 35 | 1600136015 | Shim 0,3 MM THICK |
| 35 | 1600136020 | Shim 0,15 MM THICK |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 49 | 2914491410 | Thread-forming tap. Screw M4x16 |
| 50 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4x30 |
| 55 | 2603490021 | Torx Oval-Head Screw 4x12 |
| 80 | 3600150021 | Sealing disk |
| 108 | 1600712030 | Insulating Part |
| 301/17 | 1604652021 | Spiral Spring |
| 301/18 | 1602026091 | Switch Handle |
| 301/19 | 1604611031 | Compression Spring |
| 301/20 | 1602319025 | Adjusting Slide |
| 301/48 | 1613435034 | Lens Head Screw 3x10 ST |
| 302/104 | 1600210044 | O-Ring 4,5x1,0 MM |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 801 | 1607000D97 | Motor Housing |
| 802 | 160422052Z | Field assembly 230V |
| 803 | 1607000V33 | Armature With Fan 230V |
| 805 | 1607000392 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 808 | 160111A57P | Nameplate |
| 809 | 1607000D9C | Seal |
| 810 | 1607000V37 | Carbon-Brush Set |
| 813 | 1607000V38 | groove ball bearing |
| 816 | 1607000V43 | Brush Holder |
| 818 | 1607000V42 | Pan head screw |
| 821 | 1607000V39 | Gear Housing |
| 828 | 1607000D6C | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0x1,5 MM |
| 835 | 1606610132 | Fan |
| 838 | 1607000V44 | Set Of Gearwheels |
| 840 | 1607000V41 | Push-Button |
| 851 | 1607233471 | Speed governor |
| 650/1 | 1602025052 | Auxiliary Handle M10 ANTI-VIBRATION |
| 650/2 | 1603345043 | Round Nut M14 |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 2605703014 | Clamping Flange Ø22,3xØ42 MM |
| 650/5/2 | 1600210039 | O-Ring 20,35x1,78 MM |
| 651 | 1600A00XK9 | Protective Cover |
| 891 | 2602025067 | Auxiliary Handle M10, Ø32,5x105 MM |
| 896 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GWS 13-125 CIE - 3601G9F000
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
