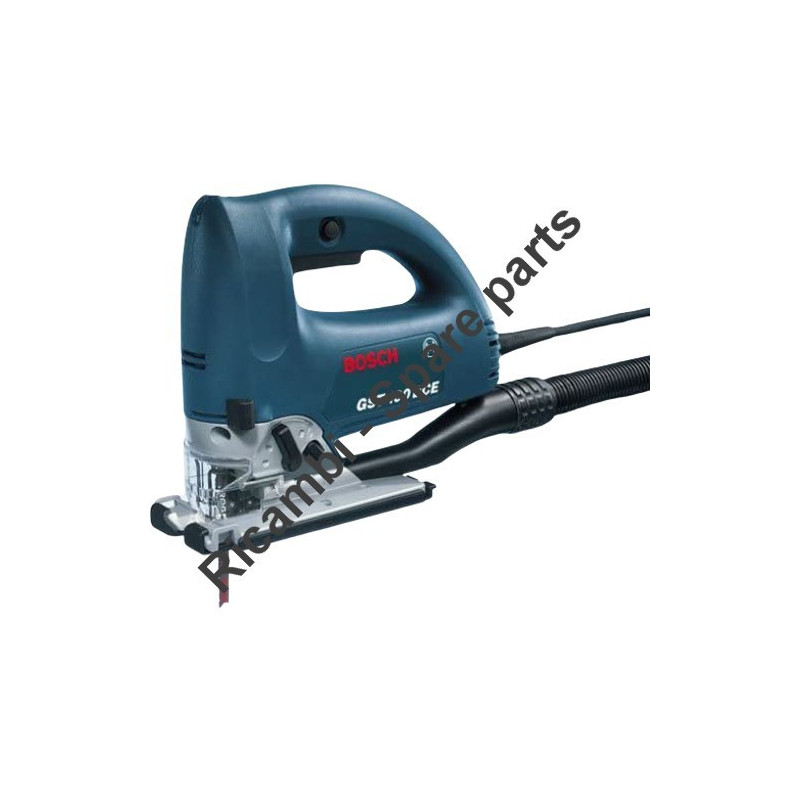

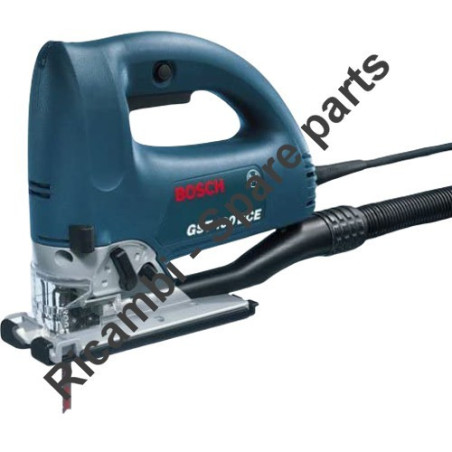

Bosch Spare Parts for Jig Saw GST100BCE
€21.20
Tax included
Bosch Spare Parts for Jig Saw GST100BCE
Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST100BCE - 0601589703.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Jig Saw GST100BCE
Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST100BCE - 0601589703.
In the following table, look for the model of the jig Saw and the respective parts of the code.
| Jig Saw GST100BCE - 0601589703 | ||
| # | Part Num. | Description |
| 1 | 2605104582 | Housing Section BLUE |
| 2 | 2604220584 | Field 230-240V |
| 3 | 2604011115 | Armature 230-240V |
| 3/90 | 2606610089 | Fan |
| 4 | 2607200500 | Switch |
| 5 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2x76 MM |
| 9 | 2601116509 | Manufacturer's nameplate |
| 14 | 2600905095 | Ball Bearing 9x24x7 |
| 16 | 2605807082 | Brush Plate |
| 28 | 1903201042 | Needle Roller DIN 5402-A3x11,8-G2 |
| 29 | 2916660008 | Spring retaining ring DIN 472-24x1,2 MM |
| 31 | 2600101048 | Shim 0,5 MM |
| 32 | 2600913040 | Needle-Roller Assembly |
| 33 | 2606320101 | Eccentric Cog Wheel |
| 34 | 2600102614 | Shim 0,5 MM |
| 35 | 2601923010 | Fork Lever |
| 36 | 2601098032 | Counterweight |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2916080909 | Locking Washer DIN 6799-6-FST |
| 40 | 2600200038 | Intermediate Ring |
| 41 | 2600917900 | Needle bearing |
| 42 | 2602305048 | Air Eliminator |
| 51 | 2603105053 | Bearing bolt |
| 52 | 2600590006 | Ratchet Cap |
| 53 | 2602026063 | Rotary Knob BLACK |
| 54 | 2916080908 | Locking Washer 5 DIN 6799 |
| 55 | 2602026065 | Rotary Knob BLACK |
| 56 | 2600100607 | Shim 0,3 MM |
| 57 | 2603100069 | Straight Pin 17,35+0,1 MM |
| 60 | 2605808081 | Gear Cover |
| 60/20 | 2600301037 | Bushing |
| 61 | 2604610042 | Compression Spring |
| 63 | 2600101095 | Shim |
| 65 | 2601015064 | Seal |
| 74 | 2604651011 | Torsion Spring |
| 75 | 2600591010 | Cap-Handle BLACK |
| 76 | 2601015065 | Seal |
| 77 | 2601016079 | Cover Plate |
| 78 | 2603421014 | Thread-forming tap. Screw |
| 83 | 2600202037 | Retaining snap ring |
| 85 | 2601015057 | Sealing Plate |
| 89 | 2601098082 | Work Board |
| 90 | 2601030022 | Profile Beading |
| 91 | 2910141197 | Hex Socket Head Cap Screw DIN 912- M6x16-8.8 |
| 92 | 2917760034 | Slotted Spring Pin 2x6 DIN 1481 |
| 94 | 2603410049 | Thread-forming tap. Screw M4x12 MM |
| 95 | 2603101046 | Protecting Cover BLACK |
| 97 | 2604448210 | Earth Conductor |
| 98 | 2603490018 | Torx Oval-Head Screw 3x18 |
| 103 | 2607230044 | Speed governor 230V |
| 106 | 2603490025 | Torx Oval-Head Screw 4x30 |
| 107 | 2603490024 | Torx Oval-Head Screw 4x25 |
| 653 | 2605730038 | Suction Nozzle |
| 653/10 | 2605510159 | Covering hood |
| 654 | 2608000184 | Pad |
| 655 | 2601016065 | Splintering Protector |
| 808 | 2601119422 | Nameplate |
| 816/04 | 2604320914 | Carbon-Brush Set - discontinued - check brush plate |
| 816/06 | 1604652013 | Spiral Spring |
| 825 | 2605806896 | Gear Housing |
| 844 | 2600326904 | Roller Set |
| 845 | 2601321904 | Roller Lever |
| 860 | 2605808927 | Gear Cover |
| 862 | 2601322900 | Guide Bracket |
| 866 | 2600780911 | Lifting Rod |
| 873 | 2601990906 | Holding Plate |
| 881 | 2600290902 | Seal Kit |
| 886 | 2605500908 | Fan Cover BLUE |
| 888 | 2608000917 | Base Plate |
| 888 | 2608000920 | Base Plate |
