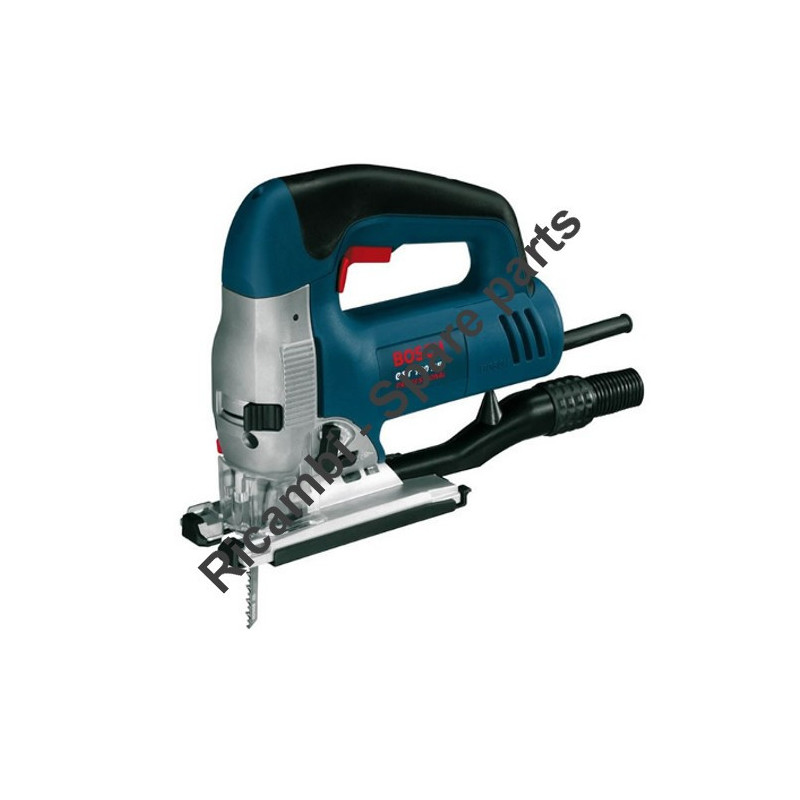

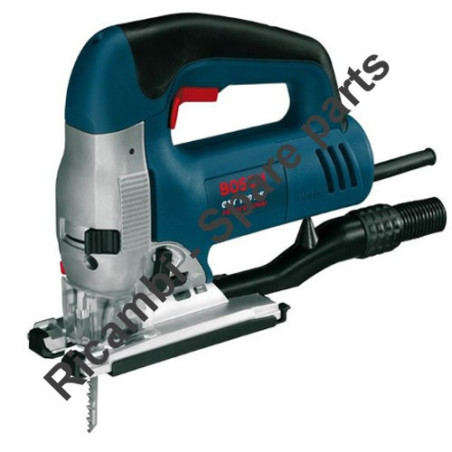

Bosch Spare Parts for Jig Saw GST 120 BE
€31.07
Tax included
Bosch Spare Parts for Jig Saw GST 120 BE
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 120 BE - 0601511603.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Jig Saw GST 120 BE
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 120 BE - 0601511603.
In the following table, look for the model of the jig Saw and the respective parts of the code.
| GST 120 BE/0 601 511 603 | ||
| # | Part Num. | Description |
| 5 | 2600101048 | Shim 0,5 MM |
| 6 | 2601923010 | Fork Lever |
| 7 | 2601098087 | Counterweight |
| 8 | 2600913040 | Needle-Roller Assembly |
| 9 | 2606320101 | Eccentric Cog Wheel |
| 10 | 2600101047 | Shim 0,3 MM |
| 12 | 2600200038 | Intermediate Ring |
| 13 | 2600917900 | Needle bearing |
| 14 | 2602026116 | Rotary Knob BLACK |
| 15 | 2600590006 | Ratchet Cap |
| 16 | 2916080908 | Locking Washer 5 DIN 6799 |
| 18 | 2600118013 | Spring retaining ring |
| 19 | 2603105104 | Bearing bolt |
| 20 | 2602305051 | Air Eliminator |
| 22 | 2602026109 | Rotary Knob BLACK |
| 28 | 2602098018 | Tensioning Lever |
| 29 | 2600591022 | Cap-Handle RED |
| 31 | 2608000925 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/32 | 2601098099 | Work Board |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 72 | 2604610042 | Compression Spring |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 102 | 2604220715 | Field 220-240V |
| 103 | 2604011343 | Armature 220-240V |
| 103/9 | 2606610093 | Fan |
| 104 | 2607200588 | Switch |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9x95 MM |
| 107 | 2601035001 | Cable Clip |
| 109 | 2601116764 | Manufacturer's nameplate GST 120 BE |
| 115 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 116 | 2605807108 | Brush Plate |
| 121 | 2603435086 | Tapping Screw |
| 122 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 123 | 2601328073 | Cover Disc |
| 125 | 2607230079 | Speed governor |
| 126 | 2602025133 | Strap-Shaped Handle DARK BLUE |
| 127 | 2600508049 | Housing Cover |
| 128 | 2602026121 | Locking Lever LIGHT GREY |
| 129 | 2604610096 | Compression Spring |
| 130 | 2603410049 | Thread-forming tap. Screw M4x12 MM |
| 131 | 2604448270 | Earth Conductor |
| 132 | 2604448271 | Connecting Cable |
| 653/4 | 2601016087 | Splintering Protector |
| 654 | 2608000309 | Pad |
| 655 | 2605730040 | Suction Nozzle |
| 656 | 2605510205 | Covering hood |
| 801 | 2605806889 | Gear Housing BLACK |
| 805 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 808 | 2601116830 | Nameplate |
| 810 | 2605108913 | Motor Housing |
| 811 | 2916080909 | Locking Washer DIN 6799-6-FST |
| 816 | 2604321941 | Carbon-Brush Set |
| 817 | 2600905095 | Deep-Groove Ball Bearing 9x24x7 |
| 823 | 2601990907 | Fan Cover |
| 828 | 2601990042 | Tensioning Lever |
| 835 | 2602317900 | Clamping Piece |
| 836 | 2605808929 | Gear Cover |
| 836/86 | 2603101046 | Protecting Cover BLACK |
| 837 | 2601321907 | Roller Lever |
| 866 | 2601990911 | Control Unit |
| 870 | 2600591900 | Cap-Handle |
| 873 | 2601322901 | Carrier |
| 877 | 2600780911 | Lifting Rod |
| 884 | 2600290903 | Seal Kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GST 120 BE - 0601511603
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
