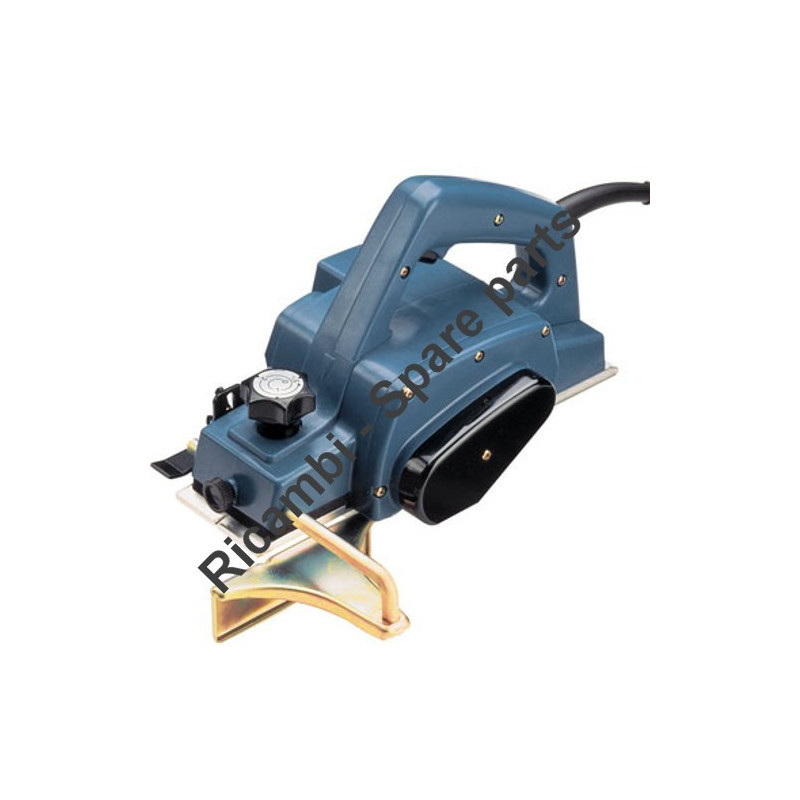

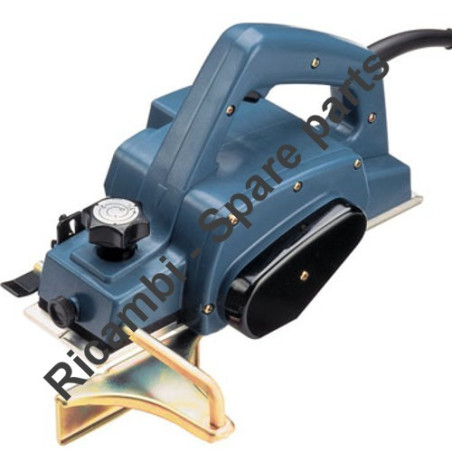

Makita Spare Parts for Planer 1923H
€1.35
Tax included
Makita Spare Parts for Planer 1923H
Makita Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Corded Planer 1923H.Fix Your Corded Planer 1923H. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Planer 1923H
Fix Your Corded Planer 1923H. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Planer and the respective parts of the code.
| Makita 1923H 240v Corded Planer Spare Parts Pag.1 |
||
| # | Part Num. | Description |
| 1 | 911123-8 | PAN HEAD SCREW M4X14 |
| 2 | 410828-2 | REAR COVER X 1923H |
| 4 | 271231-0 | KNOB 46 1923B/1901/N1923BD |
| 5 | 941251-5 | FLAT WASHER 10 |
| 6 | 191972-1 | CARBON BRUSH CB-132 |
| 7 | 682504-0 | CORD GUARD 10/85 |
| 9 | 687001-1 | STRAIN RELIEF 4157KB/6820V |
| 10 | 911133-5 | PAN HD SCREW M4X18 |
| 12 | 645200-1 | NOISE SUPPRESSOR MT814/815 |
| 13 | 651252-2 | SWITCH X 5014-5016 |
| 14 | 911223-4 | PAN HD SCREW 5X16 W/CP |
| 15 | 594048-7 | FIELD ASSY 240V 1923H |
| 16 | 263014-2 | RUBBER PIN 4 |
| 17 | 211031-6 | ball BEARING 608LLB |
| 18 | 681613-2 | INSULATION WASHER 806 HR1800 JN / JS32 / 4301BV |
| 19 | 512898-8 | ARMATURE ASSY 240V 1923H |
| 20 | 410830-5 | HANDLE COVER X1923H |
| 21 | 911156-3 | PAN HEAD SCREW M4X30 W/CP |
| 22 | 410827-4 | BAFFLE PLATE 1923H |
| 23 | 241836-0 | FAN 65 X 1923H |
| 24 | 211066-7 | BALL BEARING HM1301 |
| 25 | 222125-2 | V-PULLEY 4-20L 1901 / 1923B |
| 26 | 911546-0 | PAN HEAD SCREW M4x25 |
| 27 | 263002-9 | RUBBER PIN 4 |
| 28 | 211087-9 | BALL BEARING 6200DDW NSK |
| 29 | 263002-9 | RUBBER PIN 4 |
| 30 | 161103-6 | DRUM 1923H |
| 31 | 342430-2 | T.C.T.PLANER BLADES 82MM KP0810 1100 / 1923B |
| 32 | 343433-9 | ADJUST PLATE |
| 33 | 251246-3 | PAN HEAD SCREW W.WASHER M4X5 |
| 34 | 961003-8 | RETAINING RING S-7 BHR262T/BHR |
| 35 | 210025-8 | BALL BEARING 627LLB 4324 |
| 36 | 285637-6 | BEARING RETAINER 7-21 1923b |
| 37 | 911226-8 | PAN HD SCREW 5X18 W/SP |
| 38 | 951051-5 | TENSION PIN 3-8 DIN 1481 |
| 39 | 164372-8 | DRUM HOLDER N1923BD |
| 40 | 341342-6 | DRUM COVER N1923BD |
| 41 | 231504-3 | TORSION SPRING 10 1051D/N1923B |
| 42 | 251228-5 | RAISED HD SCREW M5X25 |
| 43 | 924206-5 | WING SCREW M5X10 N1923BDD |
| 44 | 942101-7 | M5 SPRING RING DIN128 |
| 45 | 941101-4 | FLAT WASHER 5 |
| 46 | 342390-8 | DEPTH GUIDE 1923b |
| 47 | 251812-6 | KNURLED THUMBSCREW M5X10 |
| 48 | 157661-8 | MAIN FRAME 1923H |
| 49 | 187676-1 | DRUM PLATE |
| 50 | 251609-3 | HEX HEAD M6X17 |
| 51 | 231004-3 | COMPRESSION SPRING 18 1125/1923B / 1901 / 1911B |
| 52 | 421007-7 | RUBBER PACKING 1923B/1901/N192 / 1923B |
| 53 | 316587-5 | FRONT BASE 1923B |
| 54 | 911226-8 | PAN HD SCREW 5X18 W/SP |
| 55 | 312023-9 | BASE 1923B/1901/N1923BD |
| 56 | 152371-2 | BRACKET 1923H |
| 57 | 222126-0 | V-PULLEY 4-37 1901 / 1923b |
| 58 | 225071-8 | DRIVE BELT 4-241 1901 / 1923b |
| 59 | 410826-6 | BELT COVER X1923H |
| 60 | 911133-5 | PAN HD SCREW M4X18 |
| Accessories Pag.2 | ||
| 913 | 192080-1 | NOZZLE FOR VACUUM CLEANER 1923 |
| 914 | 911228-4 | PAN HD SCREW 5X18 W/CP |
| 915 | 782209-3 | SOCKET WRENCH 9 |
| 916 | 911536-3 | PAN HD SCREW M4X20 9032 |
| 917 | 253807-5 | THIN BLUE WASHER 5 6012D |
| 918 | 213601-7 | O RING 50 1923B/N1923BD/HR4000 |
| 919 | D-07945 | SET 2 MINI KNIVES 82MM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 1923H
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 7/10 BUSINESS DAYS APPROX
- MORE INFO:
- info@bricoutensili.com
New
