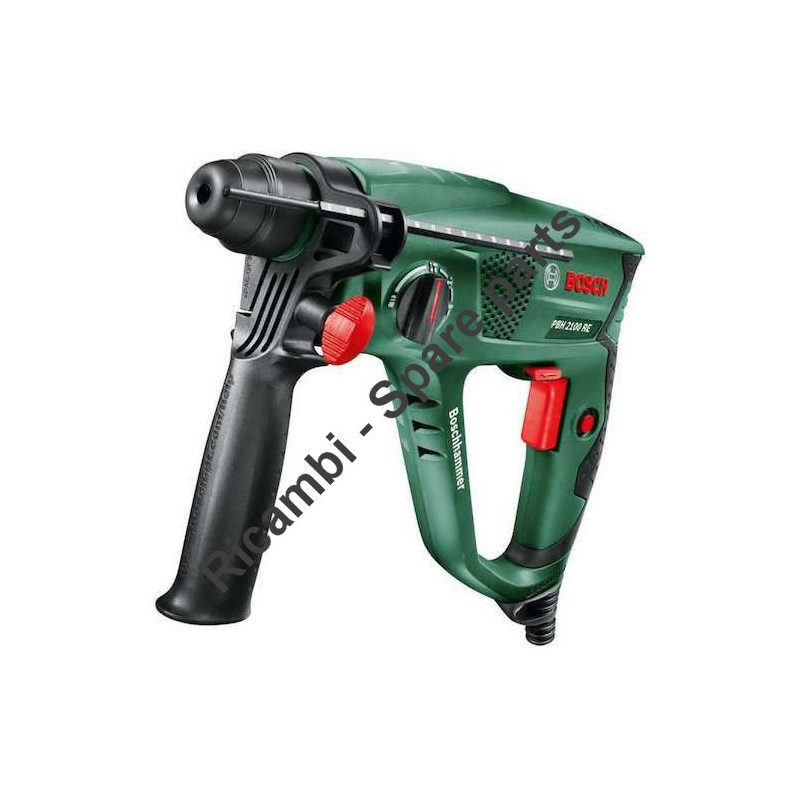

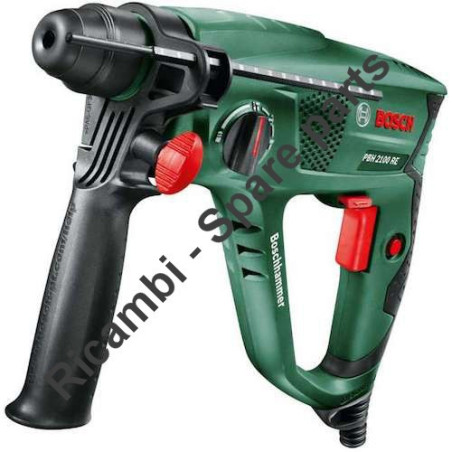

Bosch Spare Parts for Rotary Hammer PBH 2100 RE
€2.25
Tax included
Bosch Spare Parts for Rotary Hammer PBH 2100 RE
BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer PBH 2100 RE - 3603CA9300
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Rotary Hammer PBH 2100 RE
BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer PBH 2100 RE - 3603CA9300
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer PBH 2100 RE/3 603 CA9 300 | ||
| # | Part Num. | Description |
| 2 | 1614220182 | Field 230V |
| 4 | 1617200515 | On-Off Switch |
| 5 | 1619P13271 | Power supply cord |
| 6 | 1619P09295 | Grommet |
| 7 | 1611035007 | Cable Clip |
| 9 | 1619P09296 | Manufacturer's nameplate |
| 10 | 1619P09692 | Manufacturer's nameplate PBH 2100 RE |
| 12 | 1617328032 | Suppression Filter |
| 14 | 1615806187 | Bearing Bracket |
| 15 | 2603100056 | Damping rubber |
| 17 | 1611015054 | Sealing Frame |
| 19 | 1610210184 | O-Ring 22,0x2,5 MM |
| 21 | 1615806188 | Hammer Pipe |
| 22 | 1619P01786 | Pinion |
| 23 | 1616317070 | Cylindrical Gear |
| 24 | 1613101010 | Transmission Shaft |
| 25 | 1619P01784 | Coupling hub |
| 27 | 1618710085 | Striker |
| 28 | 1613124084 | Striker Pin |
| 29 | 1613100034 | Piston Pin |
| 31 | 1614601053 | Retaining ring |
| 33 | 1619P01785 | Switching Element |
| 34 | 1610905034 | Ball Bearing 8x22x6 |
| 36 | 1610551008 | Holding Plate |
| 37 | 1610100016 | Guide Disc |
| 38 | 1619P13665 | Cylindrical Gear |
| 39 | 1614601055 | Retaining ring |
| 40 | 1613100032 | Straight Pin |
| 41 | 1610102072 | Ratchet Disc |
| 42 | 1610301004 | Plain bearing |
| 44 | 1619P14179 | Supporting Disc |
| 46 | 1614630002 | Compression Spring |
| 47 | 1610905035 | Ball Bearing |
| 48 | 1614601054 | Retaining ring |
| 49 | 1619P00829 | Retaining ring |
| 50 | 1600A00FL3 | Thrust Ring |
| 51 | 1619P01787 | Shift Plate |
| 52 | 1619P01789 | Coiled Spring |
| 53 | 1619P00828 | Pressure Disc |
| 54 | 1613100033 | Guide Rod |
| 55 | 1610508052 | Protective Cap |
| 60 | 3600224038 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 66 | 1900905029 | Ball Bearing 8x22x7 |
| 67 | 1610905033 | Ball Bearing |
| 68 | 1614601052 | Plain Washer |
| 69 | 1619P09293 | Change-Over Switch |
| 71 | 1619P00219 | Tapping Screw |
| 72 | 1619P00220 | Torx Oval-Head Screw 3x10 |
| 73 | 2914201483 | Torx Oval-Head Screw |
| 74 | 1619P01788 | Shift Plate |
| 651 | 2602025125 | Auxiliary Handle BLACK |
| 652 | 2609005615 | Depth-Gauge |
| 655 | 1618571031 | Key Chuck |
| 655/872 | 2607950007 | Chuck Wrench SG2 |
| 801 | 1619P09777 | Housing Set |
| 803 | 1619P01771 | Armature 220-240V |
| 805 | 3607030489 | Power supply cord |
| 808 | 1619P09669 | Nameplate |
| 816 | 1619P01777 | Carbon-Brush Set |
| 818 | 1619P01772 | Intermediate Flange |
| 820 | 1619P09778 | Switch Button |
| 821 | 1619P01773 | Hammer Pipe |
| 822 | 1619P01778 | Transmission Shaft |
| 826 | 1618700083 | Hammer Piston |
| 830 | 1619P01775 | Drive bearing |
| 832 | 1610508051 | Rubber Bushing |
| 856 | 1619P02182 | Protection Sleeve |
| 865 | 1610210186 | O-Ring 13,0x3,0 MM |
| 870 | 1619P01776 | Connecting Cable |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBH 2100 RE 3603CA9300
11 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
New
