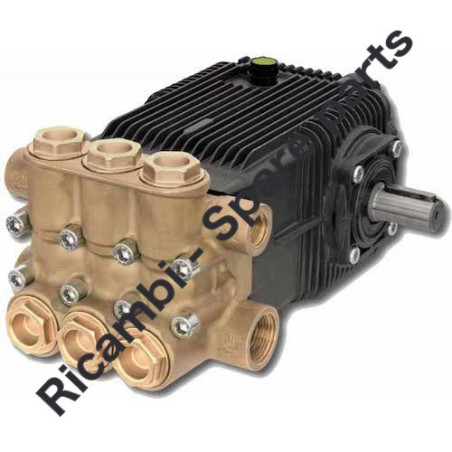

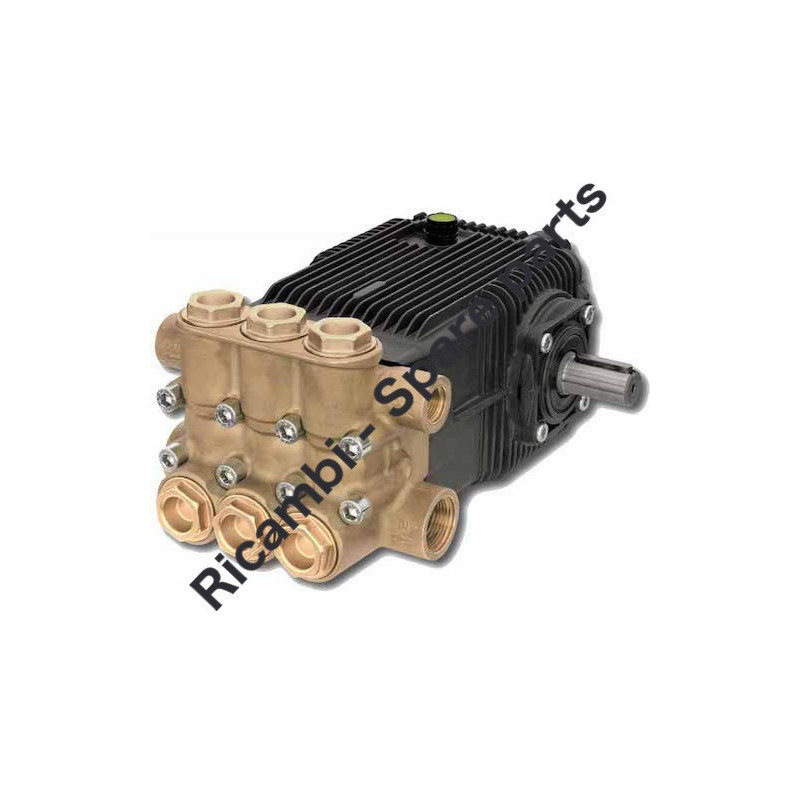

Annovi Reverberi XWP 70.12 N Parts
€646.93
Tax included
Ricambi Annovi Reverberi per Pompa XWP 70.12 N
Ricambi originali Annovi Reverberi e parti di ricambio per la sostituzione o la riparazione di parti danneggiate della Pompa Divisione Industria Pompa XWP 70.12 N - 26287.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi Reverberi 26287 - XWP 70.12 N Spare Parts
Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump 26287 - XWP 70.12 N.
In the following tables, look for the spare part and its respective code.
| Annovi Reverberi XWP 70.12 N - 26287 | ||
| # | Part Num | Description |
| 1 | 1949251 | Pre-assembly of Ø 30 head |
| 2 | 1943620 | Head |
| 3 | 2822550 | 1" G brass cap |
| 4 | 390291 | Ø 28.25 x 2.62 O-ring |
| 5 | 820361 | 1/2" G brass cap |
| 6 | 180101 | Ø 17.5 x 2 O-ring |
| 9 | 1943630 | Cap |
| 10 | 390291 | Ø 28.25 x 2.62 O-ring |
| 11 | 3669051 | Complete delivery valve |
| 12 | 3669050 | Complete intake valve |
| 20 | 1943650 | O-ring Ø 30.2 x 40 x 4.2 O-ring |
| 21 | 1943660 | 30 x 40 x 6 O-ring |
| 22 | 1943670 | Ø 30 front piston guide |
| 23 | 1943680 | 30 x 38 x 5.5 O-ring |
| 24 | 3660500 | Anti-extrusion ring |
| 25 | 1943700 | Ø 30 rear piston guide |
| 26 | 1140490 | Ø 37.82 x 1.78 O-ring |
| 27 | 1943730 | Anello tenuta |
| 40 | 1941330 | Valve body |
| 41 | 850260 | M10 x 90 socket head cap screw |
| 42 | 650530 | Washer |
| 43 | 1140370 | Oil plug with dipstick |
| 44 | 1980740 | Plug |
| 45 | 740290 | O-ring Ø 14x1.78 |
| 46 | 1940410 | O-ring Ø 132x3 |
| 47 | 1200430 | TCEI screw M6x16 |
| 50 | 1941640 | TE screw M6x60 |
| 51 | 1340600 | Washer |
| 52 | 1943610 | Piston Ø 30 |
| 53 | 1383190 | Disc |
| 54 | 1940960 | Guide piston |
| 57 | 1940060 | Pin |
| 58 | 1943720 | Aluminum connecting rod |
| 65 | 1949010 | Complete cover |
| 66 | 1260430 | O-ring |
| 67 | 1780690 | Disc |
| 68 | 1260250 | Level gauge |
| 69 | 1140450 | O-ring Ø 20.24x2.62 |
| 70 | 740290 | O-ring Ø 14x1.78 |
| 71 | 1980740 | 3/8" G brass cap |
| 75 | 1140410 | Bearing |
| 76 | 1941380 | O-ring Ø 66.34x2.62 |
| 77 | 1949011 | Complete cover |
| 79 | 100410 | O-ring Ø 34.6x2.62 |
| 80 | 1941290 | Ring |
| 81 | 1941260 | Disc |
| 82 | 1941270 | Level gauge |
| 83 | 1941390 | Thickness 0.05mm |
| 83 | 1941400 | Thickness 0.10mm |
| 83 | 1941410 | Thickness 0.19mm |
| 83 | 1941420 | Thickness 0.25mm |
| 84 | 850370 | TCEI screw M8x16 |
| 84 | 850370 | TCEI screw M8x16 |
| 85 | 1943710 | Shaft marked 15 |
| 86 | 650250 | Key |
| 90 | 1941240 | Support |
| 91 | 820681 | Seal ring |
| 97 | 200231 | Washer |
| 98 | 1940370 | Foot |
| 99 | 1940380 | TCEI screw 10x18 |
| A | 42835 | Valve kit |
| B | 43444 | Piston kit Ø 30 |
| C | 43445 | Oil seal kit |
| E | 43446 | Water seal kit Ø 30 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XWP70.12N - 26287
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- MORE INFO:
- info@bricoutensili.com
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N AR:
- AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
