Annovi & Reverberi Parts for Low Pressure Pump AR 320 bp Twin C/C

€0.74
Tax included

Annovi Reverberi Parts for Low Pressure Pump AR 320 bp Twin C/C

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Low Pressure Pump AR 320 bp Twin C/C  cod. 1186.
ITEM CODE: 1040060
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Annovi Reverberi Parts for Low Pressure Pump AR 320 bp Twin C/C

Annovi & Reverberi Genuine spare parts or replacement parts for to repair Low Pressure Pump AR 320 bp Twin C/C  cod. 1186

In the following tables, look for the spare part and its respective code.

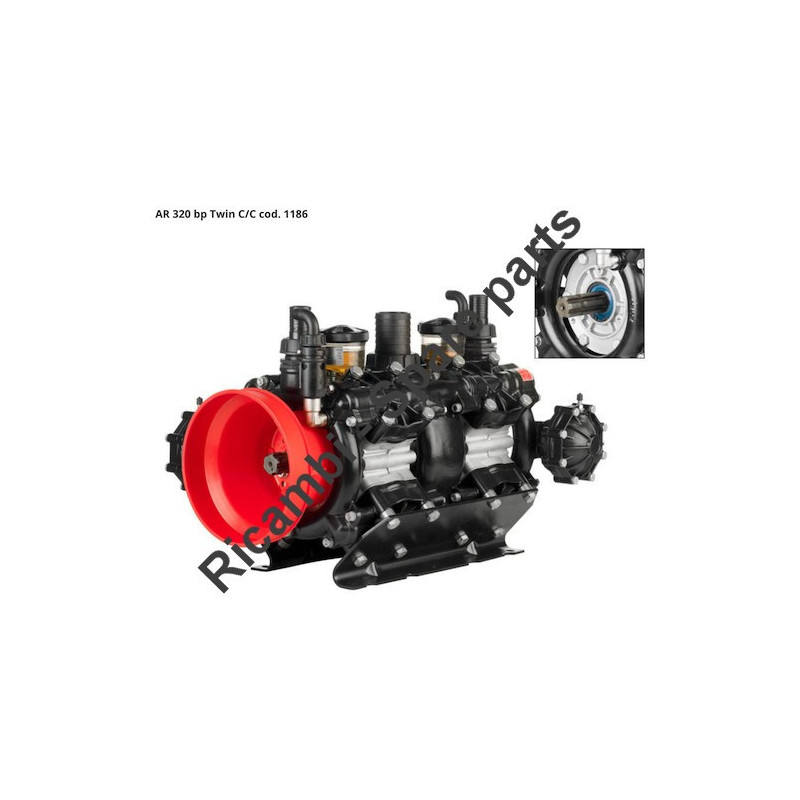

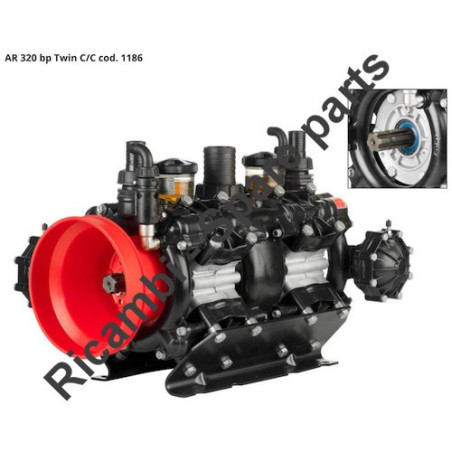

Low Pressure Pump AR 320 bp Twin C/C cod. 1186
Position Code Description Note
1 760930 Elbow AR320bp opt.
1 3040160 Elbow AR370bp opt.
2 750670 Ring nut
4 751130 Fitting
5 390290 O-ring
6 760760 Line
7 380242 Nut Geomet C20
8 751350 Head
9 680070 O-ring
10 759054 Valve
12 880530 Plug
13 750110 Sleeve AR320bp
13 750115 Sleeve AR370bp
14 750061 Screw Geomet C50
15 680350 Screw C10
16 1040060 O-ring
17 1800060 Plug AR320bp
17 750050 Plug AR370bp
18 750030 Tank
19 750040 Gasket
20 761010 Pump body
21 851360 O-ring
22 680020 Support
23 160672 Screw Geomet C35
27 760940 Hose tail
28 2420181 Support
29 650640 Screw Geomet C35
30 550080 Diaphragm NBR
30 550081 Diaphragm BlueFlex™
30 550085 Diaphragm Desmopan
30 550086 Diaphragm HPDS
30 550084 Diaphragm Viton
32 500260 Piston ring
33 750122 Piston
35 160700 Pin
36 160691 Ring
37 760140 Connecting-rod
38 750090 Bearing
39 750130 Ring
40 540040 Plate
41 751280 Bearing
42 160740 Ring
43 200390 Ring
46 390290 O-ring
47 380243 Washer Geomet
50 330173 Plug Geomet C20
52 550190 Diaphragm NBR
52 550194 Diaphragm Blueflex™
53 650542 Gasket
54 180020 Air valve C3
55 620232 Semi air chamber Nera
56 621781 Screw Geomet C20
58 680180 Semi air chamber
59 1500470 Cardan protection Geomet C10
60 850251 Screw
61 180101 O-ring
62 629216 Air chamber
65 740290 O-ring
66 580360 Hub pin
67 881560 Fitting
68 1609000 Safety valve 20 bar
69 880831 O-ring Viton
70 550450 Ring nut
71 550460 Elbow
72 390314 Washer Geomet
73 580370 Plate
74 750740 O-ring
75 750710 Ring nut
76 750850 Elbow AR320bp opt.
76 750720 Elbow AR370bp opt.
77 750870 Hose tail AR320bp
77 750730 Hose tail AR370bp
78 760170 Foot
79 760180 Spacer
80 760190 Screw Geomet C50
81 750820 Shaft AR320bp C/C
81 760131 Shaft AR370bp C/C
82 760260 Ring
83 760151 Coupling
84 760161 Hub pin
85 620030 O-ring
86 760120 Line
87 760480 Shaft AR370bp C/F
87 760470 Shaft AR320bp C/F
88 620330 Ring
89 1800090 Ring
90 230310 Bearing
91 760510 Plate
103 2240100 Hub pin C30
104 2240110 Nut C30
105 751530 Plate
106 751140 O-ring
Parts Kit
Model Position Quantity
KIT 2371 30 8
Membrane NBR
Buna diaphragms
KIT 43086 30 8
Membrane BlueFlexTM
BlueFlexTM diaphragms
KIT 2372 30 8
Membrane HPDS
HPDS diaphragms
KIT 2373 30 8
Membrane Desmopan
Desmopan diaphragms
KIT 2374 09-ott 8+8
Valvole
Valves
KIT 2406 5-9-16-61-65-69-74-85 2+16+2+4+2+2+2+2
OR
O-Rings
KIT 2407 (NBR)
Kit Maintenance repair
Position Quantity
2 1
4 1
5 2
9 16
10 16
16 2
17 1
18 2
19 2
21 2
27 2
30 8
42 4
46 2
52 2
74 2
75 1
77 1
82 1
84 1
85 2
103 8
104 8
105 8
106 2
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AR320bp Twin C/C - 1186
