Annovi Reverberi XTS 10.15 N Spare Parts

€257.55
Tax included

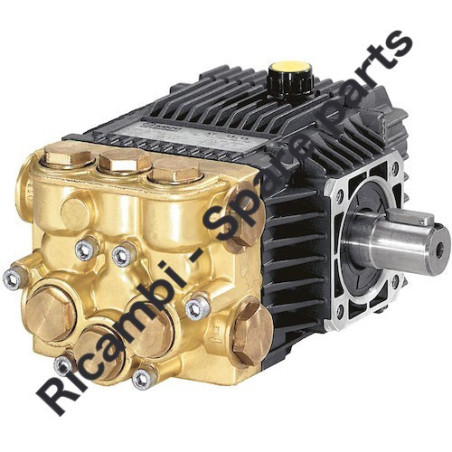

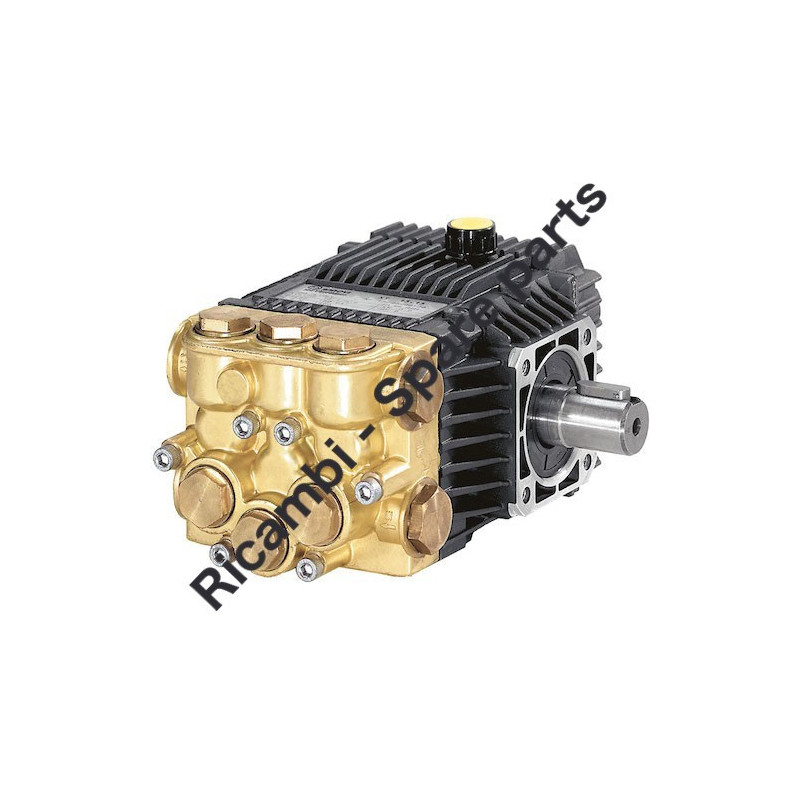

Annovi Reverberi XTS 10.15 N 7413 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump Serie 132 XTS N 2800rpm ø 24mm - XTS 10.15 N - 7413.
ITEM CODE: 1269221
Quantity

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Annovi Reverberi XTS 10.15 N 7413 Spare Parts

Annovi Reverberi Genuine spare parts for to fix AR Industrial Division HP Pump Serie 132 XTS N 2800rpm ø 24mm - XTS 10.15 N - 7413.

In the following tables, look for the spare part and its respective code.
Annovi Reverberi 7413 - XTS 10.15 N
7413 - XTS 10.15 N
Serie 132 XTS N 2800rpm ø 24mm
# Part Num. Description Note
1 1269221 Head assembly Ø 15
2 1320022 Head
3 820361 Plug 1/2" G brass C=40Nm
4 180101 O-ring Ø 17,5x2 Lubricate with grease Molykote PG54
5 1980740 Plug 3/8" G brass C=20Nm
6 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
7 620301 Plug 1/8" G Screw with Loxeal 55-14
9 1260162 Plug C=34Nm
10 960160 O-ring Ø 17,86x2,62 Lubricate with grease Molykote PG54
11 1269050 Complete valve
12 880830 O-ring Ø 15,54x2,62
20 1520120 Ring support Ø 15
21 1271650 Water seal Ø 15 Lubricate with grease Molykote PG54
22 1260151 Piston guide Ø 15
23 1260420 O-ring Ø 26,70x1,78 Lubricate with grease Molykote PG54
24 1260440 Water seal Ø 15 Lubricate with grease Molykote PG54
25 1260460 Oil seal
40 1320010 Pump body
41 1322730 Screw TCEI M6x60 C=15Nm
42 1381550 Washer
43 880130 Oil plug with oil dipstick
44 1980740 Plug 3/8" G brass C=20Nm
45 740290 O-ring Ø 14x1,78 Lubricate with grease Molykote PG54
46 1260040 Oil seal
47 1260760 Screw TCEI M5x20 C=5,4Nm
50 1260110 Nut M8 Screw with Loxeal 55-14 / C=12Nm
51 1260100 Washer
52 1260120 Piston Ø 15
53 480480 O-ring Ø 4,48x1,78
54 1260091 Plate
55 1260070 Piston guide
56 1260080 Pin
57 1320140 Connecting-rod bronze
65 1329010 Cover complete
66 1260430 Ring
67 1780690 Plate
68 1260250 Level gauge
69 1140450 O-ring Ø 20,24x2,62 Lubricate with grease Molykote PG54
75 1320330 Bushing
76 1320370 Bearing
77 1260790 Ring seeger Øi 52
78 1266740 Cover
85 1321790 Shaft C marked
86 1380520 Key
87 1320370 Bearing
88 1260790 Ring seeger Øi 52
89 1260750 Ring seal Assemble with tool [1941990]
98 1263890 Foot
99 1260470 Screw TE M8x10 C=24Nm
A 1864 Valve kit
B 2628 Piston kit Ø 15
C 1872 Oil seal kit
E 1866 Water seal kit Ø 15
E 2029 Water seal kit Ø 15 Viton
