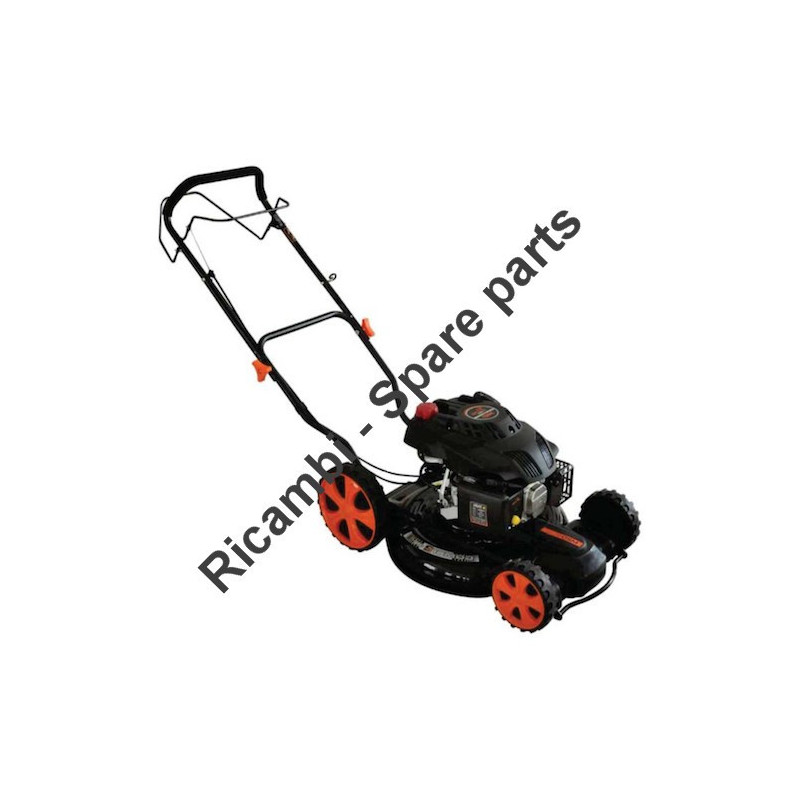

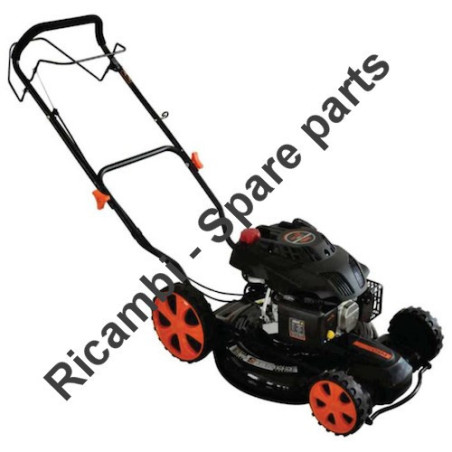

Ama original spare parts for replacing damaged parts or repairing the Self-Propelled Lawnmower 4-stroke Petrol engine MVGT475 139 cc Mulching Mode RTM 521 - 90014.
Fix Your Self-Propelled Lawnmower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Fix Your Power Tool. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.![]()
| Lawnmower Mulching RTM 521 - 90014 | ||
| # | Part Num. | Description |
| 1 | 90332 | Upper handrail |
| 2 | 84857 | Stop lever |
| 3 | 90338 | Self-propelled Lever |
| 4 | 90278 | Foam pipe |
| 5 | 89399 | Plastic stopper |
| 6 | 84830 | Engine Brake cable |
| 7 | 90352 | Selfpropelled cable |
| 8 | 90313 | Brake Cable Assy plate |
| 9 | M6/8.8 nut | |
| 10 | M6x30/8.8 nut | |
| 11 | 90266 | Fastener |
| 12 | 88568 | Rope Guide |
| 13 | 88564 | M6 cap nut |
| 14 | M8/8.8 nut | |
| 15 | 90258 | Triangle knob |
| 16 | 89893 | Heterotypic Carriage Bolt M8X50/8.8 |
| 17 | Φ8.4xΦ16x1.6 washer | |
| 18 | 90334 | Lower handrail |
| 19 | M8X20/8.8 nut | |
| 20 | 89450 | GB6187.1-M8/8.8 nut |
| 21 | 90317 | Left handle bracket |
| 22 | 90318 | Right handle bracket |
| 23 | 90342 | Deck |
| 24 | 90328 | Rear connection plate |
| 25 | 73201 | Height adjustment ball |
| 26 | 90347 | Rear drive assy. |
| 27 | 89887 | Wheel assy. |
| 28 | 89879 | Outer cover of hub |
| 29 | 84904 | Bush |
| 30 | 90350 | Selfpropelled assy. |
| 31 | 90306 | Li737 belt |
| 32 | 79423 | Φ12 washer |
| 33 | 90307 | Selfpropelled spring |
| 34 | RMG380264000 | T475 ENGINE |
| 35 | 88628 | M8X25/8.8 bolt |
| 36 | 90323 | Blade Adapter Assy |
| 37 | 90321 | Blade |
| 38 | 90308 | Blade washer |
| 39 | 84815 | 3/8-24UNF-2B bolt |
| 40 | 90298 | Dust proof board |
| 41 | 90283 | Rear shield |
| 42 | ST6.3X18 bolt | |
| 43 | 90297 | Belt cover |
| 44 | 90264 | Front cover |
| 45 | 90346 | Front drive assy |
| 46 | 89919 | Ratchet Wheel L |
| 47 | 89920 | Ratchet Wheel R |
| 48 | 89889 | Washer |
| 49 | 90303 | Rachet pin |
| 50 | GB/T-14 M6X18 bolt | |
| 51 | 89885 | Wheel assy |
| 52 | 90296 | Inner cover of hub |
| 53 | 89876 | Outer cover of hub |
| 54 | 90325 | Height Adjustment Pull Rod |
| 55 | 73221 | Pull Spring for Pull Rod |
| 56 | M6 GB/T6183 nut | |
| 57 | M5/8.8 nut | |
| 58 | M5X10/8.8 bolt | |
| 59 | 90319 | Left handle bracket |
| 60 | 90320 | Left handle bracket |
| 61 | 90310 | Rear drive bracket |
| 62 | 88625 | Pin |
| 63 | 90265 | Grass clearing plate |
| 64 | M6X14/8.8 bolt | |
| 65 | ST4.2X14 bolt | |
| 66 | 88633 | Washer |
| 67 | 90295 | Inner cover of hub |
| 68 | 90315 | Limit plate |
