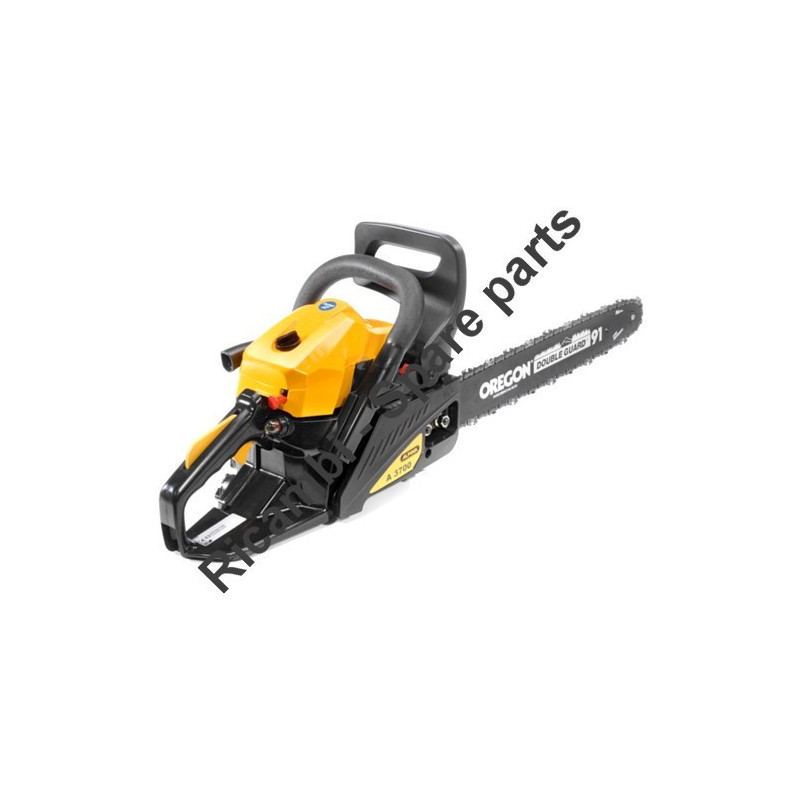

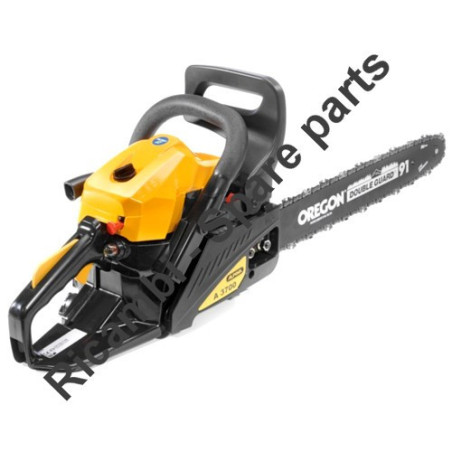

Alpina Spare Parts for Chain Saw A 3700
€1.56
Tax included
Alpina Spare Parts for Chain Saw A 3700
Alpina Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Chain Saw A 3700 - 228114000 - 10 - 2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw A 3700
Alpina Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Chain Saw A 3700 - 228114000 - 10 - 2017.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| Chain Saw A 3700/228114000-10-2017 Engine Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118800242/0 | Cylinder Assy -- > New Code 118805099/0 |
| 2 | 2432040 | Nut |
| 3 | 112581500/0 | Grower |
| 4 | 2312090 | Flat washer |
| 5 | 123878022/0 | Screw |
| 6 | 118800243/0 | Cover Plate |
| 7 | 118550582/0 | Muffler |
| 8 | 118550583/0 | Muffler Gasket |
| 9 | 118550584/0 | Screw |
| 10 | 2135030 | Screw |
| 12 | 118550585/0 | Intake Manifold Gasket |
| 13 | 118550586/0 | Intake Manifold |
| 14 | 118550587/0 | Carburettor Gasket |
| 15 | 118550588/0 | Cylinder Base Gasket |
| 16 | 118550589/0 | Piston Ring |
| 17 | 118800244/0 | Piston Pin |
| 18 | 118550590/0 | Circlip, Piston Pin |
| 19 | 118800245/0 | Piston |
| 20 | 118800246/0 | Bearing |
| 21 | 118550591/0 | Needle Bearing |
| 22 | 118800247/0 | Crankshaft |
| 23 | 123072005/0 | Flywheel Key |
| 24 | 118800248/0 | Left Crank Case |
| 25 | 3112030 | Ball Bearing |
| 26 | 118800249/0 | Crankcase Gasket |
| 27 | 118800250/0 | Crank Case |
| 29 | 118550592/0 | Seal Ring |
| 30 | 2135050 | Screw |
| 31 | 118550593/0 | Screw |
| 34 | 118550596/0 | Spike |
| 35 | 2135180 | Screw |
| 36 | 118550597/0 | Chain Guard |
| 37 | 118800251/0 | Screw |
| 38 | 118550598/0 | Bar Plate |
| 39 | 123878020/0 | Screw |
| 40 | 118550599/0 | Seal Ring |
| 41 | 118803925/0 | Electronic Ignition Coil + Digital Flywheel |
| 42 | 123878021/0 | Screw |
| 43 | 2321050 | Washer |
| 44 | 118550601/0 | Earth Cable |
| 45 | 123120004/0 | Nut |
| 46 | 118550602/0 | Flywheel ASS'Y- FOR ANALOG IGNITION COIL |
| 51 | 118550603/0 | Clutch Ass.Y |
| 55 | 118800252/0 | Sprocket Washer |
| 56 | 118550604/0 | Clutch Drum Assy |
| 57 | 118550605/0 | Needle Bearing |
| 58 | 118550606/0 | Worm Screw |
| 59 | 118800253/0 | Oil Pump Cap |
| 60 | 118550607/0 | Oil Pump Assy |
| 61 | 118800254/0 | Tube |
| 62 | 118550608/0 | Washer |
| 63 | 118800255/0 | Oil Pipe |
| 65 | 118800256/0 | Oil Tube Tie-In |
| 66 | 118550609/0 | Oil Filter Ass.Y |
| 67 | 118802952/0 | Oil Nozzle |
| 70 | 8724091 | Diaphragm Gasket Set |
| 71 | 118800210/0 | Carburetor |
| 72 | 118800211/0 | Intake Manifold |
| 73 | 118800212/0 | Screw |
| 74 | 118800203/0 | Primer |
| 75 | 118800204/0 | Primer Line |
| 76 | 3657050 | Spark Plug Spring |
| 77 | 3748880 | Spark plug cap |
| Chain Saw A 3700/228114000-10-2017 Housing Pag.2 | ||
| 1 | 118800183/0 | Clutch Ho. W/Br. Assy Black |
| 2 | 123878017/0 | Screw |
| 3 | 123044213/0 | Bushing |
| 4 | 123044214/0 | Bushing |
| 5 | 118800184/0 | Hand Guard |
| 6 | 118800748/0 | Balance Weigth |
| 7 | 123430572/0 | Spring |
| 8 | 118800747/0 | Spring |
| 9 | 123657007/0 | Washer |
| 10 | 112154320/0 | Nut |
| 11 | 323670001/0 | Plate |
| 12 | 118800745/0 | Front Guard Spring |
| 13 | 118800257/0 | Bar Plate |
| 14 | 123753001/0 | Pin |
| 15 | 383315051/0 | Chain Brake Lever |
| 17 | 123753000/0 | Needle |
| 18 | 323315067/0 | Lever |
| 20 | 118800185/0 | Brake Band |
| 21 | 123878023/0 | Screw |
| 22 | 323109525/0 | Brake Spring Cover |
| 25 | 118800186/0 | Nut |
| 26 | 118800187/0 | Nut |
| 27 | 118800258/0 | Nut |
| 28 | 118800259/0 | Filter Cover Yellow |
| 29 | 118800188/0 | Air Filter Assy |
| 30 | 118800261/0 | Cylinder Cover Yellow |
| 31 | 118800742/0 | Grommet |
| 34 | 118800189/0 | Screw |
| 35 | 118800263/0 | Grommet |
| 37 | 118800264/0 | Grommet Air-Lever |
| 38 | 118800190/0 | Choke Lever |
| 40 | 118800191/0 | Starter Assy Black |
| 44 | 118800192/0 | Starter Pulley |
| 46 | 118800278/0 | Starter Spring |
| 47 | 118800193/0 | Starter Handle |
| 50 | 123878025/0 | Screw |
| 51 | 118800266/0 | Shock Absorber |
| 52 | 123878022/0 | Screw |
| 53 | 118800194/0 | Shock Absorber |
| 54 | 118800195/0 | Cap |
| 55 | 118800196/0 | Spring |
| 56 | 118800197/0 | Handle |
| 59 | 323208402/0 | Plate |
| 60 | 118800198/0 | Breather Valve Ass.Y |
| 64 | 118800744/0 | Grommet |
| 65 | 112728124/0 | Screw |
| 66 | 118800255/0 | Pickup Oil |
| 67 | 118800214/0 | Fuel Filter kit |
| 68 | 118800200/0 | Handle Assy |
| 69 | 118800201/0 | Spring |
| 72 | 118800199/0 | Fuel Filter |
| 76 | 118800202/0 | Switch |
| 79 | 118800205/0 | Safety Lever |
| 80 | 118800206/0 | Spring |
| 81 | 118800207/0 | Throttle Lever |
| 82 | 118800208/0 | Spring |
| 83 | 118800209/0 | Handle Cover |
| 88 | 118800213/0 | Stop Wire |
| 91 | 118800215/0 | Fuel Tank Cap Assy |
| 92 | 118800216/0 | Oil Cap Assy |
| 93 | 118550594/0 | Chain Tightener Block |
| 94 | 118550595/0 | Screw |
| 95 | 1421404-01A | Bar 14” (35 cm) 3/8” .050” (1.3 mm) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina A3700 - 228114000
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
