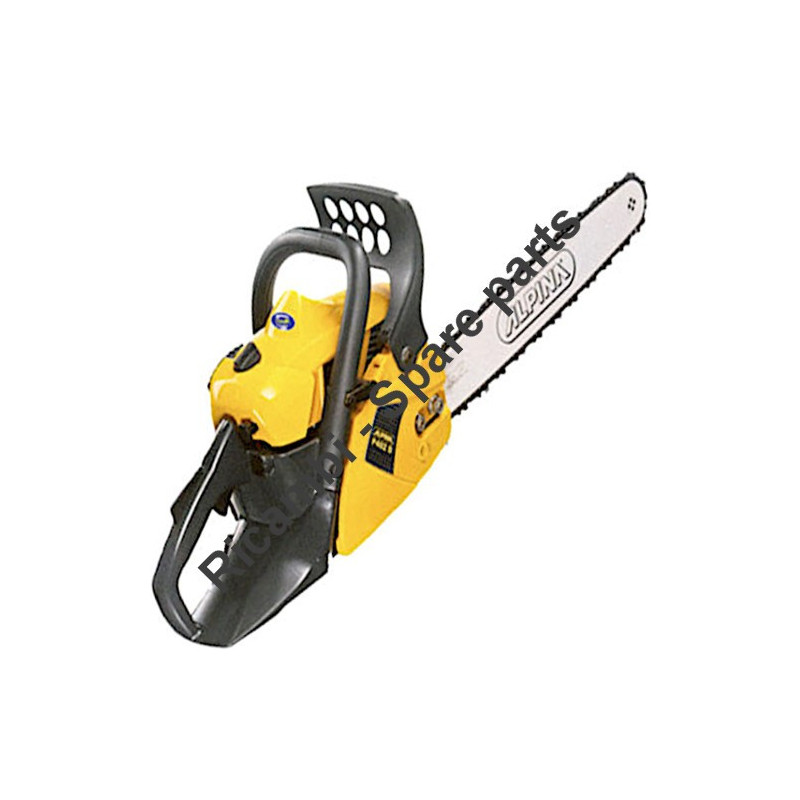

Alpina Spare Parts for Chain Saw P 402 S
€0.71
Tax included
Alpina Spare Parts for Chain Saw P 402 S
Alpina genuine spare parts or replacement parts for to repair Chain Saw P 402 S (2010) 223614000/0.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw P 402 S
Alpina genuine spare parts or replacement parts for to repair Chain Saw P 402 S (2010) 223614000/0.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| ALPINA P 402 S (2010) 223614000/08 - ENGINE Pag.1 | ||
| # | Part Num. | Description |
| 1 | 123120004/0 | Nut |
| 2 | 383880002/0 | Flywheel Assy |
| 3 | 6995281 | Crankase Ass.Y |
| 4 | 6995278 | Seal Ring |
| 5 | 6995277 | Bearing |
| 7 | 6995255 | Elastic Ring |
| 8 | 6995257 | Seal Ring |
| 9 | 6995028 | Pin |
| 10 | 6995276 | Screw |
| 11 | 6995314 | Crankshaft |
| 12 | 6995265 | Washer |
| 13 | 6995304 | Bearing |
| 14 | 6995256 | Washer, Piston Pin |
| 15 | 6995313 | Piston Pin |
| 16 | 6995287 | Piston |
| 17 | 6995258 | Piston Ring |
| 19 | 6995284 | Cylinder Assy |
| 20 | 123878020/0 | Screw |
| 21 | 6995320 | Cover |
| 22 | 6995322 | Gasket |
| 23 | 6995321 | Cover |
| 24 | 23051000/0 | Spark Plug |
| 25 | 6995319 | Screw |
| 26 | 123878021/0 | Screw |
| 27 | 383044000/0 | Electronic Coil |
| 30 | 123878028/0 | Screw |
| 31 | 123280012/0 | Gasket |
| 32 | 183740000/0 | Muffler Assy |
| 33 | 323140055/0 | Deflector |
| 34 | 123878022/0 | Screw |
| 35 | 2432040 | Nut |
| 41 | 123280015/0 | Gasket |
| 43 | 383073500/0 | Intake Manifold |
| 44 | 123280011/0 | Gasket |
| 45 | 123054015/0 | Carburetor |
| 46 | 123878024/0 | Screw |
| 47 | 323073503/0 | Air Manifold |
| 48 | 123878019/0 | Screw |
| 49 | 323275015/0 | Gasket |
| 50 | 383215001/0 | Clutch Ass.Y |
| 51 | 123430566/0 | Spring |
| 52 | 323657006/0 | Sprocket Washer |
| 53 | 323050003/0 | Drum Ass'Y, Clutch |
| 54 | 123235000/0 | Needle Bearing |
| 55 | 383594502/0 | Oil Pump Assy |
| 55 | 383594503/0 | Oil Pump Assy |
| 56 | 323878026/0 | Worm Screw |
| 57 | 123878021/0 | Screw |
| 58 | 323109524/0 | Cover Pump |
| 60 | 323867005/0 | Tube |
| 61 | 323867004/0 | Pickup Oil |
| 62 | 323220002/0 | Oil Filter Ass.Y |
| 63 | 323652503/0 | Washer |
| 71 | 123878022/0 | Screw |
| 72 | 123878024/0 | Screw |
| 73 | 323057003/0 | Crankase Ass.Y |
| 74 | 323790010/0 | Cap |
| 75 | 123878024/0 | Screw |
| 76 | 323275008/0 | Shock Absorber |
| 77 | 323275009/0 | Shock Absorber |
| 78 | 323790011/0 | Cap |
| 81 | 323202000/0 | Chain Guard |
| 82 | 123878018/0 | Screw |
| 83 | 123878020/0 | Screw |
| 84 | 323311005/0 | Plate |
| 100 | 6995283 | Gasket Set |
| ALPINA P 402 S (2010) 223614000/08 - HOUSING Pag.2 | ||
| 1 | 123878024/0 | Screw |
| 2 | 383058018/0 | Starter Assy Yellow |
| 3 | 323044211/0 | Grommet |
| 4 | 323300004/0 | Starter Handle |
| 5 | 123234002/0 | Starter Cord |
| 6 | 123430577/0 | Starter Spring |
| 7 | 323604003/0 | Starter Pulley |
| 8 | 3613420 1 | Washer |
| 9 | 123878024/0 | Screw |
| 10 | 323107503/0 | Air Conveyor |
| 15 | 383300015/0 | Handle Assy |
| 16 | 123430567/0 | Spring |
| 17 | 323315063/0 | Throttle Lever |
| 21 | 123835001/0 | Throttle Rod |
| 22 | 323315064/0 | Safety Lever |
| 23 | 323109520/0 | Handle, Upper Part |
| 24 | 123878025/0 | Screw |
| 25 | 323790009/0 | Cap |
| 26 | 383790003/0 | Cap Oil Tank |
| 28 | 3210970 1 | Stop Switch |
| 29 | 123065018/0 | Stop Wire |
| 30 | 123065017/0 | Earth Cable |
| 31 | 323275013/0 | Grommet |
| 32 | 383790002/0 | Fuel Tank-Cap Ass.Y |
| 33 | 323867003/0 | Fuel Line |
| 34 | 183520000/0 | Intake Filter Assy |
| 35 | 323275011/0 | Grommet |
| 36 | 183875001/0 | Breather Valve Ass.Y |
| 38 | 123878024/0 | Screw |
| 39 | 123430568/0 | Spring |
| 40 | 123878022/0 | Screw |
| 41 | 123878024/0 | Screw |
| 42 | 323208402/0 | Plate |
| 43 | 123430569/0 | Spring |
| 44 | 123878024/0 | Screw |
| 45 | 123878024/0 | Screw |
| 46 | 323087005/1 | Cylinder Cover Yellow |
| 47 | 323653500/0 | Cap |
| 49 | 323796006/0 | Grommet |
| 50 | 323796007/0 | Grommet |
| 51 | 323315065/0 | Choke Lever |
| 52 | 383220000/0 | Air Filter |
| 53 | 323090019/0 | Filter Cover Yellow |
| 54 | 383593501/0 | Knob Ass'Y |
| 61 | 123878025/0 | Screw |
| 62 | 323105001/0 | Handle |
| 65 | 123900115/0 | Guide Bar 13inch 13" 13" 325" .050" (1.3 mm) |
| 66 | 4113710 | Chain 13inch 13" 325" .050" (1.3 mm) - 56E |
| 71 | 383059013/0 | Clutch Ho. W/Br. Assy Yellow |
| 72 | 123878023/0 | Screw |
| 73 | 323109525/0 | Brake Cover |
| 74 | 112154320/0 | Nut |
| 75 | 123657007/0 | Washer |
| 76 | 123430573/0 | Spring |
| 77 | 123753001/0 | Roller |
| 78 | 383315051/0 | Chain Brake Lever |
| 79 | 123044213/0 | Bushing |
| 80 | 123430572/0 | Spring |
| 81 | 323080001/0 | Balance Weigth |
| 82 | 123044213/0 | Bushing |
| 83 | 123878017/0 | Screw |
| 84 | 323670001/0 | Plate |
| 85 | 123430573/0 | Spring |
| 86 | 123430565/0 | Spring |
| 87 | 323315067/0 | Lever |
| 88 | 123753000/0 | Needle |
| 89 | 323448003/0 | Brake Band |
| 94 | 323311006/0 | Plate |
| 95 | 123878023/0 | Screw |
| 96 | 2670270 | Dado |
| 97 | 123878029/0 | Screw |
| 98 | 112000910/0 | Elastic Ring |
| 99 | 3614310 | TBar Adjusting Block |
| 100 | 4181297 | Chain Cover |
