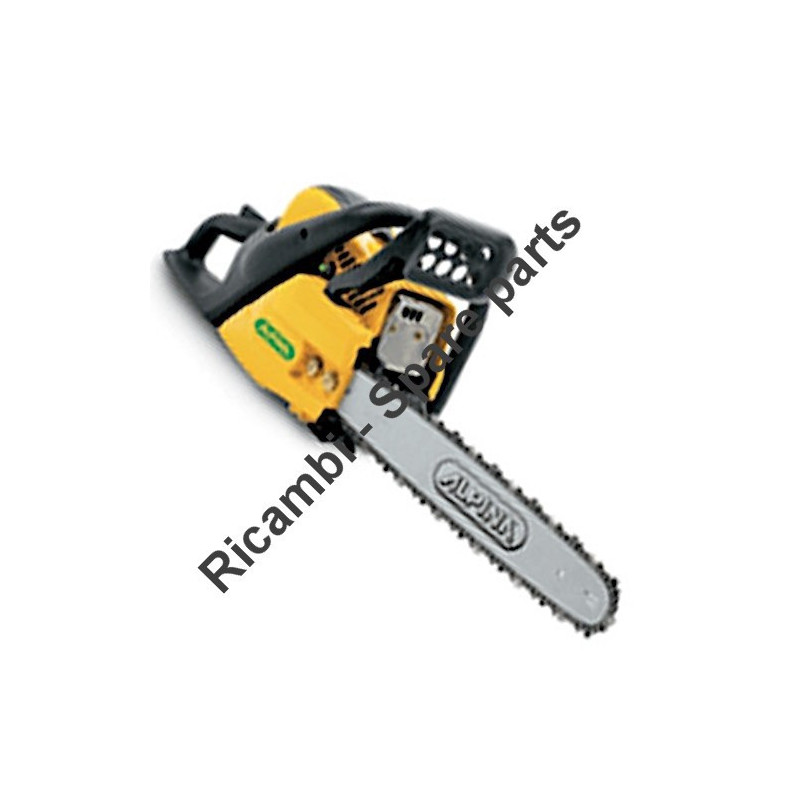

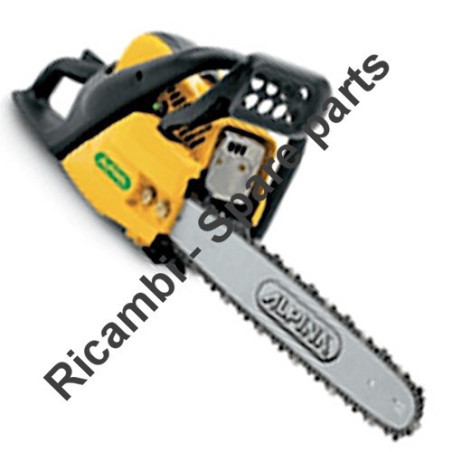

Alpina Spare Parts for Chain Saw P 365 (2007) 222614010
€0.52
Tax included
Alpina Spare Parts for Chain Saw P 365 (2007) 222614010
ALPINA Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw P 365 (2007) 222614010/ALP.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw P 365 (2007) 222614010
ALPINA Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw P 365 (2007) 222614010/ALP.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| ALPINA P 365 (2007) 222614010/ALP pag.1 | ||
| # | Part Num. | Description |
| 1 | 4252340 | Carter Assy Yellow |
| 2 | 3784030 | Starter Cord |
| 3 | 3750067 | Starter handle |
| 4 | 2123030 | Lives |
| 5 | 4611480 | Starter Spring |
| 6 | 3623590 | Bushing |
| 7 | 3723640 | Disk |
| 8 | 3750130 | Starter Pulley |
| 9 | 3750080 | Start up |
| 10 | 3750140 | Starter Hook Guide |
| 11 | 3657480 | Retainer |
| ALPINA P 365 (2007) 222614010/ALP pag.2 | ||
| 1 | 2432050 | Nut |
| 2 | 2312080 | Washer |
| 3 | 3L4541210/1 | Flywheel From 01-september-2005 |
| 3 | 4541210 | Flywheel To 31-august-2005 |
| 4 | 3151010 | Flywheel Tab |
| 5 | 3121071 | Seal ring 5a |
| 5 | 3121072 | Seal ring 5b |
| 6 | 3112030 | Ball bearing |
| 7 | 3614480 | Washer |
| 8 | 4251960/1 | Crankshaft |
| 9 | 3750311 | Oil Pump Cover - DISCONTINUED |
| 10 | 3L4252200/1 | Clutch Assy |
| 11 | 3114190 | Roller Cage |
| 12 | 4121208 | Clutch Drum |
| 13 | 3612620 | Pinion Washer - DISCONTINUED |
| 14 | 112000955/0 | Benzing ring |
| 15 | 3356050 | Circlip |
| 18 | 3158260 | Piston pin |
| 19 | 3116100 | Needle Bearing |
| 20 | 2135030 | Screw |
| 21 | 2330020 | Washer |
| 22 | 3123220 | Piston Ring Ø 39 |
| 23 | 3L8541360/1 | Piston Assy |
| 24 | 3L8541370/1 | Cylinder - Piston Assy |
| 25 | 3210024 | Spark Plug |
| 26 | 3748880 | Spark Plug cap |
| 27 | 3657050 | Spark Plug Spring |
| 28 | 3721530 | Protection |
| 29 | 3210970 | Stop switch |
| 32 | 3211380 | Earth cable |
| 33 | 3L3211350/1 | Electronic coil |
| 34 | 3654480 | Spring |
| 35 | 2321150 | Washer |
| 36 | 2123140 | Screw |
| 37 | 2123020 | Screw |
| ALPINA P 365 (2007) 222614010/ALP pag.3 | ||
| 1 | 2135040 | Screw |
| 2 | 4122040 | Muffler Assy |
| 3 | 3724270 | Muffler gasket |
| 5 | 3786130 | Tube |
| 7 | 3743407 | Choke Lever |
| 8 | 8744781 | Intake Manifold Assy |
| 9 | 2135210 | Screw |
| 10 | 3745650 | Air Lever Grommet |
| 11 | 123054003/2 | Carburetor |
| 12 | 3724160 | Heath Block |
| 13 | 4252480 | Throttle Cable With Sheath |
| 14 | 3750180 | Intake Manifold |
| 15 | 3724300 | Cylinder Manifold Gasket |
| 16 | 3744740 | Air Purge Pump |
| 18 | 8724091 | Diaph. - Gasket Set |
| 19 | 8724300 | Gaskets Set |
| 20 | 3721560 | Cylinder gasket |
| 21 | 3211690 | Earth Cable |
| ALPINA P 365 (2007) 222614010/ALP pag.4 | ||
| 2 | 4252010 | Oil Cap Ass.y |
| 3 | 4252010 | Oil Cap Ass.y |
| 4 | 4252220 | Oil Pump Ass.y |
| 5 | 3744790 | Grommet - DISCONTINUED |
| 6 | 2123020 | Screw |
| 7 | 3614810 | Retainer |
| 8 | 23900110/0 | Guide Bar 14inch |
| 9 | 2653470 | Screw |
| 10 | 123878001/0 | Screw |
| 11 | 3641970 | Chain Tightener |
| 12 | 3741360 | Oil cap / Supply |
| 13 | 3614930 | Insert |
| 14 | 3L4353090/1 | Oil Breath Tube Ass.y |
| 15 | 323311002/0 | Bar Plate |
| 16 | 4113702 | Chain 14inch |
| 17 | 4252330 | Clutch Housing Yellow Ass.y |
| 18 | 3786050 | Fuel Line |
| 19 | 4253290 | Intake Filter Ass.y |
| 20 | 2670270 | Nut |
| 21 | 323650100/0 | Screw |
| 22 | 4253680 | Breather Valve Ass.y |
| 23 | 2123060 | Screw |
| 24 | 4181297 | Bar cover |
| 28 | 2123060 | Screw |
| ALPINA P 365 (2007) 222614010/ALP pag.5 | ||
| 1 | 3614740 | Brake band |
| 2 | 2312150 | Washer |
| 3 | 2123060 | Screw |
| 4 | 4252310 | Chain Brake Lever |
| 5 | 3180500 | Needle |
| 6 | 3614780 | Spring |
| 8 | 2123100 | Screw |
| 9 | 3654420 | Brake Spring |
| 10 | 3614490 | Brake sheet |
| 11 | 3180510 | Needle |
| 12 | 3614330 | Bush - DISCONTINUED |
| 14 | 2123030 | Screw |
| 15 | 4252350 | Cylinder Cover Yellow |
| 16 | 4563267 | Hand Guard W / Bushing |
| 17 | 8781530 | Air filter |
| 19 | 3750227 | Air Purge Pump Button Cap |
| 20 | 3654430 | Spring |
| 21 | 3750217 | Air Purge Pump |
| ALPINA P 365 (2007) 222614010/ALP pag.6 | ||
| 1 | 4563147 | Handle |
| 2 | 4563157 | Handle Cover |
| 3 | 3743587 | Throttle Lever For Cable |
| 4 | 1L3654440/1 | Spring |
| 5 | 3743597 | Safety Lever |
| 6 | 3654400 | Spring |
| 7 | 3614800 | Washer |
| 8 | 2123100 | Screw |
| 9 | 2123031 | Screw |
| 10 | 2135040 | Screw |
| 11 | 2432040 | Nut |
| 12 | 2312090 | Washer |
