AGP Europe Spare Parts for AS200 Drill Stand
€23.96
Tax included
AGP Europe Spare Parts for AS200 Drill Stand
We have the original Spares AGP Europe Spare Parts for AS200 Drill Stand the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your AS200 Drill Stand. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AGP Europe Spare Parts for AS200 Drill Stand
We have the original Spares AGP Europe Spare Parts for AS200 Drill Stand the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your AS200 Drill Stand. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

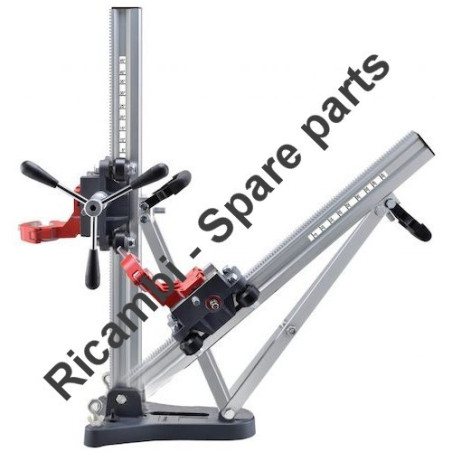

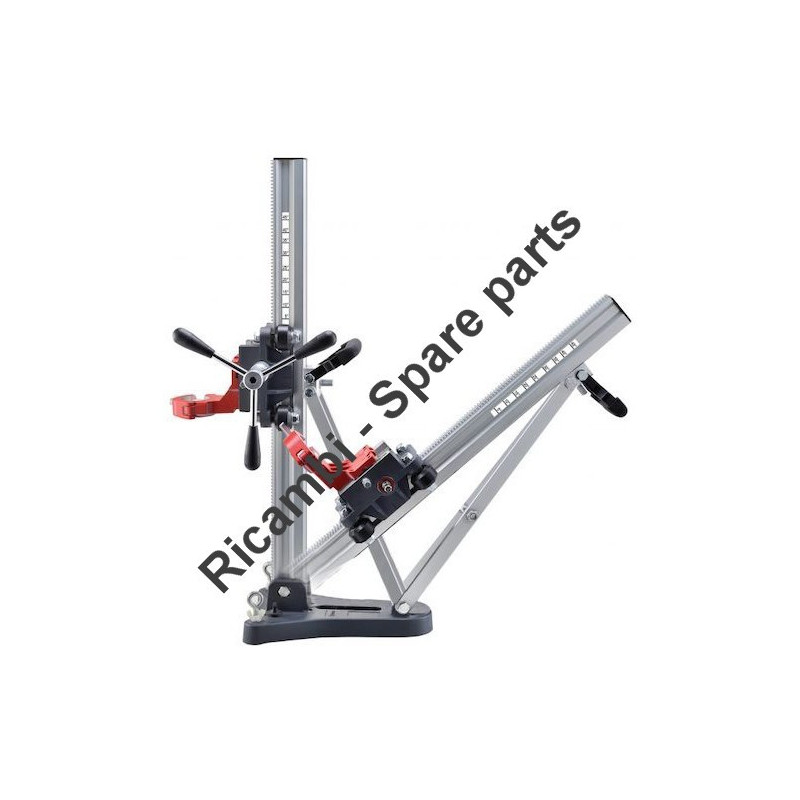

AS200 Drill Stand
A versatile drill stand for hand-held drilling motors. Drilling capacity up to Ø202 mm
In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
| MODEL：AS200 Drill Stand (AGP Europe) Version 2.2 | ||
| NO. | Code | Parts Name |
| 1.) | 302-04331-907-001 | CLAMP SCREW (M12) |
| 2.) | 424-132320-00 | FLAT WASHER (1/2"xØ23x2) |
| 3.) | N/A | |
| 4.) | 0299-0036-00000-005 | MOUNTING SPACER |
| 5.) | 415-M05012080-080 | FLAT HEAD MACHINE SCREW (M5x12xP0.8) |
| 6.) | 302-03135-901-001 | CRADLE PLATE |
| 7.) | 0201-0073-00003-002 | CARRIAGE (GRAY-RAL7016) |
| 8.) | 302-04233-914-001 | LOCK SCREW |
| 9.) | 422-S15-0 | EXTERNAL CIRCLIP (S-15) |
| 10.) | 302-05508-000-006 | BALL BEARING (6002) |
| 11.) | 302-04012-903-005 | CRANK SPINDLE |
| 12.) | 305-00095-000-001 | BUBBLE LEVEL |
| 13.) | 305-00093-000-001 | BULLS-EYE LEVEL |
| 14.) | 303-01176-004-001 | PLASTIC PAD |
| 15.) | 302-04475-901-001 | SWIVEL LOCK TAB (M10xP1.5) |
| 16.) | 418-M12000175-080 | NYLOCK NUT (M12xP1.75) |
| 17.) | 426-120000-00 | EXTERNAL STAR WASHER (M12) |
| 18.) | 302-04230-903-001 | ECCENTRIC SHAFT |
| 19.) | 302-04145-907-002 | ROLLER AXLE |
| 20.) | 302-05515-000-003 | BALL BEARING (6201) |
| 21.) | 302-04229-004-001 | GUIDE ROLLER |
| 22.) | 0299-0035-00000-003 | CRANK BOSS |
| 23.) | 299-0068-00004-001 | CRANK HANDLE (BLACK) |
| 24.) | N/A | |
| 25.) | 302-03218-901-001 | COLUMN CAP PLATE |
| 26.) | 201-0070-00913-009 | COLUMN |
| 27.) | 0299-0011-00026-001 | BASE (GRAY-RAL7016) |
| 28.) | 302-04177-903-003 | PIVOT BOLT |
| 29.) | 424-122320-20 | FLAT WASHER (Ø12xØ23x2.0) |
| 30.) | 302-04267-903-003 | EYE BOLT |
| 31.) | 305-00376-005-001 | WING NUT (M10xP1.5) |
| 32.) | 424-102320-20 | FLAT WASHER (Ø10xØ23x2) |
| 33.) | 4105-M10000150-080 | ACORN NUT (M10xP1.5) |
| 34.) | 203-0064-00903-002 | THUMB SCREW (M6x16xP1.0) |
| 35.) | 303-01322-000-003 | FLAT WASHER |
| 36.) | 201-0042-00906-005 | BUTTRESS BAR |
| 37.) | 302-04295-914-003 | SPACER |
| 38.) | 302-04177-903-002 | PIVOT BOLT |
| 39.) | 401-M10095150-080 | HEX BOLT (M10x95LxP1.5) |
| 40.) | 418-M10000150-080 | NYLOCK NUT (M10xP1.5) |
| 41.) | 201-0071-00906-003 | BUTTRESS LOCK |
| 42.) | 302-03133-912-001 | LOCK PLATE |
| 43.) | 302-04153-914-001 | ANGLE LOCK CLAMP |
| 44.) | 406-M08085125-080 | SOCKET CAP SCREW (M8x85xP1.25) |
| 45.) | 202-0036-00902-002 | FRONT HANDLE |
| 46.) | 424-082030-20 | FLAT WASHER (Ø8xØ20x3) |
| 47.) | 418-M08000125-080 | NYLOCK NUT (M8xP1.25) |
| 48.) | N/A | |
| 49.) | N/A | |
| 50.) | N/A | |
| 51.) | 422-E07-0 | E-CLIP (E-7) |
| 52.) | 0299-0279-00164-001 | CLAMP BRACKET (Ø60)(RED-187C) |
| 53.) | 0202-0144-00914-001 | HEX ADAPTOR |
| 54.) | 302-04051-901-022 | HEAD LOCKING KNOB (Ø12xØ16x9.1) |
| A1.) | N/A | |
| A2.) | 0299-0251-0000-001 | EXTENSION MAST BRACKET |
| A3.) | 301-03038-906-001 | LASER CONNECTOR |
| A4.) | 404-M04006070-050 | SOCKET SET SCREW (M4x6xP0.7) |
| A5.) | 305-00378-000-001 | LASER POINTER UNIT |
| A6.) | 496-M05012001-080 | SOCKET CAP SCREW (M5x12xP0.8) |
| A7.) | 424-051912-20 | FLAT WASHER (Ø5xØ19x1.2) |
| A8.) | N/A | |
| A9.) | 303-02013-004-004 | END CAP |
| A10.) | 302-04026-000-013 | SPRING (Ø0.7xØ12xØ15x5Tx21L) |
| A11.) | 303-01366-004-001 | WATER COLLECTOR BODY |
| A12.) | 0203-0131-00000-006 | SEAL(760MM) |
| A13.) | 303-02073-000-001 | MEMBRANE |
| A14.) | 302-03244-914-001 | MOUNTING RING |
| A15.) | 496-M04008001-080 | TRUSS HEAD TAPPING SCREW-A (M4x8) |
| A16.) | 203-0064-00903-002 | THUMB SCREW (M6x16xP1.0) |
| A17.) | 302-03243-914-002 | ANGLE BRACKET |
| A18.) | 0202-0132-00914-001 | RING BRACKET |
| A19.) | 301-03038-906-002 | LASER CONNECTOR |
| Optional | ||
| OP1.) | 302-04464-903-001 | ANCHORING PLATE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AS200 Version 2.2
