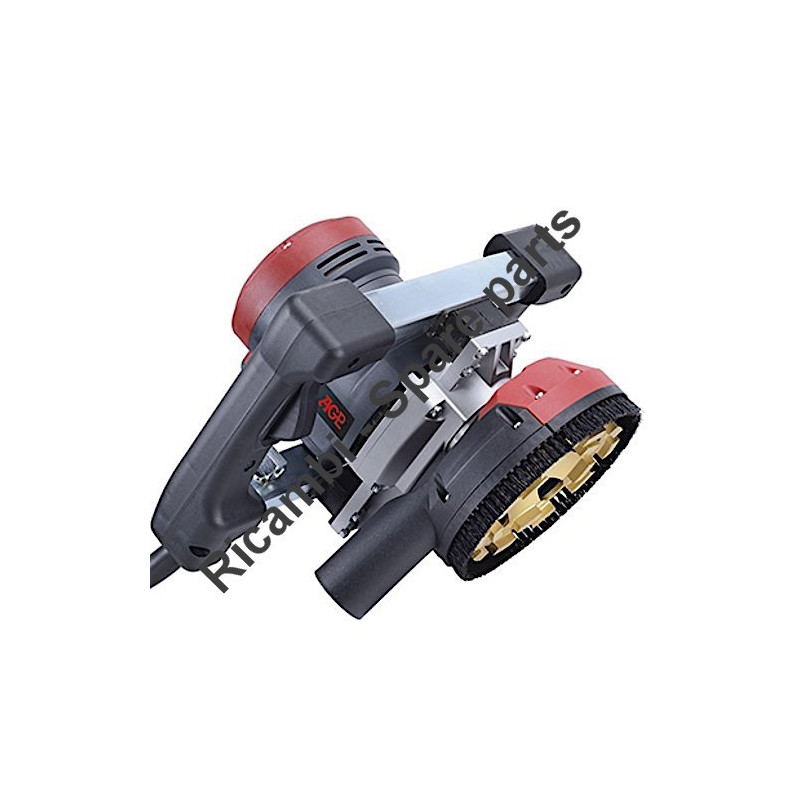

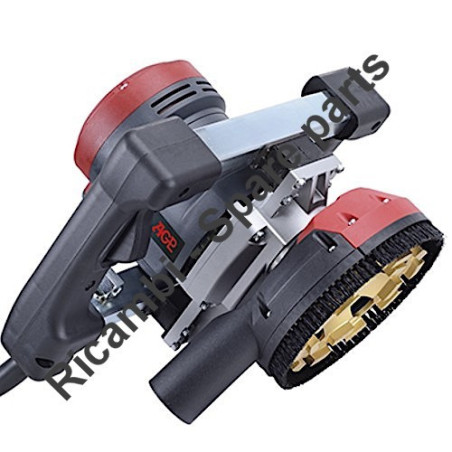

AGP Europe Spare Parts for Concrete Grinder BG5
€0.96
Tax included
AGP Europe Spare Parts for Concrete Grinder BG5
We have the original Spares AGP Europe Spare Parts for Concrete Grinder BG5 the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Concrete Grinder BG5. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AGP Europe Spare Parts for Concrete Grinder BG5
We have the original Spares AGP Europe Spare Parts for Concrete Grinder BG5 the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Concrete Grinder BG5. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
| MODEL：BG5 High Frequency Brushless Concrete Grinder (AGP Europe) Version 1.5 | ||
| NO. | Code | Parts Name |
| 1.) | 403-M04012003-080 | PANHEAD TAPPING SCREW-B (M4x12) |
| 2.) | 303-01394-004-001 | PLUG CAP |
| 3.) | 303-02009-004-095 | O-RING (AS-137) |
| 4.) | 0299-0269-00000-001 | MOTOR COUPLING CABLE SET |
| 5.) | 4106-M04000070-000 | CAP NUT |
| 6.) | 403-M04014003-160 | PANHEAD TAPPING SCREW-B (M4x14) |
| 7.) | 303-01003-004-002 | CABLE CLIP |
| 8.) | 0299-0034-00000-001 | HANDLE HALF-RIGHT (BLACK) |
| 9.) | 302-04171-903-001 | SPRING (Ø1.0 x Ø6.4 x Ø8.4 x 8.5T x 35L) |
| 10.) | N/A | |
| 11.) | 303-01001-004-015 | HANDLE HALF-RIGHT (BLACK) |
| 12.) | 403-M04035003-160 | PANHEAD TAPPING SCREW-B (M4x35) |
| 13.) | 403-M04020001-160 | PANHEAD TAPPING SCREW-A (M4x20) |
| 14.) | 403-M04025003-080 | PANHEAD TAPPING SCREW-B (M4x25) |
| 15.) | 303-01002-004-012 | HANDLE HALF-LEFT (BLACK) |
| 16.) | 303-01002-004-013 | HANDLE HALF-LEFT (BLACK) |
| 17.) | 305-03358-000-001 | RUBBER PLUG |
| 18.) | 406-M04006070-080 | SOCKET CAP SCREW (M4x6xP0.7) |
| 19.) | 302-04450-903-001 | CROSS BAR LOWER |
| 20.) | 302-04450-903-002 | CROSS BAR UPPER |
| 21.) | 299-0178-00000-001 | ANTI-VIBRATION MOUNT |
| 22.) | 303-01134-164-001 | TAIL COVER |
| 23.) | 302-05514-000-009 | BALL BEARING (6200-ZZ KOYO JAPAN) |
| 24.) | 0299-0004-00000-044 | STATOR |
| 25.) | 302-04541-914-002 | SPACER |
| 26.) | 0299-0268-00000-002 | MAGNET HOLDER |
| 27.) | 299-0001-00000-020 | ROTOR |
| 28.) | 302-03249-000-001 | ROTOR END PLATE |
| 29.) | 302-04541-914-001 | SPACER |
| 30.) | 403-M04016003-160 | PANHEAD TAPPING SCREW-B (M4x16) |
| 31.) | 303-01381-026-001 | ELECTRONICS COVER |
| 32.) | 0299-0135-00000-004 | LED INDICATOR LIGHT |
| 33.) | 403-M04010003-160 | PANHEAD TAPPING SCREW-B (M4x10) |
| 34.) | 0204-0021-00000-038 | ELECTRONICS UNIT |
| 35.) | 303-01251-026-046 | MOTOR HOUSING |
| 36.) | 302-05508-000-003 | BALL BEARING (6002 KOYO JAPAN) |
| 37.) | 496-M04008001-040 | TRUSS HEAD TAPPING SCREW-A (M4x8) |
| 38.) | 303-01111-000-003 | FAN |
| 39.) | 302-05516-000-007 | BALL BEARING (6202 KOYO JAPAN) |
| 40.) | 201-0003-00001-059 | GEAR PLATE (SILVER) |
| 41.) | 302-06018-000-015 | BEVEL PINION GEAR (M1.5x10T) |
| 42.) | 302-05502-000-001 | BALL BEARING (608) |
| 43.) | 302-06008-000-063 | OUTPUT GEAR (M1.5x31T) |
| 44.) | 201-0002-00001-086 | GEAR HOUSING (SILVER) |
| 45.) | 406-M04012070-080 | SOCKET CAP SCREW (M4x12xP0.7) |
| 46.) | 425-050000-00 | SPRING WASHER (M5) |
| 47.) | 403-M05040003-160 | PANHEAD TAPPING SCREW-B (M5x40) |
| 48.) | 422-S17-0 | EXTERNAL CIRCLIP (S-17) |
| 49.) | 302-05523-000-002 | BALL BEARING (6303) |
| 50.) | 421-05012-10 | PARALLEL KEY (5x5x12) |
| 51.) | 302-04003-000-170 | M14xP2.0-88mm |
| 52.) | 303-02002-004-053 | OIL SEAL (Ø24xØ32x4) |
| 53.) | N/A | |
| 54.) | 406-M04010070-160 | SOCKET CAP SCREW (M4x10xP0.7) |
| 55.) | 413-M04010003-020 | FLAT HEAD TAPPING SCREW-B (M4x10) |
| 56.) | 303-01300-004-001 | COVER PANEL (BLACK) |
| 57.) | 303-01331-164-001 | HALF-MOON DOOR (RED-187C) |
| 58.) | 203-0112-00004-005 | CLEANING BRUSH |
| 59.) | 302-04026-000-010 | SPRING (Ø0.55xØ4.9xØ6x15Lx6T) |
| 60.) | 303-01081-004-007 | DUST SKIRT (BLACK) |
| 61.) | 203-0112-00004-006 | CLEANING BRUSH |
| 62.) | 202-0145-00901-001 | SHOULDER BOLT (M4xP0.7x26L) |
| 63.) | 302-04222-903-008 | INNER FLANGE (Ø22.2 / Ø25.4) |
| 64.) | 302-04114-901-004 | OUTER FLANGE (M14) |
| 65.) | 305-00010-904-013 | SOCKET HEX KEY (M6) |
| 66.) | 305-00039-901-001 | LOCK NUT WRENCH (30MM) |
| 67.) | 302-04179-901-002 | FACE SPANNER WRENCH (78MM) |
| 68.) | 4133-0 | HEAT SHRINK BUTT CONNECTOR |
| 69.) | 423-25100-2 | ZIP TIE (2.5x100MM) |
| 70.) | 302-03182-903-005 | BEARING PLATE |
| 71.) | N/A | |
| 72.) | 0299-0014-00004-020 | SWITCH ACTUATOR (BLACK)(LOCK-ON) |
