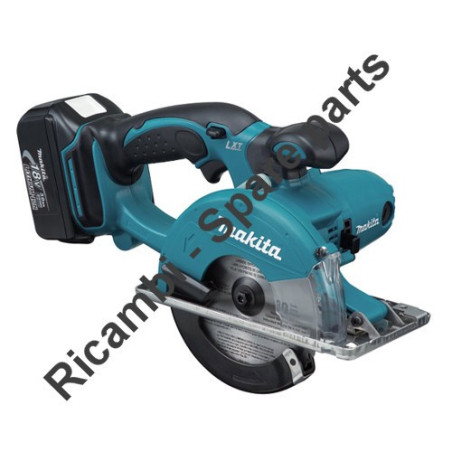

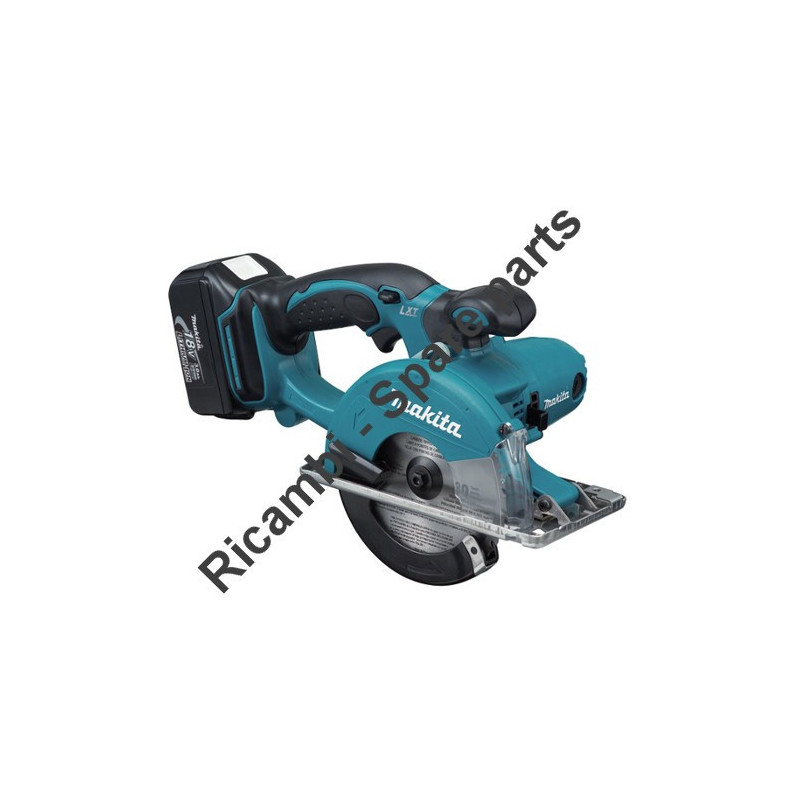

Makita Spare Parts for Cordless Circular Saw for Metal BCS550Z
€11.73
Tax included
Makita Spare Parts for Cordless Circular Saw for Metal BCS550Z
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forCordless Circular Saw for Metal BCS550Z.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Cordless Circular Saw for Metal BCS550Z
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forCordless Circular Saw for Metal BCS550Z.
- Brake electric motor
- Ergonomic soft grip coating
- LED lighting
In the following table, look for the model and the respective parts of the code.
| Cordless Circular Saw for Metal BCS550Z | ||
| 1 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 2 | 643807-7 | PLUG HOLDER BRUSHES 6347D |
| 3 | 191971-3 | CHARCOALS CB-430 |
| 4 | 188209-5 | HOUSING MOTOR BCS550R |
| 6 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 7 | 862979-1 | LABEL BCS550R |
| 8 | 638925-4 | SUPPORT BRUSHES BCS550 |
| 9 | 638420-4 | STATORE PERMANENT MAGNET |
| 10 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 11 | 419661-9 | HANDLE SX BCS550R |
| 12 | 231469-9 | SPRING 4 X 6811DW |
| 13 | 419664-3 | LEVER BCS550R |
| 14 | 651956-6 | SWITCH TG72BD X 5621RDW |
| 15 | 231469-9 | SPRING 4 X 6811DW |
| 16 | 419665-1 | LEVER SWITCH BCS550R |
| 17 | 620260-4 | REGULATOR |
| 18 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 19 | 453154-6 | HANDLE DX |
| 20 | 644808-8 | TERMINAL BLS713 X-BHP451 |
| 22 | 419609-1 | GRID BCS550R |
| 23 | 421977-0 | RUBBER RING 13 X BGA452 |
| 24 | 619290-0 | INDUCED BCS550R |
| 25 | 345643-4 | LOCKING RING BCS550R |
| 26 | 233117-6 | SPRING COMP. 6 X GA7010C |
| 27 | 419656-2 | HOUSING GEAR BCS550R |
| 28 | 213560-5 | RING 44 X HK0500 |
| 29 | 210036-3 | BEARING 604ZZ X BCS550R |
| 30 | 324729-7 | POST BCS550R |
| 31 | 227752-0 | GEAR 27 X BCS550R |
| 32 | 210080-0 | BEARING 6900ZZ X BCS550R |
| 33 | 226635-1 | GEAR 15 X BCS550R |
| 34 | 631550-0 | CIRCUIT FOR LIGHT BCS550R |
| 35 | 262566-0 | RUBBER BUSH 6 BCS550R |
| 36 | 262563-6 | COMPASS 4 BCS550R |
| 37 | 265999-8 | SCREW 4X25 |
| 38 | 419662-7 | BOX BLADE BCS550R |
| 39 | 419663-5 | COVER BLADE BCS550R |
| 40 | 266020-6 | SCREW M4 X 12 |
| 41 | 210026-6 | BALL BEARING 696ZZ |
| 42 | 961006-2 | RETAINING RING S10 |
| 43 | 226640-8 | GEAR 23 X BCS550R |
| 44 | 257760-7 | COMPASS 10 BCS550R |
| 45 | 285847-5 | RETAINING CUSC.14-23 X BCS5 |
| 46 | 210069-8 | BEARING 6900DDW X BCS550R |
| 47 | 213435-8 | RING 26 X HR3000C |
| 48 | 318087-1 | BOX BEARING BCS550R |
| 49 | 324730-2 | TREE LAMA BCS550R |
| 50 | 265034-2 | SCREW M5 X 16 |
| 51 | 345470-9 | RING THICKNESS X BCS550R |
| 52 | 345739-1 | DISTANZIALE BCS550R |
| 53 | 231792-2 | SPRING TENSION 3 X BCS550R |
| 54 | 158116-6 | COVER SAFETY BCS550R |
| 55 | 345739-1 | DISTANZIALE BCS550R |
| 56 | 257938-2 | RETAINING RING WR-26 |
| 57 | 224391-7 | FLANGE INTERIOR 30 |
| 58 | 224404-4 | EXTERNAL FLANGE BCS550R |
| 59 | 266458-5 | SCREW M 6 X 18 X 4131 |
| 60 | 961014-3 | RETAINING RING E-8 |
| 61 | 272229-0 | LEVER 40 X 3901 |
| 62 | 252159-1 | HEX NUT XM6 X 5621RDW |
| 63 | 941151-9 | WASHER 6 X HM1303 |
| 64 | 331733-9 | TUBE 6 BCS550R |
| 65 | NUT X JR 3020 | |
| 66 | 163471-3 | BASE BCS550R |
| 67 | 265056-2 | BOLT M5 X LS1013 |
| 68 | 266405-6 | SCREW M6x75 BCS550R |
| 69 | 267802-9 | BELLEVILLE WASHER 13 X BCS5 50R |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable.
Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.
We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase.
All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
