AEG Spare Parts for Air Compressor OL50/15
€4.03
Tax included
AEG Spare Parts for Air Compressor OL50/15
We have the original Spares AEG for Air Compressor OL50/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Air Compressor OL50/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AEG Spare Parts for Air Compressor OL50/15
We have the original Spares AEG for Air Compressor OL50/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Air Compressor OL50/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

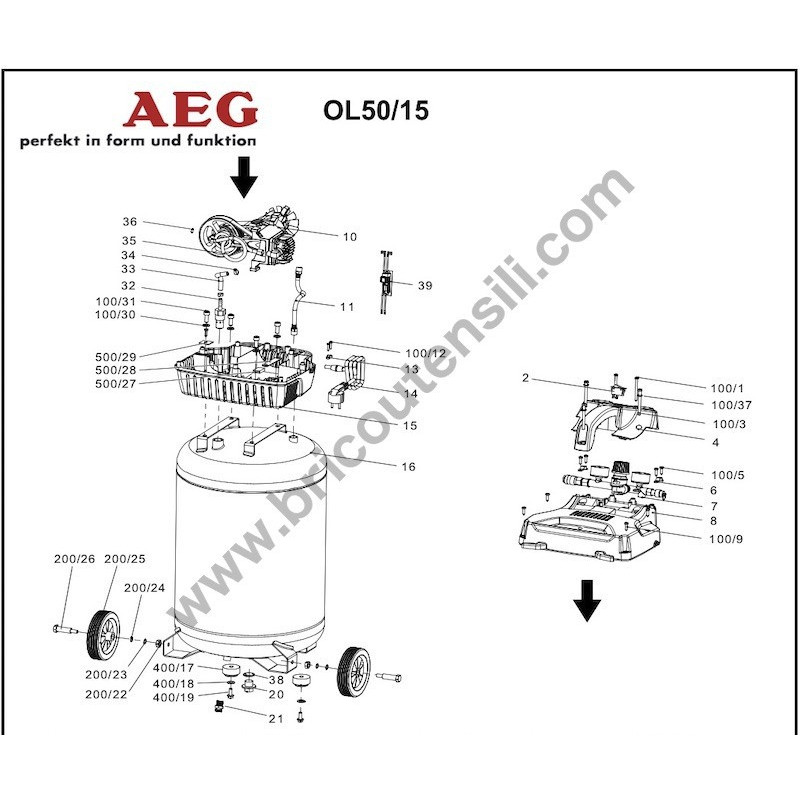

In the following table, look for the model of the Air Compressor and the respective parts of the code.
| Air Compressor AEG OL50/15 | ||
| # | Part Num. | Description |
| 2 | 9996660002 | On/Off switch |
| 4 | 9996610004 | Pression regulator paneL |
| 6 | 9996610006 | Pression regulator plate |
| 7 | 9996610007 | Pressure regulator valve assy |
| 8 | 9996660009 | Upper cover |
| 10 | 9996620010 | AEG50L 8145 pump |
| 11 | 9996610011 | Double-end connect |
| 13 | 9996660015 | Tension disc |
| 14 | 9996610014 | Power line of AEG24C |
| 15 | 9996610020 | Lower cover |
| 16 | 9996620016 | Tank 50 lt |
| 20 | 9996590008 | Tank Plug |
| 21 | 9996590015 | Drain Valve |
| 32 | 9996610026 | Check valve assy |
| 33 | 9996610027 | Inlet hose |
| 34 | 9994490002 | Clamp(φ14) |
| 35 | 9996610029 | Exhaust aluminum tube |
| 36 | 9996660030 | O-ring |
| 38 | 9996590009 | Seal Ring |
| 39 | 9996620039 | PCB plate |
| 100 | 9996610100 | Screws kit |
| 100/1 | x | Screw ST4.8*90-F |
| 100/3 | x | Hex bolt |
| 100/5 | x | Screw ST4.2×14-F |
| 100/9 | x | Screw |
| 100/12 | x | Screw ST4.2×14-F |
| 100/30 | 9996590012 | Flat washer |
| 100/31 | x | Hex bolt M8×20 |
| 100/37 | x | Spring washer(φ6) |
| 200 | 9996620200 | Wheels kit |
| 200/22 | 9996590011 | Nut M8 |
| 200/23 | 9996591024 | Sring Washer |
| 200/24 | 9996590012 | Flat washer |
| 200/25 | 9996590013 | Wheel |
| 200/26 | 9996590014 | Axle for wheel |
| 400 | 9996620400 | Feet kit |
| 400/17 | x | Rubber feet |
| 400/18 | x | Big flat washer |
| 400/19 | x | Screw M6*25 |
| 500 | 9996660500 | Head block kit |
| 500/27 | x | Spacer bush of head |
| 500/28 | x | head press plate 2 |
| 500/29 | head press plate 1 | |
