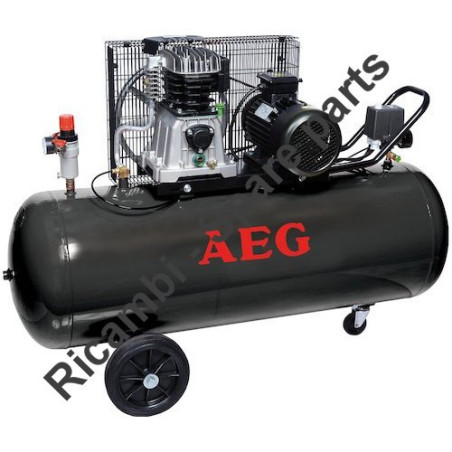

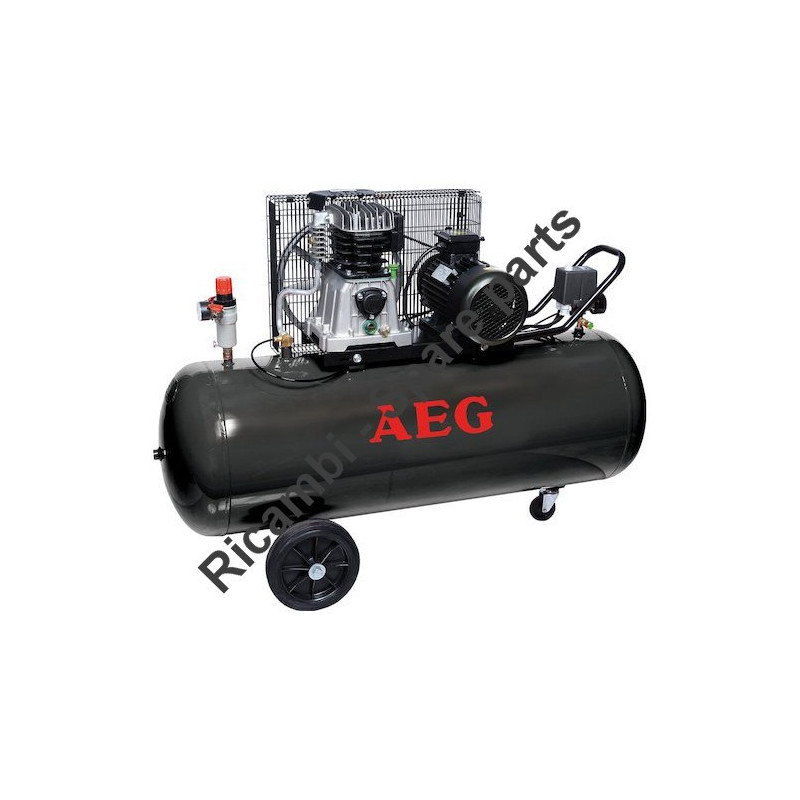

AEG Spare Parts for Compressor B 300/51
€385.34
Tax included
AEG Spare Parts for Compressor B 300/51
We have the original Spares AEG for Air Compressor B 300/51 AEG - 1121490843-201710 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Air Compressor B 300/51 AEG. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AEG Spare Parts for Compressor B 300/51
Fix Your Air Compressor B 300/51 AEG - 1121490843-201710. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Air Compressor and the respective parts of the code.
| B 300/51 AEG - 1121490843-201710 Valid from: 01/10/2017 pag.1 | ||
| # | Part Num. | Description |
| 1 | 1123020004 | PUMP UNIT AB 515 |
| 2 | 5010940008 | BASE PLATE |
| 3 | 5140090008 | HANDLE |
| 4 | 5152860008 | TANK |
| 5 | X | SCREW |
| 6 | X | SCREW |
| 7 | X | SCREW |
| 8 | X | SCREW |
| 9 | X | SCREW |
| 10 | X | SCREW |
| 11 | X | SCREW |
| 12 | X | NUT |
| 13 | X | NUT |
| 14 | X | NUT |
| 15 | X | WASHER |
| 16 | X | WASHER |
| 17 | X | WASHER |
| 18 | X | WASHER |
| 19 | X | WASHER |
| 20 | X | WASHER |
| 21 | 7080140000 | FITTING |
| 22 | 7081040000 | FITTING |
| 23 | 7085460000 | FITTING |
| 24 | 7085240000 | FITTING |
| 25 | 7085460000 | FITTING |
| 26 | 7090030000 | PLUG |
| 27 | 1127100056 | PRESSURE REDUCER 950/2 1/2"-2 RUB.UNIVERSALI |
| 28 | 7110060000 | PRESSURE GAUGE |
| 29 | 7130150000 | BALL COCK |
| 30 | 7130160000 | DISCHARGE TAP |
| 31 | 7190010000 | CHECK VALVE |
| 32 | 7192090000 | RELIEF VALVE |
| 33 | 7230010000 | RILSAN TUBE |
| 34 | 7238600000 | INFEED HOSE |
| 35 | 4170130000 | BELT GUARD KIT |
| 36 | X | WHEEL |
| 37 | X | WHEEL |
| 38 | X | SPACER |
| 39 | 7371310000 | BELT |
| 40 | 4151330000 | KIT |
| 41 | 7458150000 | BRACKET |
| 42 | 7459670000 | BRACKET |
| 50 | 4051670000 | PRESS. SWITCH KIT |
| 51 | 7082690000 | FITTING |
| 52 | 7090070000 | PLUG |
| 53 | 1127250049 | 840/2 - PRESSURE SWITCH TRIFASE 400V C/PROTEZIONE ex 7250490000 |
| 54 | 7328690000 | CABLE |
| 55 | 7328700000 | POWER CABLE |
| 100 | 4080500000 | SCREWS KIT |
| 101 | 4083040000 | KIT |
| 102 | 4083060000 | KIT |
| B 300/51 AEG - 1121490843-201710 Valid from: 01/10/2017 pag.2 | ||
| 1 | 9105450240 | CONNECTING ROD AB415 |
| 2 | X | SCREW |
| 3 | X | SCREW |
| 4 | X | SCREW |
| 5 | X | SCREW |
| 6 | X | SCREW |
| 7 | X | SCREW |
| 8 | X | SCREW |
| 9 | X | SCREW |
| 10 | X | SCREW |
| 11 | 4080070000 | PISTON RING KIT |
| 12 | X | WASHER |
| 13 | X | WASHER |
| 14 | 7041410000 | INTERNAL SNAPRING |
| 15 | 7050110000 | GUDGEON PIN |
| 16 | 7051510000 | TAB |
| 17 | 7060060000 | BEARING |
| 18 | 7060150000 | BEARING |
| 19 | X | O RING |
| 20 | X | O RING |
| 21 | X | O RING |
| 22 | X | OIL SEAL |
| 23 | X | GASKET |
| 24 | X | GASKET |
| 25 | X | GASKET |
| 26 | 7090090000 | PLUG |
| 27 | 9700000408 | OIL SIGHT GLASS |
| 29 | 7201010000 | FLYWHEEL |
| 30 | 7210680000 | FILTER ELEMENT |
| 31 | 7220090000 | PISTON 65MM |
| 31A | 9700002940 | PISTON KIT 65MM |
| 32 | 9100270270 | COOLER |
| 33 | X | O RING |
| 34 | 9105450010 | CRANKCASE |
| 35 | 9105450250 | CRANKSHAFT |
| 36 | 9105450060 | CYLINDER |
| 37 | 9105450070 | FRONT COVER |
| 38 | 9105450080 | REAR COVER |
| 39 | 9105450090 | CASING COVER |
| 42 | X | GASKET |
| 44 | 9105450180 | HEAD |
| 45 | 7153140000 | CONVEYOR |
| 46 | 9700001377 | OIL FILLER NECK KOMPLETT |
| 100 | 4231260000 | VALVE PLATE KIT |
| 101 | 4291070000 | CON ROD-PISTON KIT |
| 102 | 4250130000 | INTAKE FILTER KIT |
| 103 | 4081990000 | GASKETS KIT |
| 104 | 4080480000 | SCREWS KIT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
