AEG Spare Parts for Air Compressor OL24/15
We have the original Spares AEG for Air Compressor OL24/15 the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Air Compressor OL24/15. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

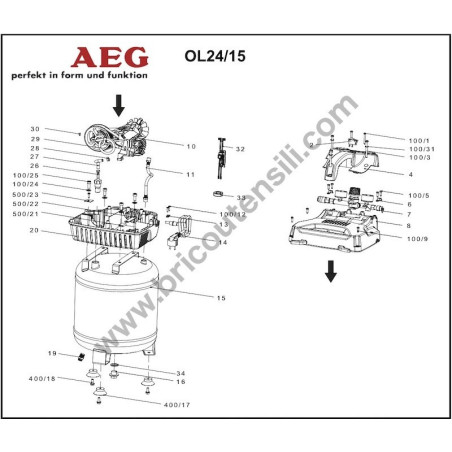

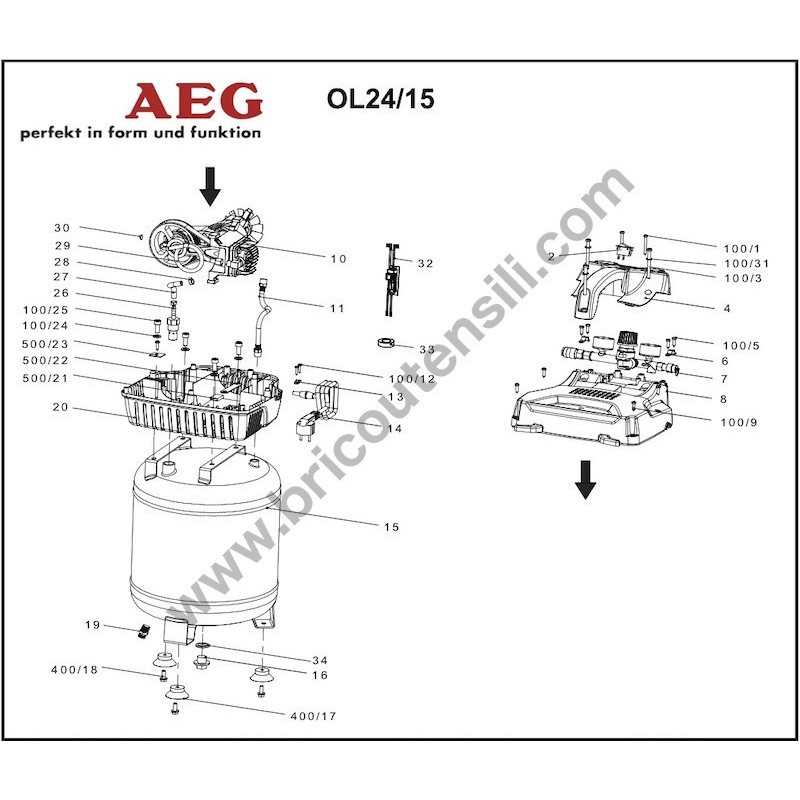

In the following table, look for the model of the Air Compressor and the respective parts of the code.
|
Air Compressor AEG OL24/15
|
||
| 2 | 9996660002 | ON/OFF Switch |
| 4 | 9996610004 | Pression regulator Panel |
| 6 | 9996610006 | Pression regulator plate |
| 7 | 9996610007 | Pressure regulator valve assy |
| 8 | 9996660009 | Upper cover |
| 10 | 9996660010 | Motor & pump assy. |
| 11 | 9996610011 | Double-end connect |
| 13 | 9996660015 | Tension disc |
| 14 | 9996610014 | Power line of AEG24 |
| 15 | 9996610015 | Tank 24 |
| 16 | 9996590008 | Tank Plug |
| 19 | 9996590015 | Drain Valve |
| 20 | 9996610020 | Lower cover |
| 26 | 9996610026 | Check valve assy. |
| 27 | 9996610027 | Inlet hose |
| 28 | 9994490002 | Clamp(φ14) |
| 29 | 9996610029 | Exhaust aluminum tube |
| 30 | 9996660030 | O ring |
| 32 | 9996610032 | PCB plate |
| 33 | 9996660029 | Magnet ring |
| 34 | 9996590009 | Seal Ring |
| 100 | 9996610100 | Screws kit |
| 100/1 | x | Screw ST4.8*90-F |
| 100/3 | x | Hex bolt |
| 100/5 | x | Screw ST4.2×14-F |
| 100/9 | x | Screw |
| 100/12 | x | Screw ST4.2×14-F |
| 100/24 | 9996590012 | Flat washer |
| 100/25 | x | Hex bolt M8×20 |
| 100/31 | x | Spring washer(φ6) |
| 400 | 9996610400 | Feet kit 24lt kit |
| 400/17 | x | Rubber foot |
| 400/18 | x | Screw |
| 500 | 9996660500 | Head Block Kit |
| 500/21 | x | Spacer bush of head |
| 500/22 | x | head press plate |
| 500/23 | x | head press plate |
