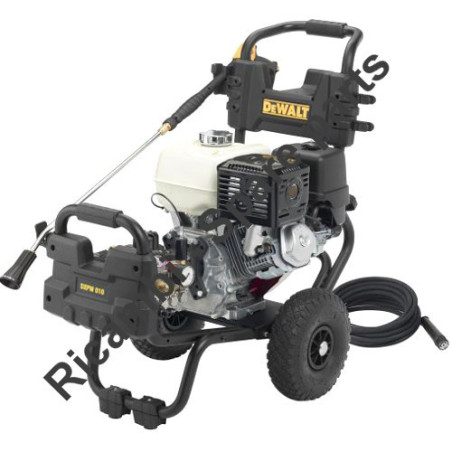

Ricambi originali DeWalt per la sostituzione o riparazione della Idropulitrice DXPW011E - 26303.
Nella tabella seguente, cercate il modello della Idropulitrice ed il rispettivo codice del ricambio.![]()
| Cofano DXPW011E - 26303 Pag.1 |
||
| Pos. | Codice | Descrizione |
| 1 | 2060200 | Vite |
| 2 | 2100300 | Vite |
| 3 | 2360760 | Manopola |
| 4 | 3960500 | Supporto |
| 5 | 3960330 | Protezione |
| 6 | 200230 | Vite |
| 7 | 320620 | Rondella |
| 8 | 2240110 | Dado |
| 9 | 2180150 | Tubo detergente |
| 10 | 1270960 | Tubo detergente |
| 11 | 1341030 | Filtro |
| 12 | 1269114 | Premontaggio tubo |
| 13 | 3120110 | Dado |
| 14 | 1340260 | Filtro |
| 15 | 3960300 | Protezione |
| 16 | 3960280 | Manico |
| 17 | 3960150 | Protezione |
| 18 | 3960160 | Protezione |
| 19 | 3960490 | Porta-accessori |
| 20 | 3960290 | Protezione |
| 21 | 3969004 | Manopola |
| 22 | 3960830 | Protezione |
| 23 | 4554 | Motore |
| 24 | 50016 | Tappo |
| 25 | 3960530 | Ruota |
| 26 | 3960510 | Telaio |
| 27 | 1060120 | Dado |
| 28 | 3960350 | Protezione |
| 29 | 3960340 | Protezione |
| 30 | 3960360 | Antivibrante |
| 31 | 380250 | Vite |
| 32 | 3960540 | Distanziale |
| 33 | 380210 | Vite |
| 34 | 3960520 | Telaio |
| 35 | 961900 | Vite |
| Pompa DXPW011E - 26303 Pag.2 |
||
| 1 | 960160 | Guarnizione OR |
| 2 | 960850 | Tappo |
| 3 | 889052 | Valvola completa |
| 4 | 1382740 | Tenuta acqua |
| 5 | 1380690 | Tappo |
| 6 | 820510 | Guarnizione OR |
| 11 | 960110 | Anello |
| 12 | 1382740 | Tenuta acqua |
| 13 | 1380090 | Guida pistone |
| 14 | 961240 | Guarnizione OR |
| 15 | 880330 | Tenuta acqua |
| 16 | 1383130 | Anello |
| 17 | 850370 | Vite |
| 18 | 1380050 | Supporto |
| 19 | 640030 | Guarnizione OR |
| 20 | 2280340 | Cuscinetto |
| 21 | 1382770 | Corpo pompa |
| 22 | 880130 | Tappo |
| 23 | 962010 | Dado |
| 24 | 962000 | Rondella |
| 25 | 1380940 | Pistone |
| 26 | 1380950 | Disco |
| 27 | 600180 | Guarnizione OR |
| 28 | 1380920 | Pistone |
| 29 | 1380060 | Spina |
| 30 | 1383020 | Biella |
| 31 | 1080401 | Anello |
| 32 | 1381850 | Rondella |
| 34 | 1780510 | Guarnizione OR |
| 35 | 1789010 | Coperchio |
| 36 | 1343510 | Vite |
| 37 | 2280130 | Albero |
| 38 | 820440 | Vite |
| 39 | 621170 | Anello |
| 40 | 1380120 | Spessore 0,10 mm |
| 40 | 1380130 | Spessore 0,19 mm |
| 40 | 1380530 | Spessore 0,25 mm |
| 40 | 1382810 | Spessore 0,05 mm |
| 41 | 2281510 | Flangia |
| 42 | 740290 | Guarnizione OR |
| 43 | 1980740 | Tappo |
| 46 | 1981180 | Tappo |
| 47 | 180101 | Guarnizione OR |
| 49 | 2281590 | Testa |
| 50 | 820150 | Vite |
| 71 | 180030 | Vite |
| 77 | 1383150 | Cuscinetto |
| 78 | 2289235 | Premontaggio testa |
| 86 | 1260250 | Indicatore livello |
| 87 | 1260430 | Anello |
| 88 | 1780690 | Disco |
| 89 | 1140450 | Guarnizione OR |
| 91 | 1381580 | Manometro |
| 92 | 1380220 | Guarnizione OR |
| 94 | 50129 | Valvola |
| 95 | 20699 | Premontaggio pompa |
| A | 1828 | Kit valvole |
| B | 2757 | Kit pistoni |
| C | 1856 | Kit tenute olio |
| E | 1857 | Kit tenute acqua |
| G | 1829 | Kit anelli appoggio |
| Pompa DXPW011E - 26303 Pag.3 |
||
| 1 | 25184 | Valvola completa |
| 2 | 2840970 | Vite |
| 3 | 1060120 | Dado |
| 4 | 3740100 | Tappo |
| 5 | 2500540 | Inserto |
| 6 | 2500550 | Copiglia |
| 7 | 1980220 | Piattello |
| 8 | 2760410 | Molla |
| 9 | 2760400 | Pistone |
| 10 | 2260100 | Guarnizione OR |
| 11 | 660190 | Guarnizione OR |
| 12 | 2760210 | Anello |
| 13 | 2760570 | Guida |
| 14 | 1200690 | Guarnizione OR |
| 15 | 394280 | Guarnizione OR |
| 16 | 2260070 | Otturatore |
| 17 | 2760980 | Sede |
| 18 | 770140 | Guarnizione OR |
| 19 | 2760640 | Anello |
| 20 | 390080 | Guarnizione OR |
| 21 | 1540272 | Vite |
| 22 | 1982520 | Portagomma |
| 23 | 480480 | Guarnizione OR |
| 24 | 1250280 | Sfera |
| 25 | 1560520 | Molla |
| 26 | 2260190 | Guarnizione OR |
| 27 | 3740010 | Corpo valvola |
| 28 | 600180 | Guarnizione OR |
| 29 | 1540630 | Guarnizione OR |
| 30 | 3740020 | Corpo |
| 31 | 880270 | Guarnizione OR |
| 32 | 2260420 | Vite |
| 33 | 2101770 | Guarnizione OR |
| 34 | 2760131 | Otturatore |
| 35 | 2760200 | Molla |
| 36 | 2760120 | Inserto |
| 37 | 1470210 | Guarnizione OR |
| 38 | 2760270 | Guarnizione OR |
| 39 | 2760230 | Raccordo |
| 40 | 480440 | Guarnizione OR |
| 41 | 3600760 | Raccordo |
| 42 | 1122260 | Raccordo |
| F | 42780 | Kit guarnizioni |
| Accessori DXPW011E - 26303 Pag.4 |
||
| 1 | 41843 | Pistola |
| 2 | 40826 | Lancia |
| 3 | 2000570 | Guarnizione OR |
| 4 | 3961050 | Tubo alta pressione |
| 5 | 391000 | Guarnizione OR |
| 6 | 3082 | Ugello |
