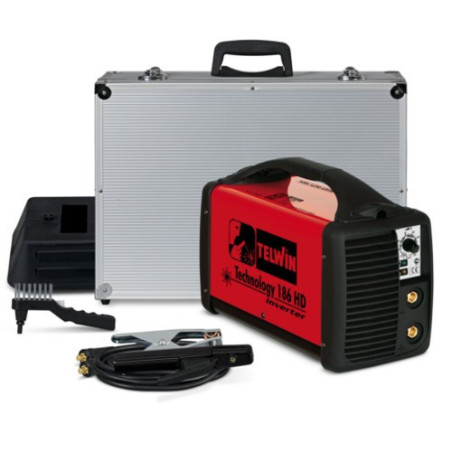

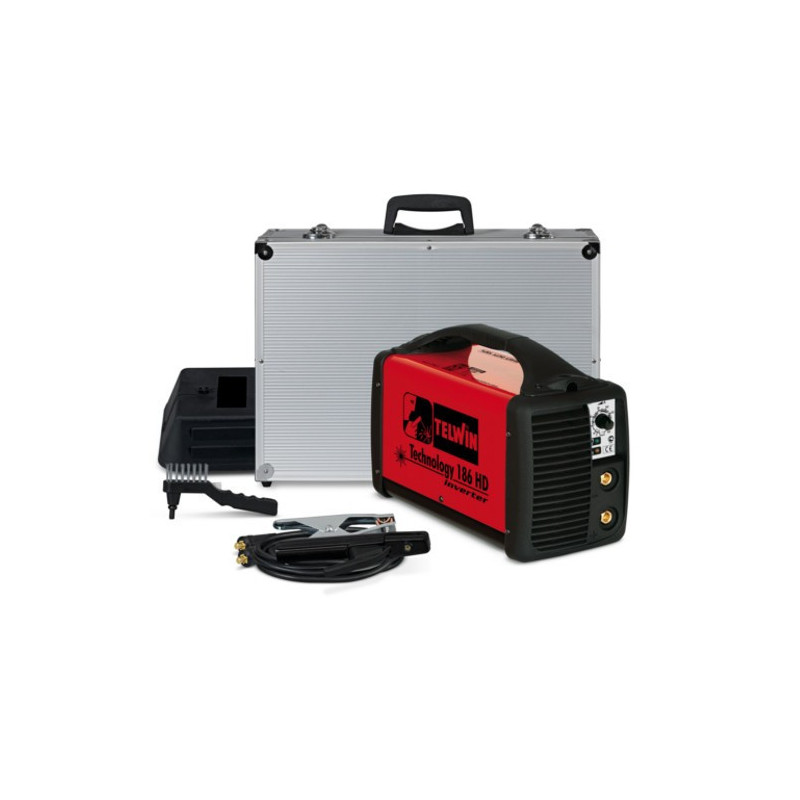

Inverter welder 160A Telwin Technology 186HD
TECHNOLOGY 186HD 230V ACX+ALU C.CASE code 816205MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Inverter welder 160A Telwin Technology 186HD
TECHNOLOGY 186HD 230V ACX+ALU C.CASE code 816205
MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections. Complete with MMA welding accessories and aluminium carry case.
Technical Data:
• 230 V
Power consumption 3.5 to 5.0 Kw 60%
• load voltage 83 V
• adjustment range of 5 to 160 A
• maximum current 160 A
• Electrode ø 1.6 to 4
• Weight 8.5 kg
| Normative: | LVD: EN 60974-1 | LVD: EN 50445 | EMC: EN 60974-10 | ||||
| COD. | VpH | A Min-Max | A Max 40° | A 60%40° | Vo | A 60% Max | P60%Max |
| V 50/60Hz | A | A EN60974-1 | A EN60974-1 | V | A | kW | |
| 816205 | 230 | 5 | 160 | 125 DC | 83 DC | 23 | 3,5 |
| 1 ph | 160 DC | 35 % DC | 32 | 5 | |||
| Pgen | n | @ | Diam. | IP23 | WHL | kg | BAR CODE |
| kW | n% | cosphi | mm | cm(L,W,H) | kg | ||
| 7 | 90 | 0,7 | 1,6 | IP23 | 36 | 8,5 | 800489782869 5 |
| 4 | 40 | ||||||
| 18,5 |
Shipping time about 7/10 Business days
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s TELWIN websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to TELWIN brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
