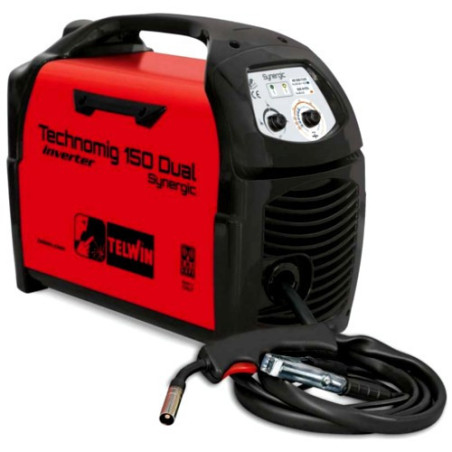

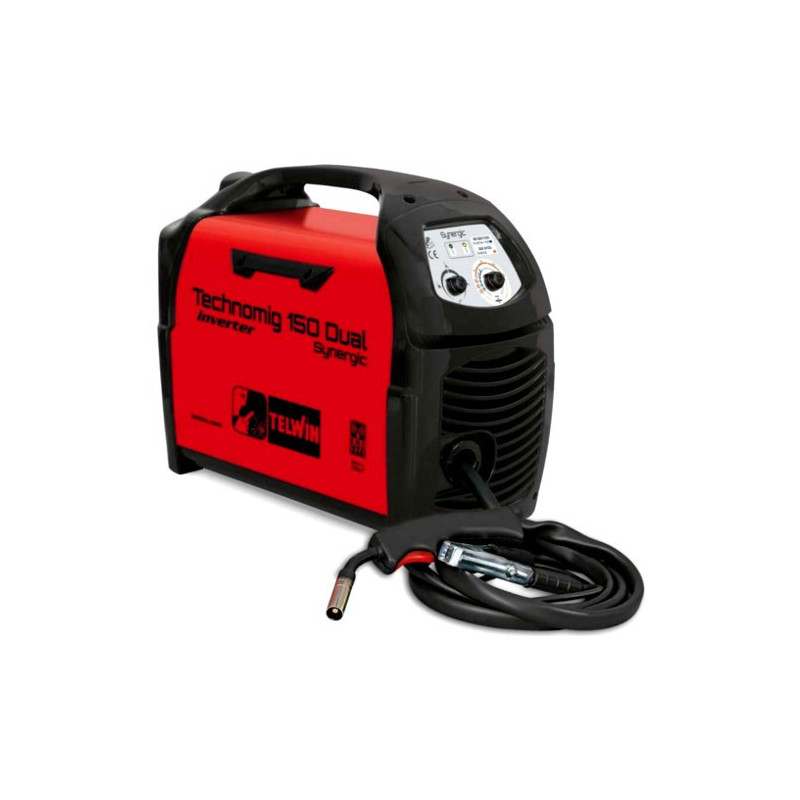

Inverter Welding Telwin Technomig 150 Dual Synergic 230V

Inverter Welding Telwin Technomig 150 Dual Synergic 230V

Description:
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine.
Technomig is confirmed as the perfect solution for a wide range of applications, from maintenance to installation, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium).
The fast SYNERGIC adjustment of the welding parameters thanks to the "ONE TOUCH" technology, makes the product very easy to use.
Just set the material thickness and start welding: the intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.
Characteristics:
- Polarity change for GAS MIG-MAG/BRAZING welding
- Synergic adjustment with setting only of the material thickness
- Fine adjustment of the arc length
- 10 synergy curves available
- Compact and light
- Thermostatic, overvoltage, undervoltage, overcurrent,motorgenerator (+/- 15%) protections
Fit for NO GAS/Flux welding, it can be transformed into MIG-MAG with the optional kit.
Complete with MIG-MAG torch, work clamp and cable.

Technical data:
- SINGLEPHASE MAINS VOLTAGE 230 - 1 ph  V 50/60Hz
- CURRENT RANGE IN DC 20 - 150 DC  A
- MAX CURRENT IN DC 115 - 20% DC  A
- DC CURRENT AT 60% 65 DC  A EN60974-1
- MAX NO LOAD VOLTAGE IN DC 50  V
- ABSORBED CURRENT AT 60% - MAX 8,7 - 20  A
- ABSORBED POWER AT 60% - MAX 1,2 - 2,8  kW
- EFFICIENCY 86  n%
- POWER FACTOR 60% 0,7  cosphi
- STEEL WELDING WIRE DIAMETER 0,6 - 0,8  mm
- INOX WELDING WIRE DIAMETER 0,8  mm
- ALUMINIUM WELDING WIRE DIAM. 0,8 - 1  mm
- FLUX CORED WELDING WIRE DIAM. 0,8 - 1,2  mm
- BRAZING WIRE DIAM. 0,8  mm
- PROTECTION DEGREE IP23
- DIMENSIONS 46 X 24 X 36  cm
- WEIGHT 10,1  kg
- EAN CODE 800489788326 7
- PIECES/PALLET 18  pcs/pallet
- PIECES/PALLET - B 12  pcs/pallet - B

- Code: 816050
