Basic Electrodes SiderArco E48 2,5x300

Basic Electrodes SiderArco E48 2,5x300

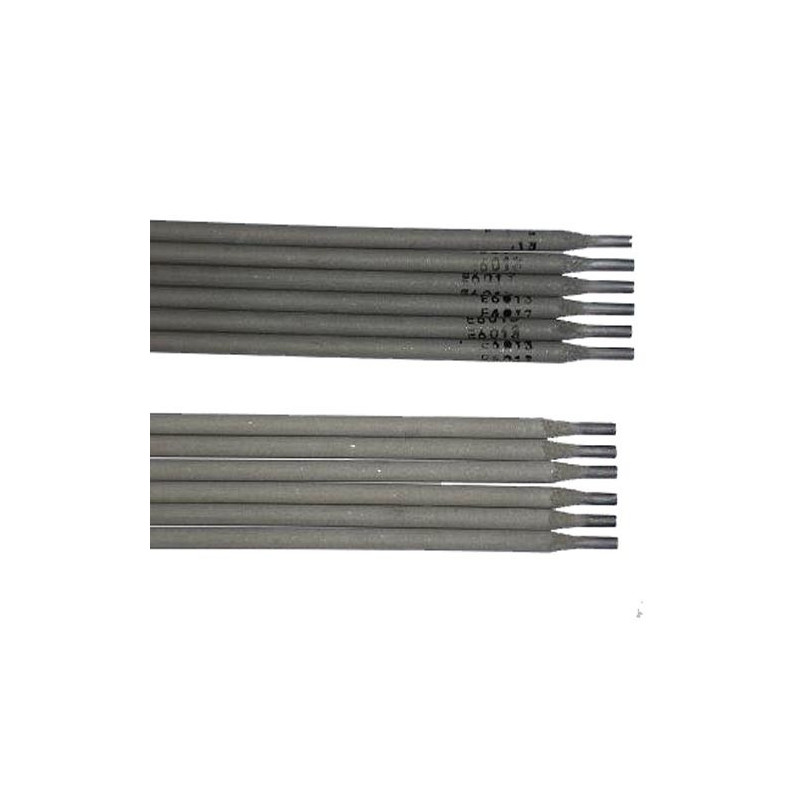

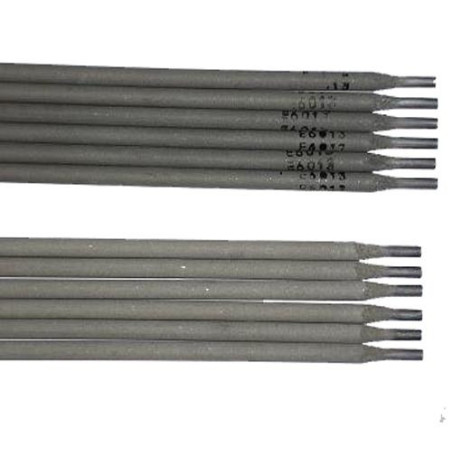

Iron Welding Electrodes 2.5 mm diameter, pack of 185 pieces.
Basic electrode with iron powder.
Electrode for applications that require significant mechanical properties. Basic covered with iron powder and high efficiency for low-temperature applications. Casting sweet with an excellent bead appearance. Excellent arc ignition. TUV APPROVED.

Main applications:
- Tanks
- Shipbuilding
- Lifting equipment
- Facilities in general

Technical Data:
- TYPES OF Weldable
o AFNOR: A 33 - A 34 - E 24 - E 28 - E 30 - E 36 - A 50 - A 37 (CP.AP.FP) - A 42 (CP.AP.FP) - A 48 (CP.AP) - A 52 (CP.AP) - E 355R - A 510 (CP.AP) - A 530 (CP.AP) - A 550 (CP.AP)
o DIN: ST 33 - 37 - 44 - 52 - ST 50.2 - ST E 36 - HI - HII - HIV - 17 Mn 4 - AST 35 - 41 - 45 - 52 - TT ST 41
o ASTM: A 283 - A 284 - A 440 - A 441 - A 570 - A 572 Gr 50 - A 573 - A 588 - A 709 Gr 50 - A 285 - A 299 - A 414 - A 442 - A 515 - A 516. Uni: Fe 33 - 34 B - 37 - 44 - 52 - Fe 50 - Fe E - 355 - Fe 360 - 410 - 460 - 510
- PROPERTY METAL METAL LODGED
or break: 510 - 640 MPa
Yield or> 430 MPa
Elongation A% 5d or> 24
Toughness or> 80 KV (J)-20oC;> 47 KV (J)-40oC
- PACKAGING INFORMATION
Diameter: 2.5 mm
o Length: 300 mm
o Weight: 18.9 g / electrode
or Quantity: 200pz
- Weight : 4.5 Kg
