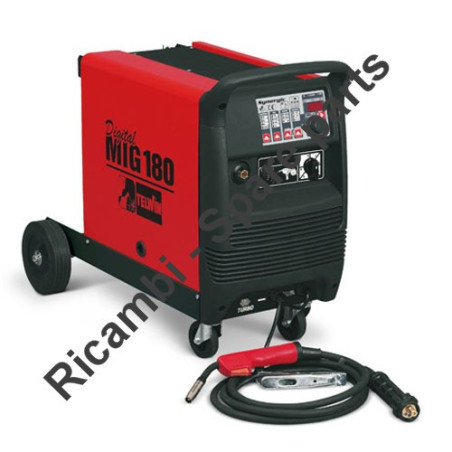

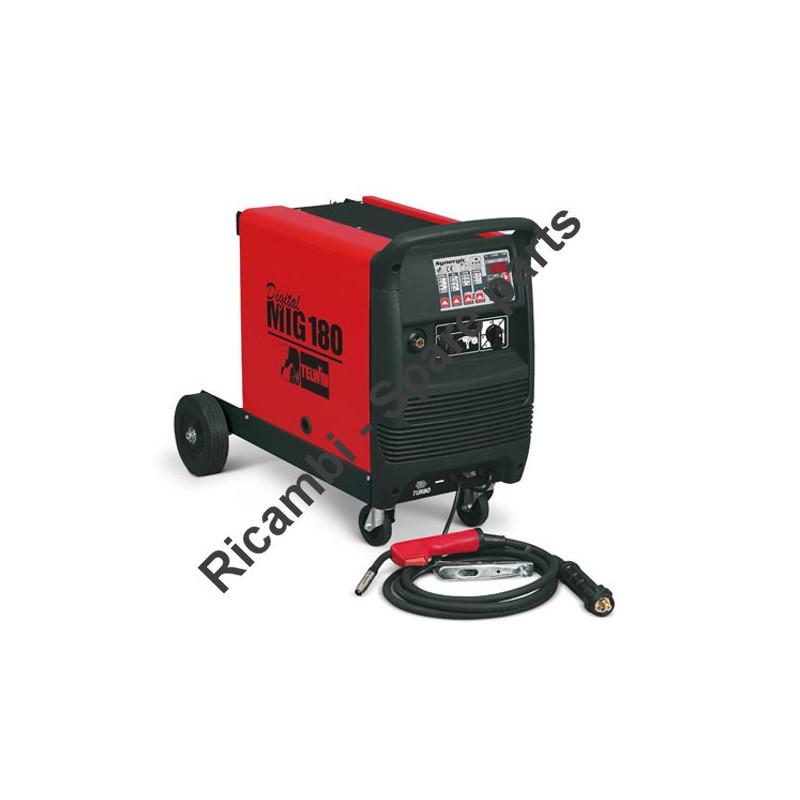

Telwin Parts for Flux Welding Digital Mig 180 230V
€4.03
Tax included
Telwin Parts for Flux Welding Digital Mig 180 230V
Telwin original spare parts for to replace broken parts for to fix welding machine Flux and Mig-mag Digital Mig 180 230V - 820020.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Parts for Flux Welding Digital Mig 180 230V
Telwin original spare parts for to replace broken parts for to fix welding machine Flux and Mig-mag Digital Mig 180 230V - 820020.
In the following table, look for the model of the welding machine and theirs spare parts codes.
| DIGITAL MIG 180 230V code 820020 Pag.1 | ||
| # | Description | Part Num. |
| 1 | RECTIFIER PROTECTION | 112183 |
| 2 | CAPACITOR | 112205 |
| 3 | RECTIFIER KIT | 980476 |
| 4 | RESISTOR | 113684 |
| 5 | FUSE CABLE | 120097 |
| 6 | CABLE 16 MMQ 1,8 M | 120302 |
| 7 | SWITCH | 121502 |
| 8 | SWITCH KNOB SET | 323101 |
| 9 | FUSE | 122190 |
| 10 | ELECTRO-VALVE | 122682 |
| 11 | THERMOSTAT | 121093 |
| 12 | BLACK KNOB SET | 980772 |
| 13 | MAINS CABLE 3G2.5 2 M | 132267 |
| 15 | FAN | 152054 |
| 16 | FAN MOTOR | 152110 |
| 17 | SHUNT | 152219 |
| 18 | WIRE FEED MOTOR | 153007 |
| 19 | REACTANCE | 169662 |
| 20 | AUXILIARY TRANSFORMER | 169122 |
| 21 | TRANSFORMER KIT | 990815 |
| 22 | PRESSURE ROLL | 232105 |
| 23 | REEL HANDWHEEL | 312137 |
| 24 | HANDLE | 312328 |
| 25 | FRONT PANEL + MODULE KIT | 980662 |
| 26 | REEL | 322081 |
| 27 | CABLE BUSHING KIT | 990439 |
| 28 | ROLL SUPPORT | 322126 |
| 29 | TORCH FIXING CASING | 322127 |
| 30 | PRESSURE ROLL BRACKET | 322128 |
| 31 | SPACER | 322180 |
| 32 | FIXED WHEEL | 322201 |
| 33 | WHEEL | 322245 |
| 34 | FRONT PANEL | 322528 |
| 35 | WIRE FEED HANDWHEEL | 422257 |
| 36 | SUPPORT | 422817 |
| 37 | SWIVEL SUPPORT | 422820 |
| 38 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 39 | SPRING | 452022 |
| 40 | REEL SPRING | 452057 |
| 41 | BRACKET FOR BOTTLE | 644606 |
| 42 | DIAPHRAGM | 644827 |
| 43 | BACK PANEL | 644828 |
| 44 | FRONT PANEL | 642139 |
| 45 | CARD COVER | 644832 |
| 46 | BOTTOM | 644961 |
| 47 | COVER KIT | 980838 |
| 48 | DOOR KIT | 980882 |
| 49 | WHEELS AXLE | 681092 |
| 50 | TOLEDO 250 WORK CLAMP 250A | 712030 |
| 51 | FEED ROLL D. 0,6-0,8 MM FE | 722019 |
| 52 | GAS REGULATOR REFILLABLE BOTTLE | 722341 |
| 53 | TORCH CONNECTION | 723051 |
| 54 | MT15 MIG TORCH 3 M 220 A | 742180 |
| 55 | GAS HOSE KIT | 990097 |
| 56 | GEARS KIT | 990257 |
| 57 | REEL KIT | 990264 |
| 58 | CABLE CARD/CONNECTOR | 120351 |
| TORCH DIGITAL MIG 180 230V key 820020 Pag.2 |
||
| 1 | RING NUT | 722007 |
| 2 | LINER NUT | 722013 |
| 3 | SWAN NECK DIFFUSER | 722305 |
| 5 | NOZZLE SPRING | 722319 |
| 6 | DIFFUSER INSULATION | 722326 |
| 7 | TORCH HOLDER | 742172 |
| 8 | CONTACT TIP D. 0,8 MM FE | 722416 |
| 8 | CONTACT TIP D. 0,6 MM FE | 722415 |
| 10 | CYLINDRICAL NOZZLE | 722149 |
| 10 | CONICAL NOZZLE | 722423 |
| 11 | WIRE GUIDE HOSE D. 1-1,2 MM 3 M | 722689 |
| 11 | WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M | 722437 |
| 13 | TORCH ASSY | 722441 |
| 14 | TORCH CONNECTION | 742175 |
| 15 | TORCH RING NUT | 742171 |
| 16 | TORCH CONNECTION | 722325 |
| 17 | TORCH CONNECTION INSULATION | 722693 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Digital Mig 180 820020
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN:
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
