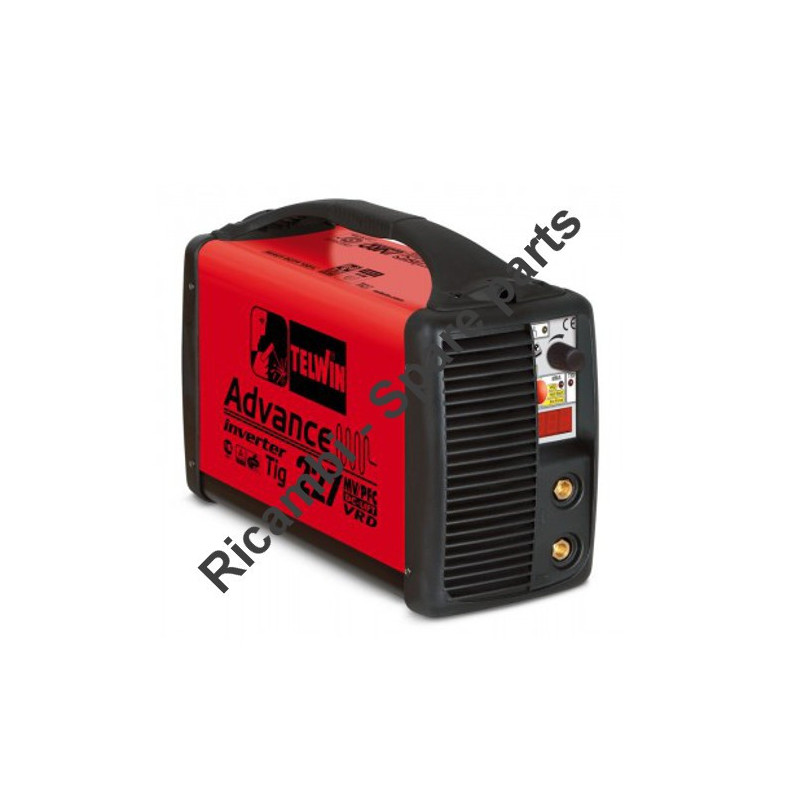

Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC
search
  • Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC
  • Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC
  • Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC

Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC

€3.04
Tax included

Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC

Telwin original spare parts to replace broken parts or to repair Inverter Tig ADVANCE TIG 227MV / PFC DC-LIFT100-240V ACC-852052.

Supply of original spare parts directly from the manufacturer, with after-sales assistance at the best price on the web.

Inverter Tig ADVANCE TIG 227MV / PFC DC-LIFT100-240V ACC-852052.

ITEM CODE: 111137
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Telwin Spare Parts for Welding Inverter Tig Advance 227MV/PFC

Telwin original spare parts to replace broken parts or to repair Inverter Tig ADVANCE TIG 227MV / PFC DC-LIFT100-240V ACC-852052.
In the following table, look for the model of the Welding and the respective parts of the code.
Inverter Tig Advance 227MV/PFC
ADVANCE TIG 227MV/PFC DC-LIFT100-240V ACC-852052 Pag.1
# Description Part Num.
1 SINGLE PHASE BRIDGE 111017
2 MOSFET 111137
3 RESISTANCE 112048
4 DIODE 113286
5 RELAIS 116320
6 RESISTANCE 116503
7 DIODE 116570
8 DIODE 116839
9 CONDENSER 116926
10 ENCODER 116959
11 RESISTANCE 10R 2W 5% FUSE 116962
12 SWITCH 121248
13 ENCODER KNOB KIT 980520
14 MAINS CABLE 3G2.5 2 M 132158
15 CURRENT TRANSFORMER 152230
16 PULSE TRANSFORMER 152247
17 FAN 152269
18 TA 1/200 152281
19 FILTER INDUCTANCE 164741
20 INDUCTANCE 169910
21 POWER TRAFO 169775
22 INDUCTANCE 169776
23 TRANSFORMER 169777
24 FRONT PANEL 321039
25 BACK PANEL 322694
26 HANDLE 322695
27 SOCKET DX 25 712000
28 COVER KIT 981227
29 COMPLETE PCB KIT 981228
30 PCB KIT 981229
31 CONTROL PCB KIT 981230
32 CONTROL PCB KIT 981231
33 IGBT + DIODE KIT 981232
34 IGBT + DIODE KIT 981233
35 BOTTOM KIT 990913
TORCH ADVANCE TIG227MV/PFC DC-LIFT100-240V ACC Pag.2
1 KIT 10 CERAMIC NOZZLES NR.6 802231
1 KIT 10 CERAMIC NOZZLES NR.5 802230
1 KIT 10 CERAMIC NOZZLES NR.4 802229
2 INSULATING 722984
3 ORING 722985
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM 802222
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM 802220
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,2 MM 802221
5 KIT 3 ELECTRODE HOLDER CLAMPS Ø 1,2 MM 802224
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM 802225
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM 802223
6 SHORT CAP 722982
7 LONG CAP 722981
8 TORCH CONNECTION COVER 722950
9 TORCH CONNECTION 722949
10 GAS CLUTCH CONNECTOR 722292
15 HANDLE 722948
16 ORING OR 722983
18 TORCH BODY 722947
19 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM 802228
19 KIT 3 ELECTRODE DIFFUSERS Ø 1,2 MMM 802227
19 KIT 3 ELECTRODE DIFFUSERS D.1 MM 802226
20 LONG CERAMIC NOZZLE NR.4 722996
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ADVANCE TIG 227MV/PFC 852052
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
