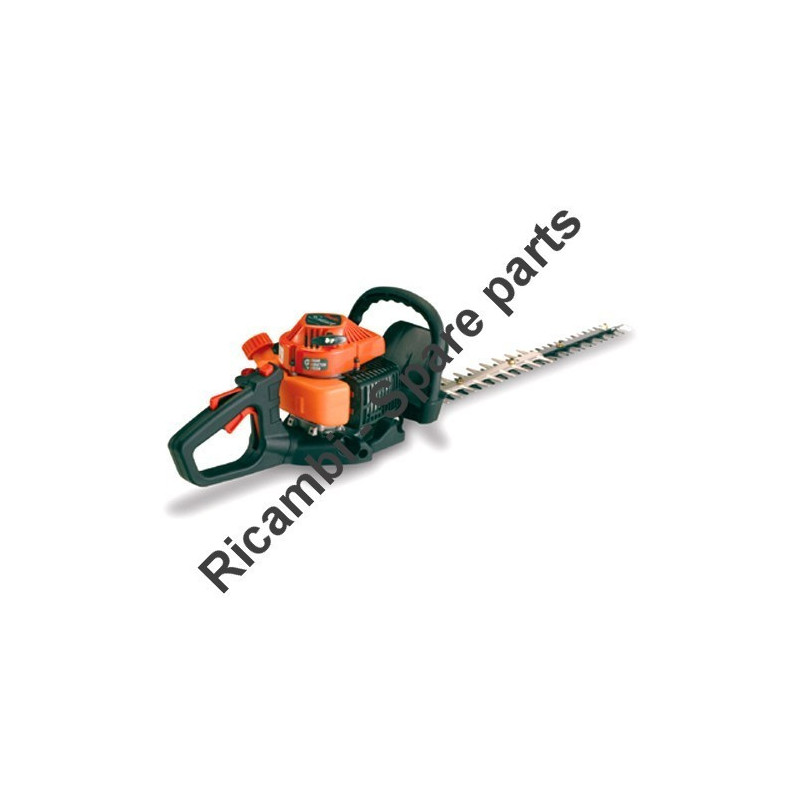

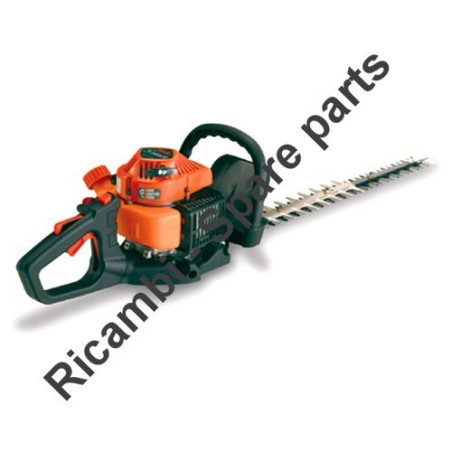

Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
€1.11
Tax included
Tanaka Spare Parts for Engine Hdge Trimmer THT 210 S
Original spare parts Hitachi-HIKOKI - Tanaka recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer THT 210 S.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
Original spare parts Hitachi-HIKOKI - Tanaka recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer THT 210 S.
In the following table, look for the model of the Hedgecutter and the respective parts of the code.
| Engine Hdge Cutter THT 210 S - Cylinder/Piston/Crank Shaft Pag.1 | ||
| # | Part Num. | Description |
| 1 | 6687476 | SPARK PLUG CAP |
| 2 | 6685086 | SPARK PLUG BPMR6A |
| 3 | 6685480 | CYLINDER SET |
| 4 | 6684586 | CYLINDER BOLT HEX.HOLE BOLT 5x18/S |
| 7 | 6685744 | CYLINDER GASKET |
| 8 | 6686118 | PISTON RING |
| 9 | 6685892 | PISTON SET |
| 10 | 6696944 | PISTON PIN |
| 11 | 6686028 | PISTON PIN CIRCLIP |
| 12 | 6686205 | CRANKSHAFT COMP |
| 13 | 6695589 | NEEDLE BEARING F-810 1.4X8.5 |
| 27 | 6687350 | IGNITION COIL COMP. |
| 28 | 6684599 | HEX.HOLE BOLT 4X18WS |
| 29 | 6688461 | CORD |
| 36 | 6684597 | INSULATOR TUBE 50L |
| 37 | 6687866 | CORD 200M |
| 38 | 6687694 | USE 167.21532.80 |
| Crank Case Pag.2 | ||
| 23 | 6684607 | OIL SEAL REPLACES |
| 24 | 6684608 | BEARING |
| 25 | 6689177 | GEAR SHAFT SHIM 0.10 |
| 26 | 6691822 | CUSHION RUBBER |
| 30 | 6684786 | HEX.HOLE BOLT 5X30S |
| 31 | 6687389 | USE 155.21523.800 |
| 32 | 6684611 | WASHER 8 |
| 33 | 6684971 | S WASHER 8 |
| 34 | 6684612 | HEX NUT |
| 35 | 6686771 | STUD BOLT 6X22 |
| Engine-1 Pag.3 | ||
| 26 | 6689966 | CARBURETOR INSULATOR SET, SPARE |
| 27 | 6695515 | HEX HOLE BOLT 5X25WS |
| 30 | 6689839 | CARBURETOR GASKET |
| 33 | 6698966 | O RING |
| 35 | 6690119 | CLEANER BODY COMPLETE |
| 36 | 6690804 | COLLAR 7.5 |
| 37 | 6691272 | CHOKE VALVE |
| 38 | 6684658 | WASHER |
| 39 | 6690843 | BLOW OVER CHECK BOARD |
| 40 | 6684662 | S.WASHER 5 |
| 41 | 6684660 | SCREW |
| 43 | 6690364 | CLEANER SPONGE |
| 44 | 6690415 | CLEANER COVER ASSY |
| 45 | 6689737 | SPECIAL SCREW |
| 46 | 6690482 | CARBURATOR |
| 50 | 6685247 | FUEL PIPE ASS'Y L=130 |
| 51 | 6684619 | CLIP |
| 52 | 6684620 | FILTER |
| 53 | 6691582 | FUEL TANK WHT |
| 55 | 6692244 | COLLAR |
| 58 | 6695505 | HEX.HOLE BOLT 5X18PS |
| 61 | 6691337 | SWIVEL CAP |
| 63 | 6691716 | TANK CAP ASSY |
| 70 | 6685139 | PRIMING PUMP COMP |
| 77 | 6692347 | FUEL PIPE |
| 78 | 6685267 | PIPE |
| 79 | 6697447 | RETURN GROMMET |
| 86 | 6684625 | TANK CAP CHAIN |
| 87 | 6691272 | CHOKE VALVE |
| 88 | 6690482 | CARBURATOR |
| Engine-2 Pag.4 | ||
| 4 | 6692744 | MUFFLER GASKET |
| 5 | 6687252 | HEAT SHIELD |
| 6 | 6692477 | MUFFLER SET |
| 7 | 6684661 | WASHER 5 |
| 8 | 6685114 | HEX HOLE BOLT 5X50 |
| 17 | 6688050 | GROMMET |
| 20 | 6695502 | HEX HOLE BOLT 4X18PS |
| 47 | 6688494 | CLUTCH ASSY |
| 61 | 6684636 | SCREW |
| 62 | 6695441 | BOLT |
| 67 | 6687014 | FAN CASE COMP. - DISCONTINUED |
| 68 | 6693072 | STARTER PULLEY |
| 69 | 6684678 | CAM PLATE |
| 70 | 6684677 | DUMPER SPRING |
| 71 | 6684675 | RECOIL SPRING |
| 72 | 6684679 | SET SCREW |
| 73 | 6693168 | STARTER ROPE |
| 74 | 6693237 | STARTER HANDLE |
| 75 | 6684681 | STARTER PULLEY ASSY |
| 76 | 6687209 | DEFLECTOR |
| 77 | 6693320 | STARTER PAWL |
| 78 | 6684684 | STARTER PAWL SPRING |
| 79 | 6684683 | STOP RING 5 |
| Carburetor Pag.5 | ||
| 5 | 6684697 | SWIVEL |
| 7 | 6684696 | STOP RING |
| 8 | 6684883 | THROTTLE VALVE COMP |
| 10 | 6684695 | O-RING |
| 11 | 6691845 | MAIN JET |
| 13 | 6691457 | PUMP GASKET |
| 14 | 6684693 | PUMP DIAPHRAGM |
| 17 | 6684700 | INLET SCREEN |
| 18 | 6691430 | PUMP BOBY ASSY |
| 19 | 6685220 | GASKET |
| 20 | 6690827 | METERING DIAPHRAGM COMP |
| 21 | 6685222 | DIAPHRAGM COVER |
| 22 | 6691312 | SET SCREW |
| Carburetor (AUS) Pag.6 | ||
| 5 | 6684697 | SWIVEL |
| 7 | 6684696 | STOP RING |
| 8 | 6684883 | THROTTLE VALVE COMP |
| 10 | 6684695 | O-RING |
| 11 | 6691845 | MAIN JET |
| 13 | 6691457 | PUMP GASKET |
| 14 | 6684693 | PUMP DIAPHRAGM |
| 17 | 6684700 | INLET SCREEN |
| 18 | 6691430 | PUMP BOBY ASSY |
| 19 | 6685220 | GASKET |
| 20 | 6690827 | METERING DIAPHRAGM COMP |
| 21 | 6685222 | DIAPHRAGM COVER |
| 22 | 6691312 | SET SCREW |
| Front Handle Pag.7 | ||
| 1 | 6688377 | BODY |
| 2 | 6688094 | USE 210.33160.22 - DISCONTINUED |
| 3 | 6688485 | DAMPER COLLAR B |
| 4 | 6688412 | DAMPER B WAS |
| 5 | 6689680 | WASHER |
| 6 | 6684786 | HEX.HOLE BOLT 5X30S |
| 7 | 6697075 | CLIP |
| 8 | 6686111 | HANDLE SUPPORT COMP. |
| 9 | 6695054 | HEX BOLT |
| 10 | 6684834 | S.WASHER 5 |
| 11 | 6684918 | WASHER 5 |
| Rear Handle Pag.8 | ||
| 1 | 6686314 | HANDLE B (RIGHT SIDE) |
| 2 | 6686279 | HANDLE A (LEFT SIDE) |
| 3 | 6688230 | THROTTLE LEVER |
| 4 | 6688240 | SAFETY LEVER OR |
| 5 | 6688244 | SPRING |
| 6 | 6687770 | STOP BUTTON COMP |
| 7 | 6688246 | LOCK LEVER |
| 8 | 6688279 | SPRING |
| 9 | 6685070 | WASHER 4 |
| 10 | 6685161 | SCREW 4X10 |
| 11 | 6684636 | SCREW |
| 12 | 6693943 | THROTTLE WIRE COMP |
| 13 | 6697453 | BUTTON STOP |
| 14 | 6684913 | SCREW |
| 15 | 6687524 | PROTECTION TUBE 150L |
| 16 | 6694588 | MARK |
| Gear Case/Blade Pag.9 | ||
| 1 | 6688684 | GEAR CASE COMP |
| 2 | 6695285 | STOP RING C-15 OUTER |
| 3 | 6697745 | BEARING |
| 4 | 6695538 | BALL BEARING #6002Z, 32MM/OD |
| 5 | 6688570 | CLUTCH DRUM COMP |
| 7 | 6686612 | GUIDE PLATE |
| 8 | 6686811 | CAMROD |
| 9 | 6688625 | GEAR 2 COMP |
| 10 | 6688909 | GEAR CASE GASKET |
| 11 | 6692101 | GEAR CASE COVER |
| 12 | 6687147 | CUTTER GUIDE 734MM |
| 13 | 6687285 | PROTECTION PLATE |
| 14 | 6695073 | HEX.HOLE FLUSH SCREW 6X16 |
| 15 | 6687086 | CUTTER BLADE 696,5 mm |
| 16 | 6686654 | GREASE SEAL A |
| 17 | 6687187 | WASHER |
| 18 | 6697449 | BOLT |
| 19 | 6697440 | NUT |
| 21 | 6697445 | HEX BOLT 4X12 |
| 22 | 6688643 | GREASE NIPPLE COMP. |
| 23 | 6695495 | HEX.HOLE BOLT 6X18/S |
| 30 | 6690762 | SUPPORT PLATE |
| 32 | 6695175 | NUT |
| 33 | 6695193 | WASHER M6 |
| 60 | 6695987 | GEAR CASE B |
| 69 | 6687302 | CUTTER COVER |
| 72 | 6695475 | SPRING NUT |
| 82 | 6697446 | HEX BOLT 4X10 |
| 83 | 6687275 | GUARD PLATE |
| 88 | 6695547 | USE 999.61608.004 |
| Tools Pag.10 | ||
| 76 | 6684813 | HEX.WRENCH 4 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
