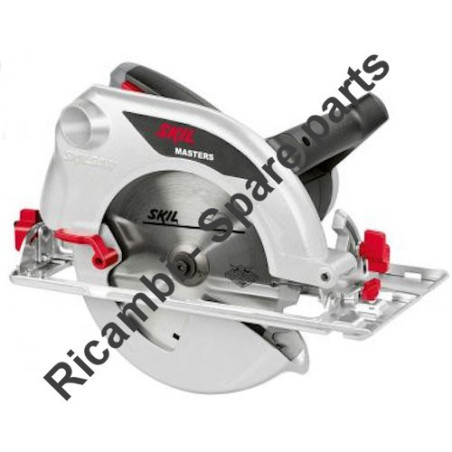

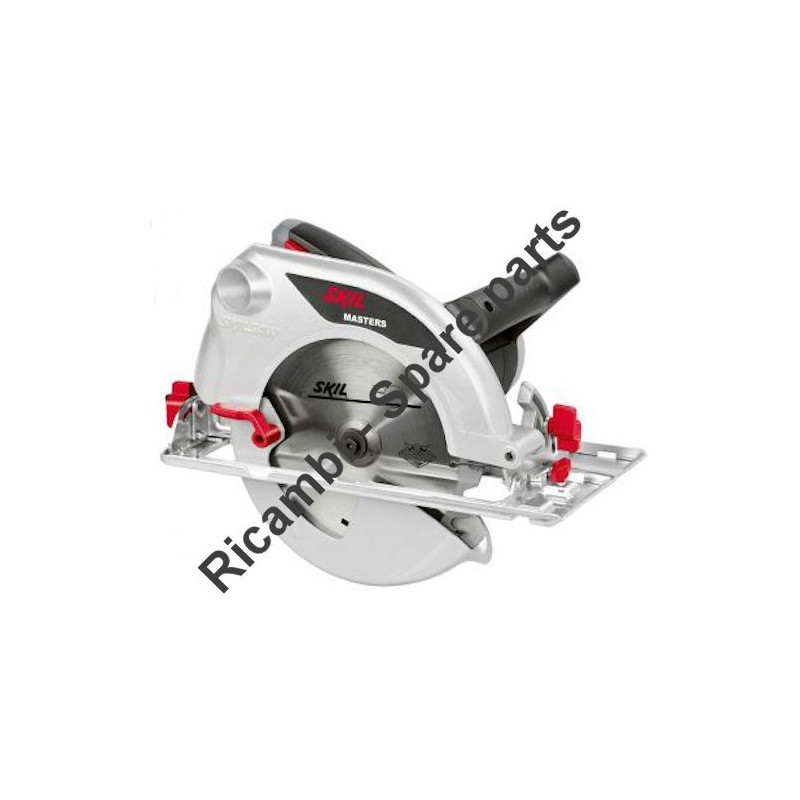

| Circular Hand Saw 5885/F 015 588 511 | ||
| # | Part Num. | Description |
| 2 | 1619P08320 | Field 230V |
| 4 | 1619P06034 | Switch |
| 5 | 1619P02320 | Power supply cord EU 4,15m 2x1,50 H07RN-F |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4x95 MM |
| 7 | 1619P01104 | Cable Clip |
| 12 | 1619P06099 | Suppression Filter |
| 13 | 2610017348 | Deep-Groove Ball Bearing |
| 14 | 1619P06095 | Deep-Groove Ball Bearing |
| 18 | 2603490021 | Torx Oval-Head Screw 4x12 |
| 19 | 1619X00504 | Screw |
| 20 | 1619P06071 | Electronic Module |
| 21 | 1619P06027 | End cap |
| 22 | 1619P06028 | Ring |
| 23 | 1619P01140 | Baffle BLACK |
| 24 | 1619P06031 | Set Of Handles |
| 25 | 1619P06029 | Auxiliary Handle BLACK |
| 27 | 1619P06100 | Cable |
| 28 | 1619P06101 | Cable |
| 29 | 1619P04505 | Cable |
| 30 | 1619P06102 | Cable |
| 31 | 1619P06072 | Terminal Block |
| 32 | 1619P06038 | Switch Button |
| 33 | 2610935251 | Compression Spring |
| 34 | 1619P06502 | Terminal |
| 37 | 1619P06037 | Cover BLACK |
| 38 | 1619P01620 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 46 | 1619P01623 | Shaft |
| 47 | 1900905279 | Deep-Groove Ball Bearing 15x35x11 |
| 48 | 1900905173 | Deep-Groove Ball Bearing 6000-2RS DIN 625 |
| 49 | 1619P01624 | Cylindrical Gear |
| 50 | 1619P01625 | Washer |
| 51 | 1619P06 089 | Locking Washer |
| 52 | 1619P01634 | Clamp Screw |
| 53 | 1619P01628 | Bearing Flange |
| 54 | 1619P01629 | Retaining Plate |
| 58 | 1619P06 041 | Pivoting Blade Guard |
| 59 | 1619P06 033 | Lever |
| 60 | 1619P01632 | Extension Spring |
| 61 | 1619P01633 | Bumper |
| 62 | 1619P02 580 | Spacer Tube |
| 63 | 1619P01635 | Flange Bushing |
| 65 | 1619P06 522 | Stud bolt |
| 66 | 1619P06 026 | Protective Guard |
| 67 | 2917780185 | Slotted Spring Pin DIN 7346-8x45 |
| 68 | 1619P06039 | Clip |
| 69 | 1619P06040 | Base Plate |
| 70 | 1619P06030 | Hinge Bracket |
| 71 | 1619P07250 | Depth-Gauge |
| 72 | 1619P01155 | Support bracket |
| 73 | 1619P01158 | Hinge |
| 74 | 2610923224 | Shoulder Screw |
| 75 | 2915061003 | Hex Nut DIN 985-M 5-8-A |
| 76 | 1619P06 035 | Wing Nut |
| 78 | 2910281201 | Round-Head Bolt DIN 603-M6x20 |
| 79 | 1619P06032 | Adjusting Lever |
| 80 | 1619P01327 | Rod |
| 81 | 2916021013 | Plain Washer 8-ST |
| 84 | 1619P06036 | Wing Screw |
| 87 | 1619P01643 | Screw |
| 88 | 1619P01644 | Screw |
| 89 | 1619P01676 | Screw |
| 90 | 2610924685 | Adjusting Screw |
| 91 | 1619P01677 | Screw M5x10-H |
| 92 | 1619P01678 | Screw |
| 93 | 1619P01679 | Screw |
| 94 | 1619P01680 | Screw M6x20-H |
| 95 | 1619P01447 | Screw |
| 96 | 1619P06527 | Screw |
| 97 | 1619P06528 | Screw |
| 98 | 1619P06046 | Screw |
| 653 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 655 | 1619P01674 | Screw M 6x10 |
| 660 | 1619X01612 | Mitre Fence |
| 801 | 1619P01524 | Motor Housing |
| 803 | 1619P01696 | Armature set 230V |
| 810 | 1619P01685 | Carbon-Brush Set |
| 816 | 1619P02799 | Brush Holder |
| 826 | 2610990845 | Plain Washer |
