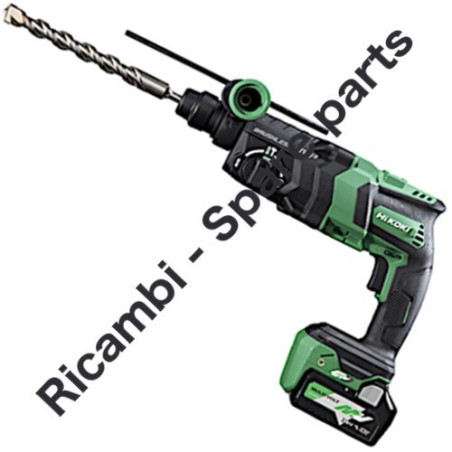

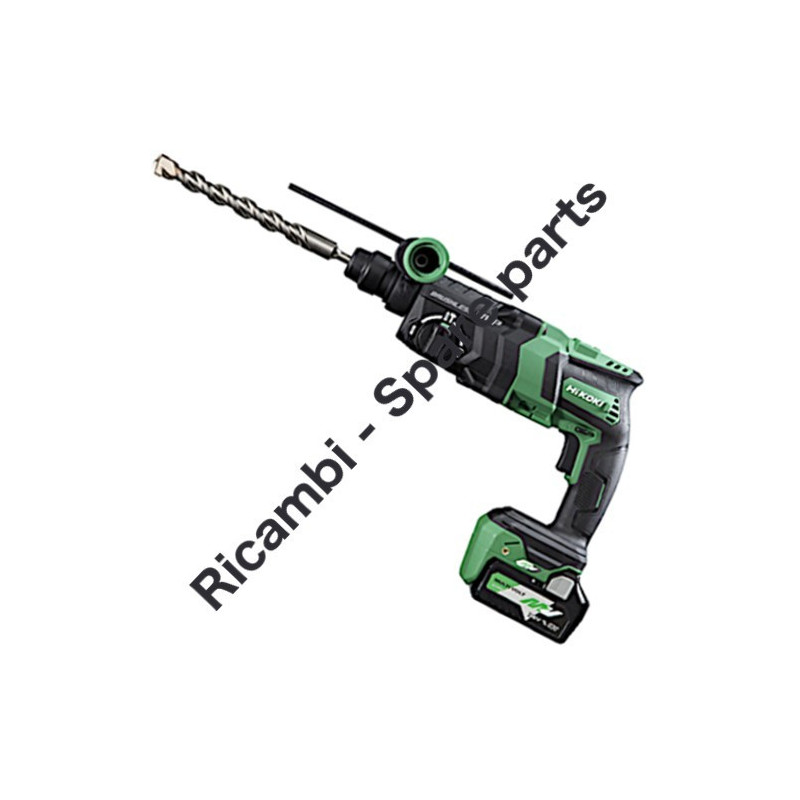

Hikoki Parts for Cordless Rotary Hammer DH36DPE
€3.97
Tax included
Hikoki Spare Parts for Cordless Rotary Hammer DH36DPE
We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Rotary Hammer DH36DPE.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hikoki Spare Parts for Cordless Rotary Hammer DH36DPE
We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Rotary Hammer DH36DPE.
In the following table, look for the model of the Hammer and their spare part.
| HIKOKI DH36DPE Cordless Rotary Hammer Parts | ||
| # | Part Num. | Description |
| 1 | 375363 | GRIP SET |
| 2 | 306345 | FRONT CAP |
| 3 | 306340 | STOPPER RING |
| 4 | 374436 | GRIP |
| 5 | 374437 | BALL HOLDER |
| 6 | 374435 | HOLDER PLATE |
| 7 | 322812 | HOLDER SPRING |
| 9 | 335259 | OIL SEAL |
| 10 | 6805BB | BALL BEARING 6805 |
| 11 | 322789 | PUSHING BUTTON |
| 12 | 317223 | PUSHING SPRING |
| 13 | 334011 | CHANGE LEVER |
| 14 | 878885 | O-RING (S-18) |
| 15 | 376755 | GEAR COVER ASS'Y |
| 16 | 335800 | SPRING (E) |
| 17 | 608VVM | BALL BEARING 608VVC2PS2L |
| 18 | 374422 | SHAFT HOLDER (B) |
| 19 | 959156 |
STEEL BALLS D7.0 (10PCS) |
| 20 | 374426 | CYLINDER |
| 21 | 335265 | SECOND GEAR |
| 22 | 374430 | SPRING (B) |
| 23 | 301679 | WASHER (A) |
| 24 | 948310 | RETAINING RING FOR D30 SHAFT |
| 25 | 335262 | OIL SEAL (A) |
| 26 | 374431 | HAMMER HOLDER (B) |
| 27 | 374427 | HOLDER SLEEVE |
| 28 | 374432 | SECOND HAMMER |
| 29 | 374429 | HAMMER HOLDER (A) |
| 30 | 322805 | DAMPER (A) |
| 31 | 322808 | O-RING (C) |
| 32 | 324524 | DAMPER HOLDER |
| 33 | 322807 | STOPPER RING |
| 34 | 374443 | STRIKER |
| 35 | 372816 | O-RING |
| 36 | 372817 | PISTON |
| 37 | 335793 | PISTON PIN |
| 38 | 335794 | PISTON WASHER |
| 39 | 374434 | LOCK PLATE |
| 40 | 374440 | SECOND PINION |
| 41 | 323182 | CLUTCH SPRING |
| 42 | 375022 | CLUTCH |
| 43 | 331315 | WASHER |
| 44 | 374439 | CHANGE PLATE (C) |
| 45 | 374438 | SECOND SHAFT |
| 46 | 335249 | RECIPROCATING BEARING |
| 47 | 374441 | FIRST GEAR |
| 48 | 374442 | BEARING WASHER |
| 49 | 335245 | O-RING D72.2 |
| 50 | 374625 | INNER COVER |
| 51 | 374627 | WEIGHT (A) |
| 52 | 335282 | LEAF SPRING |
| 53 | 374628 | WEIGHT (B) |
| 54 | 325241 | SEAL LOCK HEX. SOCKET HD. BOLT M3X8 |
| 55 | 322816 | FELT PACKING |
| 56 | 322818 | PACKING WASHER |
| 57 | 876796 | O-RING (P-22) |
| 58 | 376761 | FAN GUIDE |
| 59 | 334008 | AIR CAP |
| 60 | 324543 | FELT PACKING (A) |
| 61 | 374626 | SPRING HOLDER |
| 63 | 361153 | ROTOR ASS'Y (A) |
| 64 | 608DDM | BALL BEARING 608DD |
| 65 | 982631 | WASHER (A) |
| 66 | 377322 | DUST WASHER |
| 67 | 371919 | BALL BEARING 606VVMC3E |
| 68 | 376756 | HOUSING (A).(B) SET |
| 69 | 376760 | MESH |
| 70 | 322853 | PUSHING BUTTON |
| 71 | 376759 | CAP |
| 74 | 373914 | MV LABEL (B) |
| 75 | 376670 | SWITCH |
| 76 | 377107 | WIRING ASS'Y |
| 77 | 378339 | BATTERY TERMINAL |
| 78 | 373041 | REAR BUMPER |
| 79 | 373913 | MV LABEL (A) |
| 80 | 373039 | JOINT RUBBER |
| 81 | 377176 | BATTERY RUBBER (B) |
| 82 | 376757 | BUTTERY HOUSING (A).(B) SET |
| HIKOKI Tassellatore Brushless DH36DPE pag.1 | ||
| 101 | 377175 | NOZZLE SEAL |
| 102 | 370495 | NOZZLE |
| 103 | 370496 | BRUSH CAP |
| 104 | 370497 | RETAINING RING D35 |
| 108 | 370501 | ADJUSTER |
| 109 | 370502 | SPRING (A) |
| 110 | 370838 | BUTTON (A) |
| 111 | 370504 | ADJUSTMENT RAIL |
| 112 | 370509 | BUTTON (B) |
| 113 | 370510 | STOPPED |
| 114 | 370821 | SPRING (E) |
| 115 | 376781 | BUTTON (C) |
| 116 | 376782 | SLIDE PIPE ASS'Y INCLUD.117.118 |
| 117 | 376783 | PACKING (A) |
| 118 | 376784 | PACKING (B) |
| 119 | 376771 | DUST HOUSING A+B |
| 120 | 376772 | DUST BOX ASS'Y INCLUD.121-123 |
| 121 | 376773 | CYCLONE BOX COVER |
| 122 | 376775 | CYCLONE PACKING |
| 123 | 376774 | PIN D3X50 |
| 124 | 376776 | FILTER ASS'Y INCLUD.125-128 |
| 125 | 376778 | FILTER COVER |
| 126 | 376779 | FILTER |
| 127 | 376777 | FILTER CASE |
| 128 | 376780 | FILTER PACKING |
| 129 | 376765 | ADAPTER ASS'Y INCLUD.130-134 |
| 130 | 376770 | ADAPTER DAMPER (B) |
| 131 | 376769 | ADAPTER DAMPER (A) |
| 132 | 376767 | ADAPTER SPRING |
| 133 | 376768 | SLIDER |
| 134 | 376766 | ADAPTER COVER |
| STANDARD ACCESSORIES | ||
| 502 | 374447 | SIDE HANDLE |
| 503 | 303709 | DEPTH GAUGE |
| 505 | 402541 | BOX HIT-SYSTEM CASE 4 WITH SPONGES INCLUD.506-508 |
| 506 | 336472 | LATCH |
| 507 | 336473 | HANDLE |
| 508 | 336474 | PIN |
| 509 | 376763 | INNER TRAY |
| 510 | 402545 | BOX HIT-SYSTEM CASE 2 EMPTY INCLUD.511-513 |
| 511 | 336472 | LATCH |
| 512 | 336473 | HANDLE |
| 513 | 336474 | HINGE |
| 514 | 376764 | INNER TRAY |
| OPTIONAL ACCESSORIES | ||
| 601 | 752098 | HAMMER DRILL CHUCK SET 13MM |
| 602 | 752053 | CHUCK HANDLE |
| 603 | 303335 | RUBBER CAP |
| 604 | 752097 | DRILL CHUCK AND ADAPTER SET |
| 605 | 744085 | CHUCK ADAPTER (G) (SDS PLUS) |
| 606 | 752058 | DRILL CHUCK 13VLRB-D |
| 607 | 331966 | FLAT HD. SCREW (LEFT HAND) M6X20 |
| 608 | 987576 | CHUCK WRENCH FOR 13VLB-D,13VLR-D |
| 609 | 752056 | DRILL CHUCK 13VLD-D |
| 610 | 971787 | DUST CUP |
| 611 | 372200 | HOOK |
| 612 | 373378 | TRUSS HD. SCREW M4 (BLACK) |
| 613 | 931844 | STOPPER |
| 614 | 971511Z | + DRIVER BIT (A) NO.2 25L |
| 615 | 971512Z | + DRIVER BIT (A) NO.3 25L |
| 617 | 306885 | DUST COLLECTOR (B) ASS'Y |
| 618 | 306910 | SOCKET ADAPTER (B) |
| 621 | 335782 | GREASE FOR ROTARY HAMMER (60G) |
| 622 | 335781 | GREASE FOR ROTARY HAMMER (500G) |
| 623 | 376971 | DUST EXTRACTION UNIT (IN CARTON BOX) |
| 624 | 376972 | DUST EXTRACTION UNIT (IN STACKABLE CASE) |
