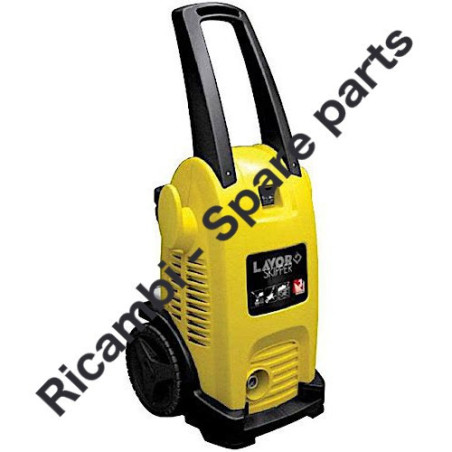

Lavor Pressure Cleaner SKIPPER 19 Parts
search
  • Lavor Pressure Cleaner SKIPPER 19 Parts
  • Lavor Pressure Cleaner SKIPPER 19 Parts Drawing
  • Lavor Pressure Cleaner SKIPPER 19 Parts Drawing - 1

Lavor Pressure Cleaner SKIPPER 19 Parts

€114.75
Tax included

Lavor Original Parts for Pressure Cleaner SKIPPER 19 - 8.073.0001

We have the original Lavor Original Parts for Pressure Cleaner SKIPPER 19 - 8.073.0001, the diagram, parts list and tool repair that help you need to get your tools running like new again.



ITEM CODE: 5.001.I763C
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Lavor Original Parts for Pressure Cleaner SKIPPER 19 - 8.073.0001

We have the original Lavor Original Parts for Pressure Cleaner SKIPPER 19 - 8.073.0001, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Open PDF File in this Page to choose Spare Parts for Pressure Washer Lavor.
SKIPPER 19 - 8.073.0001

IDRO SKIPPER 19 220-240/50-60 -G- TS EU 1L (20L) LWS
Motor Pump Pag.1
# Part Num Description
0 5.001.I763C BRUSH MOTOR PUMP PT'03 230/50 7'10 TS C/ASP. M.13KG (8850)
1 5.009.0924 BRUSH MOTOR ASSY.'03 230/50 C/F L.INT.+PINION F.L=600 C/ANTID.(8850)
2 6.005.0180 EXT KIT 166 LW ROLLER CAGE + NEEDLE ROLLER 3047 PT'03-SD
3 4.007.0205 PIN 10X70 X PARTNER-ED BRUSH '98
4 5.009.0657 PLATE ASSY. 7'30 C/CROWN A Z 50
5 4.007.0328 EXT THRUST BALL BEARING 35X55X12 FOR PT'03
6 6.005.0181 EXT KIT 167 LW 3 PISTONS + SPRINGS PT'03
9 6.005.0226 ORD KIT "O-RING FOR PT'03"
10 6.005.0183 EXT KIT 169 LW INJECTOR 1,7 + HOLDER + CHECK VALVE PT'03
11 6.005.0184 ORD KIT 170 LW ASP./DELIVERY VALVE PT'03
12 4.005.0210 CYLINDER HEAD PT'03 LAV.
13 6.005.0079 ORD KIT 79 LW OIL SEAL RINGS X PARTNER D.12/FIBER
14 6.005.0133 ORD KIT 124 WATER SEAL RINGS PARTNER D.12
15 6.005.0134 KIT 125 LW BRASS SEALING RINGS + SPACERS PT D.12
17 4.005.0211 PISTON GUIDE BODY PT'03 C/ASP.DET. HOLE
18 5.009.0716 COMPLETE VALVE ASSY. C/TS X PT'03 CABLE L=510 SPRING 13KG
19 5.007.0187C EXT GUIDE BODY PT'03 PIST.D.12 C/TS-ASP.-COMP.VALVE-M.13KG
20 5.008.0182C CYLINDER HEAD PT'03 D.12
Chassis Pag.2
1 6.005.0232 KIT 215 LW BASE DX+SX SKIPPER
2 4.013.0496 FRONT+REAR FAIRING SKIPPER -G- PANT.108C
3 5.001.I763C MOTOR PUMP.SPAZZ.PT'03 230/50 7'10 TS C/ASP. M.13KG (8850)
4 4.008.0721 MOTOR CONVEYOR DX (NOT FOR U96 FL.ALL./9655)
5 5.009.0213 EXT SWITCH ASSY. 0/1 BIP. 12(10)A + TRANSPARENT PROTECTION
6 4.008.1015 PREDATOR HANDLE
7 4.008.1016 PREDATOR ACCESSORY HOLDER
8 4.008.1017 PREDATOR TANK WHITE TRANSPARENT
9 6.005.0231 EXT KIT 214 LW WHEELS + COBRA PIN
11 4.012.0174 CABLE H05VV-F 2X1 MT.5.4 SPLASHPROOF SCHUKO F/F
12 4.018.0076 EXT HOSE 1/4 14MPa L=6000 1/4F.+ SWIVEL M22X1.5 D.15
13 6.001.0083 EXT GUN S'01 -EU-
14 6.002.0191C EXT LANCE S'99 1.025 A/B (BLACK) AND SP.00
16 4.008.0031 ORD WATER INLET FILTER D.16 CONICAL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor SKIPPER 19 - 8.073.0001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS
New

Download

Lavor SKIPPER 19 Parts Drawing

Lavor SKIPPER 19 Parts Drawing

Download (770.56KB)
