Maruyama Parts for Chainsaw MCV4200S 15"
search
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"
  • Maruyama Parts for Chainsaw MCV4200S 15"

Maruyama Parts for Chainsaw MCV4200S 15"

€178.98
Tax included

Maruyama Parts for Chainsaw MCV4200S 15"

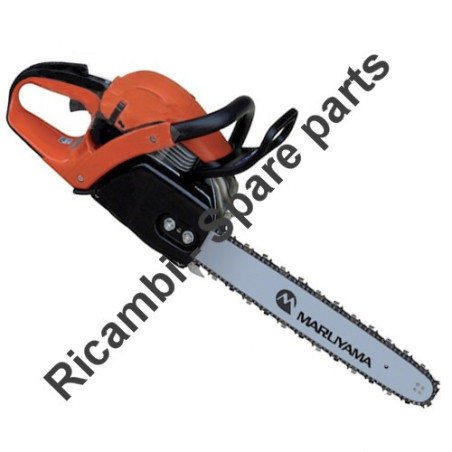

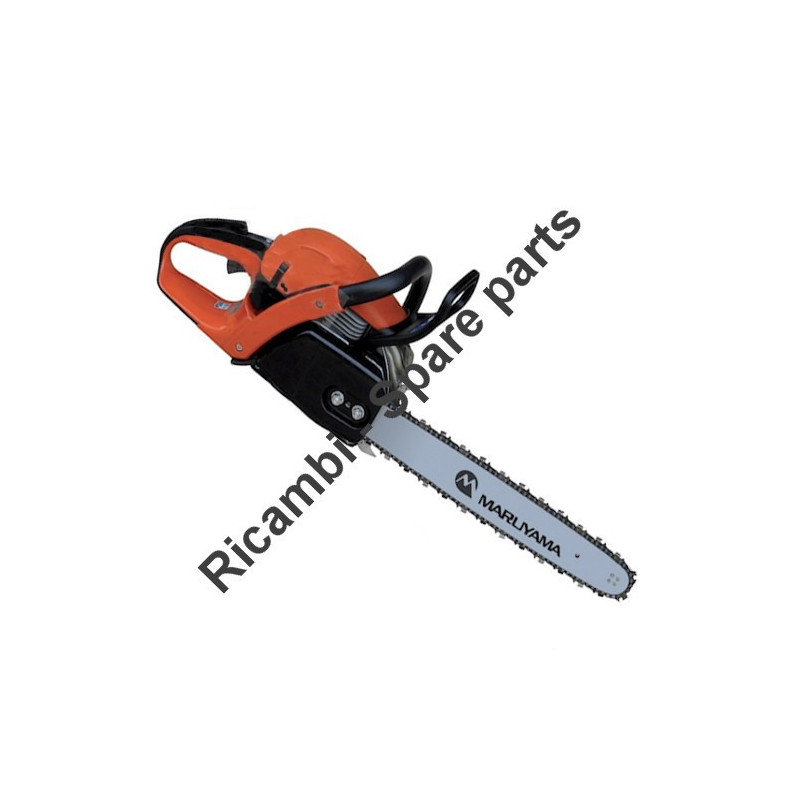

Fix Your Chainsaw Maruyama MCV4200S 15" .325". All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 195114172
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Maruyama Parts for Chainsaw MCV4200S 15"

Fix Your Chainsaw Maruyama MCV4200S 15" .325". All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Maruyama MCV4200S 15"

MCV4200S 15" .325" (EU) - pag.1
# Part Num. Description
1 195114172 FUEL TANK CPL. RED
1 195114900 TANK CPL. RED
2 195117050 GRIP OUTER SHELL
3 913455164 SCREW
4 195117030 CATCH LEVER
5 195117020 THROTTLE LEVER
6 195117010 SPRING
7 170175010 AIR VALVE CPL.
8 195114050 FUEL LINE
9 963211020 O RING
10 965452090 TUBE
11 965452660 TUBE
12 181114202 TANK CAP CPL.
13 963229036 PACKING RING
14 320163447 FUEL FILTER
15a LABEL, TANK
16 195310010 TUBULAR HANDLE
17 195310950 COVER RED
18 195114150 SPRING
19 908005165 H.L. SOCKET HEAD BOLT
20 913455164 SCREW
21 913455164 SCREW
22 913455164 SCREW
23 913455164 SCREW
24 195114160 CUP WASHER
79 195114060 FUEL NIPPLE
MCV4200S 15" .325" (EU) - pag.2
25 195171020 CONNECTING MUFF
26 195173150 AIR FILTER CPL.
26 195173050 AIR FILTER CPL.
27 195131301 BOTTOM CPL.
28 908005165 H.L. SOCKET HEAD BOLT
29 908005165 H.L. SOCKET HEAD BOLT
30 195155050 CONTACT SPRING
31 195155021 CHOKE LEVER
32 195147010 IGNITION CABLE
33 970502110 ISOLATING HOSE
34 195117110 THROTTLE LINKAGE CPL.
36 913455164 SCREW
37 913455164 SCREW
38 908004406 H.L. SOCKET HEAD BOLT
41 010155010 PRIMER
42 965452090 TUBE
43 965452090 TUBE
44 181131021 INSERT
45 195131040 SUCTION HOSE
56 963220013 O RING
57 195131090 PACKING RING
58 195173221 FILTER-SET
58 195173211 FILTER-SET
76 195118550 COVER BLACK
76 195118910 COVER RED
89 195118694 HOOD CPL. BLACK
89 195118940 HOOD CPL. RED
91 195118080 PROTECTION FILM
92 195118140 INSERT
93 195155031 GUIDE
94 908005165 H.L. SOCKET HEAD BOLT
95 980114928 LABEL
MCV4200S 15" .325" (EU) - pag.3
46 038174030 CONNECTING LINK
48 908005165 H.L. SOCKET HEAD BOLT
49 909005105 SCREW
50 908305405 H.L. SOCKET HEAD BOLT
52 195174280 SPARK ARRESTER SCREEN
54 195174550 MUFFLER
55 195174060 GASKET
59 195143030 ISOLATING WASHER
60 195131202 CYLINDER / PISTON CPL.
61 195132100 PISTON CPL.
62 195132020 PISTON RING
63 195132030 PISTON PIN
64 195132050 SPRING RING
65 908405205 H.L. SOCKET HEAD BOLT
66 195131130 GASKET
67 195120300 CRANKSHAFT CPL.
68 960123129 COMBINATION BALL BEARING
69 195111910 CRANKCASE CLUTCH SIDE, BLACK
70 195111940 CRANKC. M. SIDE BLACK
71 936430160 CLAMPING PIN
72 195111061 GASKET
73 195111080 PROTECTION FILM
74 165250010 SPIKE BAR
75 908005165 H.L. SOCKET HEAD BOLT
77 010245030 VENT VALVE
78 908405205 H.L. SOCKET HEAD BOLY
87 181114202 TANK CAP CPL.
88 963229036 PACKING RING
96 962211007 NEEDLE CAGE
MCV4200S 15" .325" (EU) - pag.4
59 195143030 SOLATING WASHER
100 195160900 STARTER ASSY. BLACK
103 195160070 STARTER GRIP
104 195160080 WASHER
105 985000150 STARTER ROPE
106 021164010 STARTER ROPE
107 195160110 REWIND SPRING
108 195160040 CABLE DRUM CPL.
109 195160030 SPRING
110 195160020 STARTER WHEEL
111 195160010 SCREW
112 908005165 H.L. SOCKET HEAD BOLT
112 980115937 LABEL
113 980115936 LABEL
114 195118040 AIR GUIDE PLATE
115 195143200 IGNITION COIL CPL.
116 908805205 SCREW
117 970502110 ISOLATING HOSE
118 965604180 SPRING
119 957604220 PLUG CAP CPL.
120 965603040 SPARK PLUG
121 195141103 FLYWHEEL CPL.
122 195166100 STARTER RATCHET CPL.
123 920308024 HEXAGONAL NUT
124 926208001 SPRING WASHER
MCV4200S 15" .325" (EU) - pag.5
125 195213500 HAND GUARD CPL.
126 908005165 H.L. SOCKET HEAD BOLT
127 181213320 BUSHING
128 181213170 HANDGUARD GUIDE, CPL.
129 181213023 TENSION SPRING
130 181213100 BRAKING MECHANISM
131 927304000 SAFETY WASHER
132 181213011 BRAKE SPRING
133 927408000 WASHER
134 181224081 DISC
135 181223312 CLUTCH DRUM CPL.
136 175180101 CLUTCH ASSY.
137 024184021 SPRING
138 001182042 DISC
139 179245201 OIL PUMP CPL.
142 181245100 SUCTION LINE
143 021245060 SPRING
144 001245020 HOSE STEM
145 181245120 PRESSURE LINE
146 195245010 BUSHING
147 181245090 PUMP DRIVE
148 908005165 H.L. SOCKET HEAD BOLT
150 185114237 LABEL
150 980115808 CAUTION LABEL
MCV4200S 15" .325" (EU) - pag.6
155 195232010 BOLT
157 195213190 COVER
158 908105126 SCREW
159 195213900 SPROCKET GUARD CPL. BLACK
160 923208004 HAXAGONAL NUT
161 195213300 CHAIN TENSIONER CPL.
162 915535100 SCREW
163 963207020 PACKING RING
164 181213250 ADJUSTING SCREW
165 181213230 TENSIONING SCREW
166 181213270 TRANSMISSION COVER
167 165213240 TENSION SLIDE
168 181213260 TENSIONING SCREW BEARING
169 195213120 GUIDE PLATE
MCV4200S 15" .325" (EU) - pag.7
350a 195153200 CARBURETOR
351 195153580 KIT CHOKE SHAFT
352 195153570 KIT THROTTLE SHAFT
353 195153510 REPAIR KIT
354 195153500 SET GASKETS/DIAPHRAGM
355 195153340 ADJUST SCREW
356 195153350 ADJUST SCREW
358 038153360 SCREW
359 195153230 PUMP COVER CPL.
360 195153360 DIAPHRAGM COVER
361 001153020 SCREW
MCV4200S 15" .325" (EU) - pag.8
406 484038141 SPROCKET NOSE BAR
407 512484064 SAW CHAIN
408 510084020 TIE STRAP WITH RIVETS
409 510084040 TIE STRAP
411 952010840 CHAIN PROTECTION
413 941713160 UNIVERSAL WRENCH
414 940827000 ANGLED SCREW DRIVER
415 944340001 SCREWDRIVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
