Lavor Original Parts for Pressure Cleaner EQ18
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner EQ18 230/50 -V- PORTOGHESE(LWS) - 8.026.0006

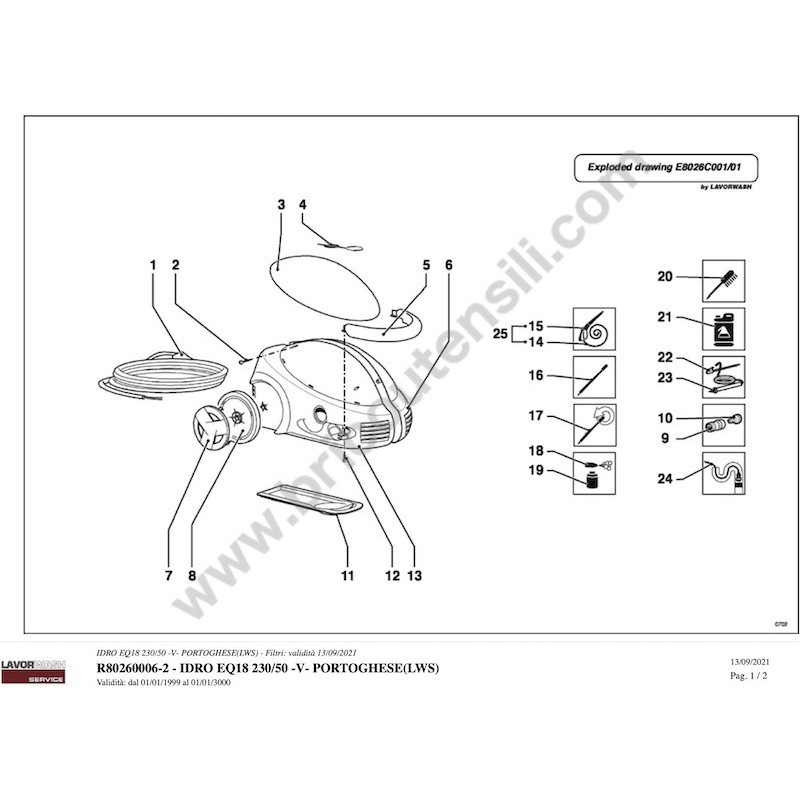

In the following tables, look for the spare part and its respective code.
| 8.026.0006-2 - IDRO EQ18 230/50 -V- PORTOGHESE(LWS) Pag.1 | ||
| # | Part Num. | Description |
| 001 | 4.012.0071 | Substituted by 4.012.0149 CABLE H05RN-F 3X1 MT.5 |
| 002 | 3.002.0112 | CROSS HEAD -TORX SCREW 3,9x25 HI-LO ZNT |
| 003 | 4.008.0392 | YELLOW COVER FOR EQ |
| 004 | 4.007.0114 | NOZZLE CLEANING PIN |
| 005 | 4.008.0351 | HANDLE |
| 006 | 4.013.0233 | GREEN COVER EQ |
| 007 | 4.008.0317 | YELLOW WHEEL COVER |
| 008 | 4.008.0316 | WHEEL |
| 010 | 3.100.0005 | Substituted by 3.100.0082 QUICK COUPLING INLET CONNECTOR |
| 011 | 4.008.0353 | HANDLE |
| 013 | 4.013.0232 | INLET GREEN COVER EQ (RAL 5020) |
| 014 | 4.X18.0010 | Substituted by 4.018.0076 HOSE 1/4 130 BAR L.6000 1/4F(M ARKED MAC |
| 015 | 6.001.0029 | Substituted by 6.001.0083 COMPLETE S96 GUN WITH BRASS CONNECTION |
| 016 | 6.002.0104 | Substituted by 6.002.0209C S93 LANCE D.1.05 GREY-REINFORC ED |
| 018 | 5.011.0033 | REINFORCED FOAM LANCE |
| 019 | 3.601.0002 | YELLOW TANK DETERGENT FOR FOAM LANCE |
| 022 | 5.012.0038 | KIT 2PCS SELF TAPPING SCREWS (CROSS HEAD) 3,9X25 |
| 50010213-1 - MOTOPOMPA PARTNER'96 230/50 D.110x90 (1800W) S/M Pag.2 | ||
| 000 | 5.001.0179 | Substituted by 5.001.0371 MOTOPOMPA PARTNER'96 240/50 D. 125x80 S/M |
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 003 | 4.008.0356 | ELECTRICAL BOX |
| 004 | 3.002.0111 | SCREW TC-TORX M4X10 ZNT |
| 005 | 3.404.0017 | CAPACITOR 25mF 450V D.39x94 F/M |
| 006 | 4.008.0098 | Substituted by 4.008.0613 PARTNER ELECTRIC BOX GASKET ESP2 |
| 007 | 4.008.0236 | FAN COVER FOR MOTOR '96 |
| 008 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 009 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 010 | 5.002.0089 | MOTOR FRAME '96 D.110 H90 230/50 2P |
| 011 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 012 | 5.005.0034 | MOTOR CRANKSHAFT 110'97 D.55 H.90 ESP. 01 |
| 013 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 014 | 4.005.0099 | Substituted by 5.009.0166 FRONT FLANGE FOR MOTOR 110'96 |
| 015 | 3.201.0008 | OIL SEALING RING D. 17X35X7 |
| 016 | 3.001.0017 | Substituted by 3.001.0030 BALLS RIGID RADIAL BEARING 630 3 |
| 017 | 4.005.0078 | INCLIN.PLATE 6.45 CILINDRIC HO LE |
| 018 | 3.001.0003 | DISK AS 4565 |
| 019 | 3.001.0004 | Substituted by 3.001.0025 NEEDLE ROLLER CAGE Axk4565 -STTEL- |
| 020 | 4.007.0001 | THRUST SHOE D.65X30X6 (C10PB) FINISHED |
| 021 | 5.009.0090 | ASSEMBL.BOLT/PISTON D.14 RETIF IED |
| 022 | 3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
| 023 | 4.007.0025 | PISTON RECALL SPRING D.14 |
| 049 | 3.200.0013 | O-RING 11,1X1,78 |
| 050 | 3.201.0004 | Substituted by 6.005.0019 OIL SEALING RING DIAM.14X22X5/7 |
| 051 | 3.002.0094 | SCREW TCEI M6X30 ZNT |
| 053 | 4.006.0109 | TAPERED 1/8 CAP |
| 054 | 3.200.0018 | OR-RING GASKET 9.92X2.62 SHORE90 |
| 055 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 056 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 057 | 5.009.0005 | DELIVERY SUCTION VALVE LAVOR 1 |
| 058 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 062 | 4.008.0348 | OIL SEAL SPACER |
| 063 | 4.006.0036 | SEALING HOLDER RING D.14 |
| 065 | 3.201.0009 | WATER SEAL N 14-12 D.14x22x6 |
| 066 | 5.009.0015 | COMPLETE SUCTION VALVE |
| 067 | 4.005.0077 | Substituted by 4.005.0156 MANIFOLD PARTNER'93 DEEP SEATS |
| 068 | 3.002.0093 | Substituted by 4.007.0229 SCREW TCEI M6X70 ZNT SWAGEFOR M |
| 077 | 5.009.0033 | PARTNER VALVE CAP WITH O-RING |
| 078 | 4.007.0064 | VALVE SPRING DIAM.10X25 |
| 079 | 5.009.0177 | ASS.PISTON D.14 X DERLYN VALVE 100 |
| 080 | 5.009.0339 | Substituted by 5.009.0412 VALVE BODY PARTNER 3,6-2,05 WITH O-RING |
| 081 | 4.005.0076 | Substituted by 4.005.0171 PIST. BODY GUIDE WITHOUT INJEC TOR |
| 082 | 5.007.0099 | Substituted by 5.007.0126 CORPO GUIDA PIST.D.14 S/R S/IN 3,6-2,05 |
| 083 | 5.008.0048 | PARTENR HEAD '93 WITHOUT INDIC ATOR |
| 085 | 5.006.0121 | MOTOR D.110 H.90 230/50 |
| 087 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
