Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1
Fix Your Hot Water High Pressure Cleaner 8.611.0002-1 - IDRO LKX 40 230/400-50 -G-. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.

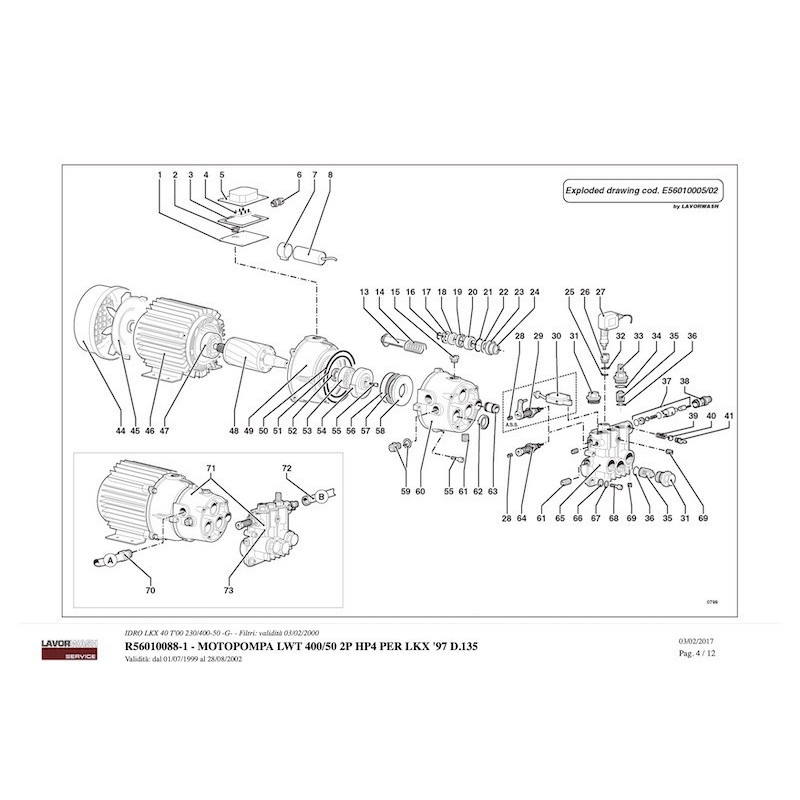

| 56010088-1 - MOTOPOMPA LWT 400/50 2P HP4 PER LKX '97 D.135 Pag.1 | ||
| # | Part Num. | Description |
| 000 | 5.601.0075 | MOTOR PUMP LBM 230/50 HP3 130/1 1 LKX TS'97 |
| 001 | 4.607.0019 | TERMINAL BLOCK PLATE X MOT HOUR GMV |
| 002 | 4.606.0008 | CABLE GLAND FOR GMV D.150 ENGINE |
| 003 | 3.299.0004 | GFP GASKET. 80 X TERMINAL COVER. FP.80 |
| 004 | 3.405.0005 | TERMINAL BOARD 50X32 |
| 005 | 3.410.0008 | TERMINAL COVER FP.80 X PIAST R.PRESSAC. 80/112 MP |
| 006 | 3.406.0012 | CABLE GLAND PLATE PG. 16 X COPRIM.FP80 |
| 013 | 5.009.0089 | Replaced by 5.009.0088 STOP / PISTON ASSEMBLY D.15 CER AMICA |
| 014 | 4.007.0011 | PISTON RECALL SPRING D.15 d. 3 L.45 |
| 015 | 5.009.0159 | OIL CAP COMPLETE WITH GASKET. 3 / 8G |
| 016 | 3.200.0004 | GASKET OR 12.4X1.78 REF. 2 050 SH70 |
| 018 | 4.606.0041 | SEC. RING SUPPORT SEAL 130/8 |
| 019 | 3.201.0003 | SEAL RING N.15X22X4 WATER |
| 020 | 4.606.0040 | BUSH SECOND SEAL 130/8 O T. |
| 021 | 3.200.0003 | GASKET OR 25.12 X 1.78 RI F.2100 |
| 022 | 4.008.0109 | 15X25X2 ANTI-EXTRUSION RING FOR SEAL |
| 023 | 3.201.0006 | SEAL RING PDF 15X25X5 G11046N3582 |
| 024 | 4.008.0108 | HEAD RING D.15 H.4 |
| 025 | 3.200.0016 | GASKET OR 8,73X1,78 REF. 108 SH70 |
| 026 | 4.606.0054 | PRESSURE SWITCH FITTING (sold out) 1/8 |
| 027 | 3.704.0006 | PRESSURE SWITCH PS2 25BAR 1/8 L = 700 (2 WIRES) |
| 028 | 3.002.0148 | STEI M6X6 TAPERED FLAT SCREW DIN 906 |
| 031 | 5.009.0101 | ASP./MAND. VALVE CAP WITH OR MOUNTED |
| 032 | 3.200.0017 | GASKET OR 9,13X2,62 Sh.70 REF. 109 |
| 033 | 4.606.0043 | VALVE CAP ASP.MAND.CAPILL. 1/4 |
| 034 | 3.200.0005 | SEAL OR 15.6 X 1.78 REF. 2062 |
| 035 | 5.009.0215 | SUCTION VALVE DELIVERY WITH STEEL P IATTELLO |
| 036 | 3.200.0019 | GASKET OR 12.4X1.78 SH90 |
| 037 | 5.609.0018 | VALVE ASSEMBLY NON-RETURN V ALV. COMP. |
| 038 | 5.609.0022 | COMPLETE INJECTOR FITTING D. 1.8 |
| 039 | 4.007.0014 | DETERGENT VALVE SPRING D4, 5/6 L = 7 WIRE D.0,3 INOX |
| 040 | 3.005.0001 | INOX BALL 420 DIAM.5 (precision grade G 500) |
| 041 | 5.009.0164 | Replaced by 6.005.0030 HOSE HOLDER DETERG.COMP L.DI OR |
| 044 | 4.608.0088 | MOTOR FAN COVER D.135 |
| 045 | 3.099.0108 | LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP |
| 046 | 5.602.0011 | Replaced by 5.606.0027 CARCASSA LW.T 400/50 2P D.135 H.100 |
| 047 | 3.001.0001 | RADIAL BALL BEARING 6204-2Z (X MOT.EL.150'C) |
| 048 | 5.605.0019 | Replaced by 5.606.0027 ROTARY SHAFT D.70 H100 ALB. O MNIA |
| 049 | 4.605.0024 | Replaced by 5.609.0036 ENGINE FLANGE D.135 FOR OMNIA |
| 050 | 3.200.0015 | GASKET OR 117 X 2,5 |
| 051 | 3.200.0014 | GASKET OR 85 X 2,5 NITRIL ICA |
| 052 | 3.201.0001 | SEAL RING 20/35/6 / 6.5 BABS L |
| 053 | 3.001.0002 | BALL BEARING BEARING 20x52x15 7304 B |
| 054 | 4.005.0125 | CONICAL PLATE INC. 9.16 CORS = 7,9-7,83 ROLLER BEARING |
| 055 | 3.002.0003 | SCREW TCEI M8X25 UNI 5931 ZNT |
| 056 | 3.001.0003 | RALLA AXIAL BEARING AS4565 |
| 057 | 3.001.0025 | ROLLER BEARING -STEEL- AXK4565 |
| 058 | 4.007.0001 | THRUST BEARING RING D.65x30x6 (C10Pb) FINISHED |
| 059 | 3.099.0003 | SLNS-3/8 HOB BY OIL LEVEL INDICATOR |
| 060 | 4.005.0055 | PISTON GUIDE BODY OMNIA 130/8 ALUM. |
| 061 | 3.002.0004 | STEI SCREW 3/8 G.DIN 906 (OIL SCREW CAP) |
| 062 | 3.201.0002 | SEAL RING BADSLSF 15X25, 4X5 / 7 |
| 063 | 5.009.0136 | JUNCTION SLEEVE OMNIA C OMPL.DI OR |
| 064 | 5.609.0052 | Replaced by 6.005.0078 VLV AUCTION ASSEMBLY COMPENSATED D.11 FOR BRASS HEAD |
| 065 | 4.606.0072 | Cylinder head OT 130/8 COMPE NSATA VALVE D.11 |
| 067 | 3.004.0022 | SNHOR WASHER D.8X13 Th.0,8 |
| 068 | 3.002.0078 | SCREW TCEI M8X40 UNI 5931 ZNT |
| 069 | 4.006.0109 | 1/8 CONICAL CAP |
| 070 | 4.618.0030 | B.P. TUBE D.20X10 3 / 8M.-3 / 8M. L.450 |
| 071 | 5.601.0088 | Replaced by 5.601.0164 MOTOR PUMP LWT 400/50 2P HP4 FOR LKX '97 D.135 |
| 072 | 4.618.0035 | PIPE R1 PUMP / SERP. L = 600 1 / 2F GIR 90 '- 3 / 8F GIR 90' |
| 073 | 5.008.0101 | HEAD OCT. 97 VALVE COMPENSATED D.11 X HOT |
| 86110002-1 - IDRO LKX 40 230/400-50 -G- Pag.2 | ||
| 001 | 3.002.0122 | LARGE BOMB HEAD SCREW SIZE CROC AND M6X12ZNT |
| 002 | 4.613.0111 | UPPER FAIRING JOLLY 5 / L KX YELLOW |
| 003 | 4.608.0028 | Replaced by 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX |
| 004 | 4.612.0031 | Replaced by 4.612.0046 POWER CABLE H05VV-F 4X1.5 L = 6000 |
| 005 | 4.608.0073 | SHORT SPACER FOR SERBAT. JOLLY 4/93 |
| 006 | 5.009.0032 | PLASTIC OIL FILLER CAP 3/8 WITH GUARN. |
| 007 | 4.608.0074 | LONG SPACER FOR SERB. JOLLY 4/93 mm63 |
| 008 | 5.613.0096 | AXLE BOILER JOLLY 4/93 |
| 010 | 3.200.0038 | GASKET OR 53,65x2,62 REF. 3212 |
| 011 | 5.613.0115 | REAR DRIVE AXLE JOLLY 5 / LKX |
| 012 | 3.006.0026 | WHEEL D.260X85 FULL BLACK |
| 013 | 3.099.0096 | Replaced by 4.608.0434 STUD D.135 BLACK WHEEL COVER X WHEEL D.260 |
| 015 | 3.100.0043 | ATT. RAPIDO GIREVOLE 3/8 M MV G8 (461) 26075050 |
| 017 | 3.700.0015 | Replaced by 3.700.0036 PISTOL RL200 3 / 8M + S4 + ATT.RAP 30015060 |
| 018 | 3.701.0015 | STAINLESS STEEL LANCE L.700 COATED ROS +. + ATT. RAP. M22 41102850 |
| 019 | 3.103.0012 | Replaced by 3.103.0049 HIGH PRESSURE NOZZLE 1 / 8M 1504 |
| 8611X002-1 - IDRO LKX 40 230/400-50 BASE DAFINIRE Pag.3 | ||
| 001 | 3.401.0048 | THERMAL MS 25 6.3 / 10 AMP. NAKED |
| 002 | 4.608.0079 | DASHBOARD '93 WITH COMPLETE SCREEN PRINTING |
| 003 | 4.608.0019 | BLACK THERMOSTAT-TAP KNOB 3079/1 |
| 004 | 4.608.0018 | Replaced by 4.608.0019 BLACK TAP KNOB 3081/1 |
| 005 | 3.403.0001 | Replaced by 3.403.0091 THERMOSTAT 30/150 BULB D.5 (2 FASTON) |
| 006 | 4.606.0004 | HOSE HOLDER D.7 1/8 M (BRASS) |
| 007 | 4.608.0065 | DASHBOARD BOX '93 |
| 008 | 4.608.0071 | DASHBOARD COVER DASHBOARD '93 |
| 009 | 4.008.0122 | Replaced by 5.009.0165 FRAME FOR SEAL SWITCH AND HOBBY |
| 010 | 4.008.0121 | Replaced by 5.009.0165 COVER SWITCH COVER HOBB Y |
| 012 | 3.401.0038 | Replaced by 5.009.0213 SWITCH 0/1 BEEP16 (8) -12 (10) A |
| 015 | 3.107.0004 | PRESSURE GAUGE D.50 0/315 BAR 1/4 P OST + BRACKET (ref 129 939 81) |
| 016 | 4.618.0014 | PRESSURE GAUGE TUBE 2X380 max630bar 1/4 F / GIR-1/4 F / GIR |
| 017 | 3.105.0002 | Replaced by 3.105.0003 TAP REGOL.DETERG. 1/8 F.F. + NUT |
| 018 | 3.405.0023 | TERMINAL BLOCK PA / 32 1730 9 POLES |
| 020 | 4.608.0078 | DASHBOARD GASKET '93 (3x 900) |
| 025 | 5.611.0002 | BURNER FLANGE COMPLETE 1.25-45 RH |
| 026 | 4.607.0001 | CANDLE HOLDER PLATE 15x 32 TH. 3,5 |
| 027 | 4.614.0001 | Replaced by 4.614.0004 ELECTRODE 0772589000 |
| 028 | 3.100.0017 | ELBOW FITTING 4 1/8 COPPER PIPE |
| 029 | 3.099.0015 | SEEGER I RING D.21 SP1 DIN 472 |
| 030 | 4.608.0002 | SLIDE DIAM. 20 TH. 1,8 |
| 031 | 4.605.0001 | WORKED BURNER FLANGE |
| 032 | 3.104.0004 | Replaced by 3.104.0028 DIESEL NOZZLE 1.25 45-B |
| 033 | 4.606.0064 | COLUMN FIXING CARENATUR A LKX |
| 034 | 4.616.0006 | COPPER TUBE DIAM. 4 COMPACT |
| 035 | 3.400.0013 | Replaced by 6.605.0102 TRANSFER IGNITION 230/50 818C / S |
| 036 | 4.607.0011 | ZNT MOTOR FOOT FIXING BRACKET |
| 037 | 5.609.0023 | VENTILATOR PROTECTION GRID ASSEMBLY |
| 038 | 4.608.0036 | TERMINAL FOR POWER CORD |
| 039 | 4.608.0068 | COMPACT 4P GUIDE HANDLE |
| 040 | 5.613.0119 | LKX HANDLE SUPPORT -VERNICIAT O- |
| 041 | 4.608.0103 | CARTER FOR GASOLI OR LKX PUMP PROTECTION |
| 042 | 3.099.0028 | FAN 146x72 LH.HOLE DM 12.7 |
| 043 | 3.300.0003 | MOTOR X BRUC. 100W / 230-240 / 50H z IP55 |
| 044 | 3.099.0012 | Replaced by 6.605.0173 PLASTIC JOINT FOR DIESEL PUMP |
| 045 | 3.100.0015 | RACC. STRAIGHT 1/8 M. FOR COPPER PIPE D.4 |
| 046 | 3.551.0002 | Replaced by 3.551.0037 DOUBLE PIPE DIESEL PUMP + ELECTR. 220V D DX |
| 047 | 3.004.0015 | FLAT WASHER D.22X39 Th.3 ZNT UNI6592 |
| 048 | 4.606.0013 | SERPENT FIXING NUT. 1/2 O T SPEC. |
| 049 | 5.611.0070 | Replaced by 5.611.0067 DIESEL FILTER GROUP (PAPER) LKX |
| 050 | 4.618.0035 | PIPE R1 PUMP / SERP. L = 600 1 / 2F GIR 90 '- 3 / 8F GIR 90' |
| 051 | 4.618.0043 | TUBE R1 3/8 L = 375 C.1 / 2F.GIR 90 '/ C.3 / 8F GIR 90' |
| 052 | 5.611.0012 | COVER BOILER CONE FO RATO |
| 053 | 5.611.0016 | Replaced by 5.611.0099 CABLE L = 480 WITH PROTECTION |
| 054 | 3.003.0010 | NUT M6 BLIND HEX BRASS UNI 5721 |
| 055 | 3.004.0006 | FLAT WASHER D.6,4X12 Th. 1,6 ZNT UNI6592 |
| 056 | 5.613.0047 | Replaced by 5.613.0147 BOILER EXTERNAL COVER |
| 057 | 5.613.0080 | DEFLECTOR WITH CONE D.82 WITH HOLES |
| 058 | 5.613.0122 | COVER INT.CAM.COMB. CHIMNEY L = 90 |
| 059 | 4.604.0001 | TOP COIL H.335 (F E. 35.2) |
| 060 | 5.613.0118 | BOILER BODY JOLLY 5 / LKX VERN ICIATO |
| 061 | 4.608.0012 | Replaced by 4.608.0489 RIGID REFRACTORY BOTTOM D.290 DENS.280 |
| 062 | 4.608.0013 | Replaced by 4.608.0489 SOFT REFRACTORY BOTTOM D.29 0 DENS.64 |
| 063 | 4.607.0006 | SERP. FIXING BAND IN LAMI ERA 15/10 INOX AISI 430 |
| 064 | 4.608.0004 | Replaced by 4.608.0162 BOILER BOTTOM GASKET |
| 065 | 5.613.0116 | BOILER BASE JOLLY 5 / LKX -VERN ICIATA- |
| 067 | 3.100.0018 | QUICK COUPLING 3/8 M. 08 (465) 26070050 |
| 068 | 4.606.0038 | SAFETY VALVE REGISTER SCREW |
| 069 | 4.606.0039 | Replaced by 4.606.0087 THERMOSTAT BULB BODY AND SAFETY VALVE BODY |
| 070 | 3.004.0004 | ALUMINUM WASHER 21x30xSP.1, 5 |
| 071 | 3.100.0020 | NIPPLO 1 / 2G-3 / 8G |
| 072 | 5.613.0093 | Replaced by 5.613.0282 THERMOSTAT BULB SUPPORT JOLLY 4/93 |
| 073 | 4.618.0030 | B.P. TUBE D.20X10 3 / 8M.-3 / 8M. L.450 |
| 074 | 4.606.0019 | SUCTION FITTING L = 60 M22 - 3 / 8G |
| 075 | 4.008.0031 | ASP.H2O D.16 CONICAL FILTER |
| 076 | 5.609.0013 | Replaced by 5.609.0059 BULB BODY THERMOSTAT JOLLY 4 '93 |
