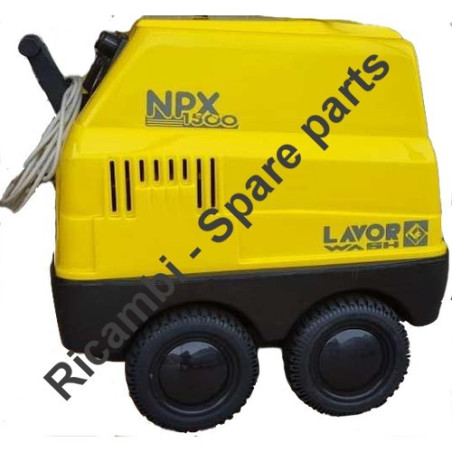

Lavor Original Parts for Pressure Cleaner NPX 1500 - 8.605.0049
€1.72
Tax included
Lavor Original Parts for Pressure Cleaner NPX 1500 - 8.605.0049
Lavor original spare parts for to replace broken parts for to fix HOT Water High Pressure Cleaner NPX 1500 220/380/50 -G - 8.605.0049-1 - G.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner NPX 1500 - 8.605.0049
Lavor original spare parts for to replace broken parts for to fix HOT Water High Pressure Cleaner NPX 1500 220/380/50 -G - 8.605.0049-1 - G.
In the following tables, look for the spare part and its respective code.
| 86050049-1 - IDRO NPX 1500 220/380-50 -G- pag.1 | ||
| # | Part Num. | Description |
| 001 | 3.002.0122 | SCREW M6X12 ZNT |
| 002 | 4.613.0094 | UPPER COACHWORK BLU RAL50 15 J.4/NPX |
| 003 | 4.608.0062 | LOWER COACHWORK JOLLY 4/93 |
| 004 | 4.612.0031 | 4.612.0046 FEEDING CABLE H05PVC 4X1,5 L=5000 |
| 005 | 4.608.0074 | LONG SPACER FOR TANK JOLLY 4/93 |
| 006 | 4.008.0104 | Substituited by 5.009.0159 PLASTIC CAP 3/8 OIL LOAD |
| 007 | 4.608.0073 | SHORT SPACER FOR TANK JOLLY 4/93 |
| 008 | 5.613.0096 | BOILER AXLE JOLLY 4/93 |
| 009 | 4.608.0082 | GAS OIL-CHEM TANK CAP |
| 010 | 3.002.0038 | Substituited by 3.002.0022 SCREW TE M4X20 UNI 5739 |
| 011 | 3.006.0026 | 6.605.0168 WHEEL D.260X85 BLACK |
| 012 | 3.099.0019 | BLOCK WHEEL D.250x55 D.20 |
| 013 | 3.099.0096 | 4.608.0434 WHEEL COVER |
| 014 | 5.009.0340 | QUICK COUPLING ASSY +GASKET+RING NUT |
| 015 | 3.100.0043 | 3/8 M ROTATING QUICK COUPLING |
| 016 | 4.618.0016 | HOSE 5/16 210BAR MT.10 C/M AP1031 3/8 |
| 017 | 3.700.0015 | Substituited by 3.700.0036 GUN RL200 3/8+S4+QUICK CONN. 30015060 |
| 018 | 3.701.0015 | LANCE M22 700 MM 1/8 + PROT. |
| 019 | 3.103.0010 | Substituited by 3.103.0047 ORD HIGH PRESSURE NOZZLE 1/8M 1503 |
| 86050049-1 - IDRO NPX 1500 220/380-50 -G- pag.2 | ||
| 001 | 3.401.0048 | THERMAL SWITCH |
| 002 | 4.608.0079 | DASHBOARD '93 WITH COMPLETE SILKSCREEN |
| 003 | 4.608.0019 | BLACK THERMOSTATE KNOB 3079/1 |
| 004 | 4.608.0018 | Substituited by 4.608.0019 BLACK COCK KNOB 3081/1 |
| 005 | 3.403.0001 | Substituited by 3.403.0091 THERMOSTAT 30/150 BULB 6,5 |
| 006 | 4.606.0088 | RUBBER HOLDER 1/4 G M D.7 |
| 007 | 4.608.0065 | BOX DASHBOARD '93 |
| 008 | 4.608.0071 | GUIDING CABLE COVER DASHBOARD '93 |
| 009 | 4.008.0122 | Substituited by 5.009.0165 SWITCH SEALING SURROUND |
| 010 | 4.008.0121 | Substituited by 5.009.0165 TIN SWITCH COVER |
| 012 | 4.608.0066 | SWITCH HOLE CAP |
| 015 | 3.107.0004 | PRESS.GAUGE DIAM.50 0/250 1/4REAR+CLAMP |
| 016 | 4.618.0014 | PRESSURE GAUGE TUBE DN 2X330TG |
| 017 | 3.105.0002 | Substituited by 3.105.0003 DETERGENT REGULATOR COCK 1/8 F.F.+ NUT |
| 018 | 3.405.0023 | JUNCTION BOX |
| 019 | 3.499.0001 | Substituited by 5.613.0156 SUPPORT FOR SWITCH WITH SCREW |
| 020 | 4.608.0078 | GASKET |
| 025 | 5.611.0027 | Substituited by 5.611.0194 FLANGE FOR BURNER |
| 026 | 4.607.0001 | GLOW PLUG RESTANT PLATE 15X32 |
| 027 | 4.614.0001 | Substituited by 4.614.0004 ELECTRODE O772589000 |
| 028 | 3.100.0017 | ELBOW 4 1/8 COPPER TUBE |
| 029 | 3.099.0015 | RING SEEGER I D.21 SP1 DIN 472 |
| 030 | 4.608.0002 | SITE GLASS DIAM.20 SP.1,8 |
| 031 | 4.605.0001 | WROUGHT BURNER FLANGE |
| 032 | 3.104.0004 | Substituited by 3.104.0028 DIESEL NOZZLE 1,25 45-B |
| 033 | 4.606.0066 | HOUSING FIXING ROD |
| 034 | 4.616.0001 | COPPER TUBE D.4 |
| 035 | 3.400.0013 | Substituited by 6.605.0102 IGNITION TRANSFORMER 230/50 818C/S C/W WIRE L.600 |
| 036 | 4.607.0072 | MOTOR CLAMP |
| 038 | 4.608.0036 | FEEDING CABLE CONNECTOR |
| 039 | 4.608.0068 | GUIDING HANDLE COMPACT 4P |
| 040 | 5.613.0094 | HANDLE HOLDER JOLLY 4/93 |
| 047 | 3.004.0015 | PLAIN WASHER D.22X39X2 UNI6592 |
| 048 | 4.606.0013 | COIL FIXING NUT 1/2 BRASS SPEC. |
| 049 | 5.611.0043 | DIESEL FILTER UNIT JOLLY 4/93 |
| 050 | 4.618.0035 | TUBE R1 PUMP/COIL TG480 |
| 051 | 4.618.0033 | TUBE R2 FROM COIL TO BLOCK JOLLY 4/93 |
| 052 | 5.611.0012 | EXTERNAL BURNER COVER DIAM.341 |
| 053 | 5.611.0016 | Substituited by 5.611.0099 RUBBER COATED CABLE L=480 WITHPROTECT. |
| 054 | 3.003.0010 | BLIND NUT E. M6 UNI 5721 BRASS |
| 055 | 3.004.0006 | PLAIN WASHER D.6.4X12X1.6 UNI6592 |
| 056 | 5.613.0047 | Substituited by 5.613.0147 BOILER OUTWARD COVER |
| 057 | 5.613.0080 | Substituited by 5.610.0105 BUNCHER WITH TAPER D.82 WITH HOLES |
| 058 | 5.613.0027 | COMBUST.CHAMB.INWARD COVER CHIMM. L=110 |
| 059 | 4.604.0001 | COIL TOP H.335 |
| 060 | 5.613.0095 | BODY BOILER JOLLY 4/93 |
| 061 | 4.608.0012 | Substituited by 4.608.0116 RIGID REFRACTORY BOTTOM D.290DENS.280 |
| 062 | 4.608.0013 | Substituited by 4.608.0116 CHEESY REFRACTORY BOTTOM D.290DENS.64 |
| 063 | 4.607.0006 | COIL FIXING STRIP PLATE 20/10 |
| 064 | 4.608.0004 | Substituited by 4.608.0162 GASKET WITHOUT AMIANTH. FOR BOILER ESP.2 |
| 065 | 5.613.0097 | BASE BOILER JOLLY 4/93 |
| 067 | 3.100.0018 | RAPID COUPLING 3/8 M. 08 (465) |
| 068 | 4.606.0038 | ADJUSTING SCREW FOR SAFETY VALVE |
| 069 | 4.606.0039 | Substituited by 4.606.0087 THERMOST.BULB BODY AND SAFETY VALVE |
| 070 | 3.004.0004 | ALUMINIUM WASHER 21X30XSP 1,5 |
| 071 | 3.100.0020 | REDUCTION M.GAS/M.GAS 1/2-3/8 |
| 072 | 5.613.0093 | Substituited by 5.613.0282 THERMOSTATE BULB HOLDER JOLLY4/93 |
| 073 | 4.618.0030 | TUBE B.P. D.20X10 3/8M-3/8M. L.450 |
| 074 | 4.606.0019 | SUCTION CONNECTOR M22 IDRO COMPACT |
| 075 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 076 | 5.609.0013 | Substituited by 5.609.0059 THERMOSTAT BODY |
| 86050049-1 - IDRO NPX 1500 220/380-50 -G- pag. 3 | ||
| 001 | 4.608.0017 | Substituited by 6.605.0086 PUMP SIDE HALF FEMALE SCREW GMV D.150 |
| 002 | 4.608.0083 | FAN PVC D.180 DOWNSWED HUB ESP.5 |
| 003 | 3.002.0068 | SCREW TCEI M6X12 UNI 5931 ZNT |
| 004 | 4.608.0016 | Substituited by 6.605.0086 HALF FEMALE SCREW SIDE MOTOR GMV D.150 |
| 005 | 3.002.0067 | AUTOTHREAD.SCREW TC-TC 3,2X26 RAP.FIX |
| 006 | 3.002.0060 | SELF TAPPING CROSS HEAD SCREW 3.9X16 RAPID FIX |
| 007 | 4.608.0022 | SETTING THROTTLE LEVER GMV 150 |
| 008 | 4.608.0021 | SETTING THROTTLE GMV 150 |
| 009 | 3.099.0012 | Substituited by 6.605.0173 GASOIL PUMP PLASTIC COUPLING |
| 010 | 3.414.0002 | COIL 220/50 GASOIL DELTA PUMP |
| 011 | 3.551.0001 | Substituited by 3.551.0062 DOUBLE PIPE GASOIL PUMP W/COIL |
| 012 | 3.100.0015 | STRAIGHT CONNECT.1/8M. FOR COPP.TUBE D.4 |
| 013 | 4.607.0104 | Substituited by 4.607.0257 CONNECT. WITH COUPLING FOR FAN |
| 014 | 4.606.0036 | CONVOYER STUD BOLT G.M.V. D.150 |
| 015 | 4.607.0009 | TIE ROD GMV M6X130 |
| 016 | 3.004.0006 | PLAIN WASHER D.6.4X12X1.6 UNI6592 |
| 017 | 3.003.0019 | NUT |
| 018 | 5.009.0089 | Substituited by 5.009.0088 ASSEMBL.BOLT/PISTON D.15 CERAMIC |
| 019 | 4.007.0011 | PISTON RECALL SPRING D.15 30L.42 |
| 020 | 5.009.0159 | OIL CAP WITH O-RING 3/8G |
| 021 | 3.200.0004 | O-RING GASKET 12,4X1,78 REF.2050 |
| 022 | 4.008.0391 | OIL SEAL SPACER |
| 023 | 4.606.0041 | SECOND SEALING HOLDER RING 130/8 ESP.1 |
| 024 | 3.201.0003 | WATER SEALING RING N.15X22X4 |
| 025 | 4.606.0040 | SECOND SEALING BUSHING 130/8 OT. ESP.4 |
| 026 | 3.200.0003 | O-RING GASKET 25,12X1,78 REF.2100 |
| 027 | 4.008.0109 | ANTI-EXTRUS.RING FOR SEALING 15X25X2 |
| 028 | 3.201.0006 | SEALING RING PDF 15X25X5 G1N84-1046 |
| 029 | 4.008.0108 | HEAD RING D.15 H.4 |
| 030 | 3.002.0148 | SCREW STEI M6X6 DIN 906 |
| 033 | 5.609.0064 | VALVE CAP ASSY + OR |
| 034 | 5.609.0065 | COUPLING ASSY FOR AIR PRESSURE SWITCH |
| 035 | 3.704.0006 | PRESSSURE SWITCH 25BAR 1/8 L=700 FASTON F. |
| 036 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 037 | 5.009.0215 | DELIVERY SUCTION VALVE LAVOR 1 |
| 038 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 039 | 4.605.0030 | Substituited by 6.005.0194 REAR CALOTTE FOR MOTOR |
| 040 | 3.099.0017 | UNLOADING RING D.51XD.42 |
| 041 | 3.001.0010 | BEARING 6205-2Z |
| 042 | 5.602.0002 | FRAME LW.T. 22O-380/50 H.100 2P |
| 043 | 5.605.0009 | ROTOR SHAFT 80X100 |
| 044 | 5.609.0029 | FRONT FLANGE FOR MOTOR |
| 045 | 3.200.0015 | O-RING GASKET 117X2,5 |
| 046 | 3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
| 047 | 3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
| 048 | 3.201.0002 | O-RINGBADSLSF 15X25,4X5 /7 |
| 049 | 4.005.0072 | INCLINED PLATE 7.52 C=6,6 5(S)ESP.2 |
| 052 | 3.001.0012 | BALLS THRUST BEARING -51207- |
| 054 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 055 | 5.009.0109 | SUCTION CONNECTION WITH OR |
| 056 | 3.099.0003 | OIL LEVEL INDICATOR SLNS-3/8 HOBBY |
| 057 | 4.005.0055 | GUIDE BODY PISTON OMNIA 130/8 ALUMINIUM |
| 058 | 3.002.0003 | HEXAGON SOCKET HEAD CAP SCREW M8X25 UNI 5931 ZNT |
| 061 | 5.009.0136 | HOSE-COUPLING |
| 062 | 5.609.0052 | Substituited by 6.005.0078 COMPENSATED VALVE ROD D.11 ASSEMBLY |
| 063 | 3.002.0004 | SCREW STEI 3/8 G.DIN 906 (OIL LOAD CAP) |
| 064 | 4.606.0072 | COMPENSATED VALVE HEAD |
| 065 | 3.004.0031 | PLAIN WASHER D.8X14X1.6 UNI6592 |
| 066 | 3.004.0022 | WASHER SNHOR D.8X13 SP.0,8 |
| 067 | 3.002.0078 | HEXAGON SOCKET HEAD CAP SCREWM8X40 UNI 5931 ZNT |
| 068 | 4.006.0109 | TAPERED 1/8 CAP |
| 069 | 4.607.0016 | CHAMBER COOLING BULKWARD H.100 |
| 072 | 3.107.0001 | Substituited by 3.107.0006 GAUGE D.40 0/160 BAR 1/8 |
| 074 | 5.609.0018 | BYPASS VALVE UNLOADED VALVEUNIT |
| 075 | 4.606.0062 | INJECTOR COUPLING |
| 076 | 4.006.0025 | HOSE FITTING OMNIA MEDIUM TYPEM22 |
| 077 | 4.007.0014 | DETERG.STOP VALVE SPRING 4X8 ESP.3 |
| 078 | 3.005.0001 | BALL INOX 420 DIAM.5 DEGREE OFACCURACY G 500 |
| 079 | 5.009.0164 | Substituited by 6.005.0030 DETERGENT INJECT. HOSE FITTING |
| 080 | 5.008.0101 | BRASS HEAD '97 -COMPENSATED VALVE D.11 |
