Fasa IDRO CHRONO 20 Parts
€29.50
Tax included
Fasa Original Parts for Pressure Cleaner CHRONO 20
We have the original Fasa Original Parts for Pressure Cleaner IDRO CHRONO 20 230/50 BLU EU FASA TS C/ROTOX - 8.032.0601, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Fasa Original Parts for Pressure Cleaner CHRONO 20
We have the original Fasa Original Parts for Pressure Cleaner IDRO CHRONO 20 230/50 BLU EU FASA TS C/ROTOX - 8.032.0601, the diagram, parts list and tool repair that help you need to get your tools running like new again.Open PDF File in this Page to choose Spare Parts for Pressure Washer Fasa.

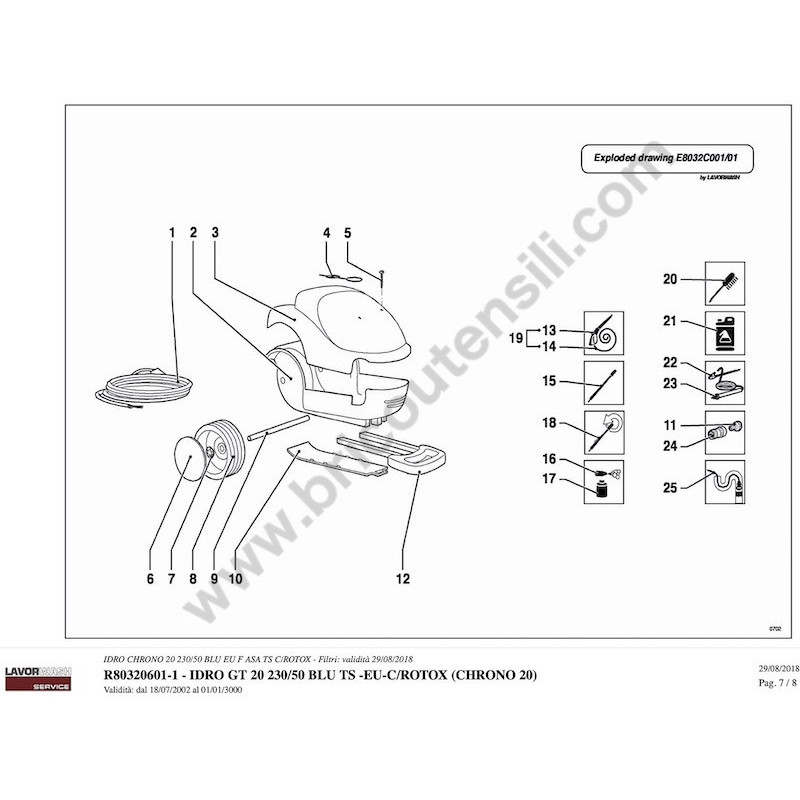

| IDRO CHRONO 20 230/50 BLU EU FASA TS C/ROTOX - 8.032.0601 | ||
| Pag.1 |
||
| # | Part Num | Description |
| 1 | 4.012.0149 | EXTERNAL CABLE H05VV-F 3X1 5.4 MT. SCHUKO F/F SPLASH-PROOF |
| 2 | 4.013.0234 | BLACK LOWER FAIRING FOR CATTO |
| 3 | 4.013.0289 | GT UPPER FAIRING - BLUE - RAL 5015 |
| 4 | 4.007.0114 | NOZZLE CLEANING PIN D.0.8 ES P.04 |
| 5 | 3.002.0112 | TC-TORX SCREW T15 3.9X25 HI-LO ZNT |
| 6 | 3.099.0130 | WHEEL STUD FOR SP150 BLUE RAL 5015 |
| 7 | 3.099.0051 | WHEEL LOCK 12 (HUB D.12) |
| 8 | 3.006.0023 | WHEEL D.150 HOLE 12 BLACK (SP 1.50) |
| 9 | 4.007.0149 | CATTO AXLE |
| 10 | 4.008.0397 | BLACK HANDLE COVER FOR GT |
| 11 | 3.100.0082 | 3/4 BLACK QUICK COUPLING WITH SEAL (THREAD L=11.5) |
| 12 | 4.008.0396 | BLACK SLIDING HANDLE FOR GT |
| 13 | 6.001.0083 | S'01 GUN -EU- |
| 14 | 4.018.0061 | 1/4 HOSE 140 BAR L=8000 1/4 F-Swivel M22x1.5 D.15 |
| 15 | 6.002.0327 | ROTOX LANCE S99 1.10 (GREEN) |
| 16 | 5.011.0033 | REINFORCED INTEGRAL COGETIL FOAM LANCE |
| 17 | 3.601.0002 | ANONYMOUS YELLOW DETERGENT TANK FOR FOAM LANCE |
| MOTOPOMPA PT'02 110h100 230/50D.12 TS pag.2 | ||
| 1 | 5.009.0213 | SWITCH ASSEMBLY 0/1 BEEP 12(10)A + TRANSPARENT PROTECTION |
| 2 | 3.406.0004 | PG.11 TEARPROOF CABLE GLAND |
| 3 | 4.008.0354 | ELECTRICAL BOX PART'96 + COVER FOR SWITCH CORN.TS |
| 4 | 3.002.0135 | SELF-TAP SCREW TC-TC 2.9X13 UNI 6 954 ZNT |
| 5 | 3.404.0017 | CAPACITATOR 25mF 450V D. 39X94 F/M |
| 6 | 4.008.0613 | PARTNER ELECTRIC BOX SEAL |
| 7 | 4.008.0583 | FAN COVER FOR '96 MOTOR WITHOUT GRILLE |
| 8 | 3.099.0049 | FAN RETAINING RING D. 23 |
| 9 | 4.008.0714 | PARTNER LOWERED FAN 24 h BLACK |
| 10 | 5.002.0124 | '02 HOUSING D. 110H100 230/50 2P |
| 11 | 3.001.0033 | RADIAL BALL BEARING 6003 2RS (17x35x10) |
| 12 | 5.005.0049 | ROTOR SHAFT D. 55 H. 100 CYL. |
| 13 | 3.002.0115 | M5X35 T-Slot Screw, Trilobal Zinc |
| 14 | 5.009.0166 | Front Engine Flange, 110'96 Part |
| 15 | 3.201.0008 | Oil Seal Ring, D. 17X35X7 |
| 16 | 3.001.0030 | Radial Ball Bearing, 6303 (17X47X14) |
| 17 | 4.005.0196 | 8.30 Cylindrical Slant Plate |
| 18 | 3.001.0003 | External Thrust Bearing, AS4565 |
| 19 | 3.001.0025 | Needle Roller Cage, Type AXK4565 - Steel |
| 20 | 4.007.0001 | External Thrust Bearing, D. 65x30x6 (C10Pb), Finished |
| 21 | 5.009.0452 | Retainer/Piston Assembly, D. 12, Ground, Partner |
| 22 | 3.200.0014 | O-Ring, 85 x 2.5, Nitrile |
| 23 | 4.007.0025 | Return Spring, D. 14-12 |
| 49 | 3.200.0013 | O-Ring, 11.1 x 1.78 REF. 114 |
| 50 | 3.201.0014 | OIL SEAL RING D. 12x20x5/7 |
| 51 | 3.002.0094 | TCEI SCREW M6x30 ZNT TRILOBAL |
| 53 | 4.006.0109 | 1/8 BAS TAPERED PLUG |
| 54 | 3.200.0018 | OR SEAL 9.92x2.62 SHORE 90 |
| 55 | 3.200.0019 | OR SEAL 12.4x1.78 SHORE 90 |
| 56 | 5.009.0101 | INTAKE/DELIVERY VALVE CAP WITH MOUNTED OR |
| 57 | 5.009.0005 | INTAKE/DELIVERY VALVE LAVOR 1 |
| 58 | 4.008.0031 | WATER INLET FILTER D. 16 CONICAL |
| 62 | 4.008.0657 | OIL SEAL SPACER D. 12 PARTNER |
| 63 | 4.006.0251 | SEAL SUPPORT RING D. 12 PARTNER |
| 64 | 4.008.0695 | LOW ANTI-EXTRUSION RING 12X18X1 FOR PARTNER D. 12 |
| 65 | 3.201.0020 | WATER SEAL D. 12X18X5 NBR SH. 90 (SP2898N) |
| 66 | 5.009.0015 | COMPLETE INTAKE VALVE TOP |
| 67 | 4.005.0187 | PARTNER '01 HEAD FOR D.12 PISTONS, FINISHED |
| 68 | 4.007.0229 | TCEI SCREW M6x70, ZNT TRIFLOBE |
| 69 | 5.009.0516 | MICRO SWITCH + TS CABLE ASSEMBLY PARTNER USA/EU |
| 70 | 5.009.0254 | PLUG + OR ASSEMBLY FOR TOTAL STOP VALVE |
| 71 | 4.008.0467 | LOW TOTAL STOP SPRING BLOCK FOR ED |
| 72 | 4.007.0146 | SPRING Di.11.2, De.14.6, L=24.5, D.1.7 THREAD |
| 73 | 4.007.0211 | SPRING Di=7.4, De=10.6, L=18, D.1.6 THREAD, yellow |
| 76 | 5.009.0360 | VALVE ASSEMBLY 2.7 FOR TOTAL OR 5.28X1.78 |
| 81 | 4.005.0188 | PISTON GUIDE BODY D.12, W/O IN. FINISHED |
| 82 | 5.007.0145 | PISTON GUIDE BODY D.12 S/R S/IN D.2.7 TS SPRING 1.6 LOW PASTE |
| 83 | 5.008.0160 | PARTNER HEAD D.12 S/IN |
| 85 | 5.006.0159 | '02 MOTOR D110H100 230-240/50 2P FOR PARTNER |
| 86 | 3.200.0021 | OR SEAL 6.75X1.78 NBR SH70 |
| 87 | 3.406.0011 | RING NUT FOR PG.11 TEAR-RESISTANT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fasa IDRO CHRONO 20
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
