FASA Pressure Cleaner EXXEL20 Parts
€281.17
Tax included
FASA Parts for Pressure Cleaner EXXEL20
Lavor original spare parts for to replace broken parts for to fix IDRO EXXEL20 '03 230/50 BLU EU TS 2L FASA - 8.062.0815.Fix Your Pressure Cleaner Rap 110. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FASA Parts for Pressure Cleaner EXXEL20
Lavor original spare parts for to replace broken parts for to fix IDRO EXXEL20 '03 230/50 BLU EU TS 2L FASA - 8.062.0815.Fix Your Pressure Cleaner Dance. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

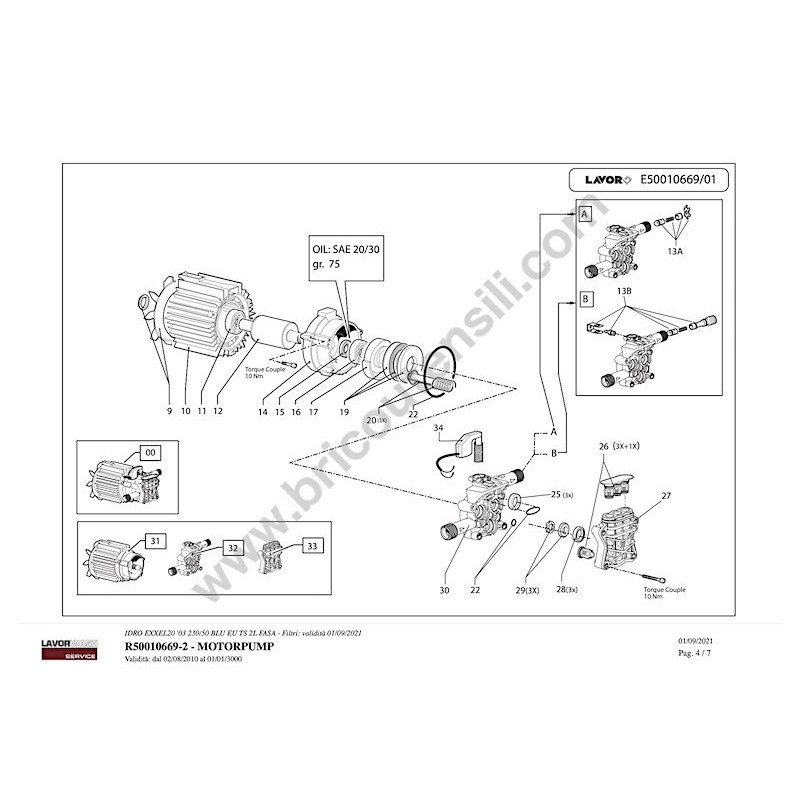

In the following tables, look for the spare part and its respective code.
| IDRO EXXEL2 '3 23/5 BLU EU TS 2L FASA - 8.062.0815 | ||
| Motor Pump Pag.1 | ||
| # | Part Num | Description |
| 0 | 5.001.0669C | MOTOR PT'03 110H80 230-240/50 D.12 8GR30 TS IN.1.7 (FAN D.127.5) |
| 9 | 6.005.0387 | KIT 353 LW FAN + RING |
| 10 | 4.005.0276 | ENGINE CASING '10 110H80/90 |
| 11 | 3.001.0033 | RADIAL BALL BEARING 6003 2RS (17x35x10) |
| 12 | 5.005.0065 | ROTOR SHAFT FOR 110H80-10 MOTOR |
| 14 | 4.005.0277 | FRONT FLANGE ENGINE D.110-'10 PT'03 FOR SELF-THREADING SCREWS |
| 15 | 3.201.0008 | OIL SEAL RING D.17X35X7 |
| 16 | 3.001.0030 | RADIAL BALL BEARING 6303 (17X47X14) |
| 17 | 4.005.0278 | INCLINED PLATE 8GR30 FOR PT'03 BEARING BALL THRUST BEARING |
| 19 | 4.007.0328 | EXT BALL THRUST BEARING 35X55X12 FOR PT'03 |
| 20 | 6.005.0181 | EXT KIT 167 LW 3 PISTONS + SPRINGS PT'03 |
| 22 | 6.005.0226 | ORD KIT 209 O-RINGS FOR PT'03 |
| 25 | 6.005.0079 | ORD KIT 79 LW OIL SEAL RINGS FOR PARTNER D.12/FIBER |
| 26 | 6.005.0184 | ORD KIT 170 LW INLET/DELIVERY VALVE PT'03 |
| 27 | 4.005.0210 | HEAD PT'03 WASHING |
| 28 | 6.005.0133 | ORD KIT 124 WATER SEAL RINGS PARTNER D.12 |
| 29 | 6.005.0282 | KIT 257 LW ALUMINUM SEAL RINGS + SPACERS PT D.12 |
| 30 | 4.005.0263 | PISTON GUIDE BODY PT'03 WITH INLET HOLE THREADED |
| 31 | 5.009.0749C | EXT ASSEMBLY ENGINE 09 D110H80 230-240/50 2P W/TER PT03 + PLATE 8GR30 |
| 32 | 5.007.0187C | GUIDE BODY PT'03 PISTON D.12 W/TS - INLET - COMP. VALVE - M.13KG |
| 33 | 5.008.0182C | CYLINDER HEAD PT'03 D.12 -C- |
| 34 | 5.009.0716 | COMP. VALVE ASSEMBLY W/TS PT'03 CABLE L=530 SPRING 13KG (WHITE COVER) |
| 13B | 6.005.0277 | EXTERNAL KIT 252 LW INJECTOR 1.7 + THREAD HOLDER + CHECK VALVE PT'03 |
| Chassis Pag.2 | ||
| 1 | 6.005.0273 | VIPER WHEEL D.160 |
| 2 | 4.008.0531 | EQ-VIPER BLACK WHEEL COVER EXP.0 |
| 3 | 4.007.0290 | MACH WHEEL FIXING AXLE LENGTH 287 DIAM. 8 |
| 4 | 4.008.0986 | REAR FAIRING MACH FOR WHEELS D.180 |
| 5 | 4.013.0400 | MACH FRONT FAIRING, BLUE RAL.5015 |
| 6 | 4.008.0967 | MACH LOWER LANCE HOLDER |
| 7 | 3.404.0017 | 25µF 450V CAPACITOR D.39X94 F/M |
| 8 | 6.005.0235 | MACH SIDE LANCE HOLDER |
| 9 | 4.008.1268 | MOTOR HOUSING 110H80 (D.142) |
| 10 | 3.401.0178 | EXTERNAL 0/1 SWITCH, BLACK PUSH/BUTTON, IP55 12/10 |
| 11 | 4.008.0785 | MACH BLACK ACCESSORY HOLDER |
| 12 | 4.008.0821 | MACH HANDLE WITH SWITCH CUT-OUT |
| 13 | 4.012.0149 | EXTERNAL CABLE H05VV-F 3X1, 5.4 METRES THICK SCHUKO F/F SPLASH GUARD |
| 14 | 7.100.1677 | SPECIFIC MANUAL MACH-EXXEL/MF/SPEED + CE LAVOR 27L A5 12F |
| 15 | 4.008.0789 | TIGER-MACH HOSE SUPPORT |
| 16 | 4.008.0786 | MACH SIDE CABLE REEL BLACK |
| 17 | 3.099.0122 | LMX-EAGLE TANK CAP |
| 18 | 4.008.0793 | MACH DETERGENT TANK BLACK |
| 19 | 6.001.0084 | EXTENDED S'09 GUN WITH INTEGRATED QUICK COUPLING WITH LEVER -N- |
| 20 | 4.018.0096 | HOSE 1/4 18MPa L=8000 ROTARY M22x1.5 D.15 - QUICK COUPLING FOR S'09 |
| 23 | 6.002.0340 | EXTENDED S'12 LANCE WITHOUT HEAD WITH QUICK COUPLING -COGETIL |
| 24 | 6.002.0343 | EXTENDED S'12 LANCE HEAD D.1.00 - BLUE - WITH QUICK COUPLING (FAN JET) |
| 25 | 6.002.0346 | EXT ROTOX HEAD LANCE S'12 D. 1.025 - BLACK - WITH QUICK COUPLING |
| 28 | 3.100.0082 | 3/4 BLACK QUICK COUPLING WITH SEAL (THREAD L=11.5) |
