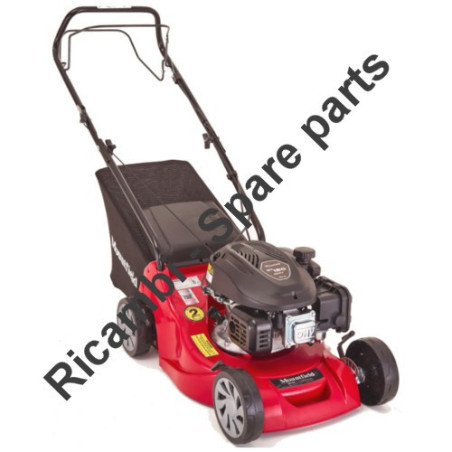

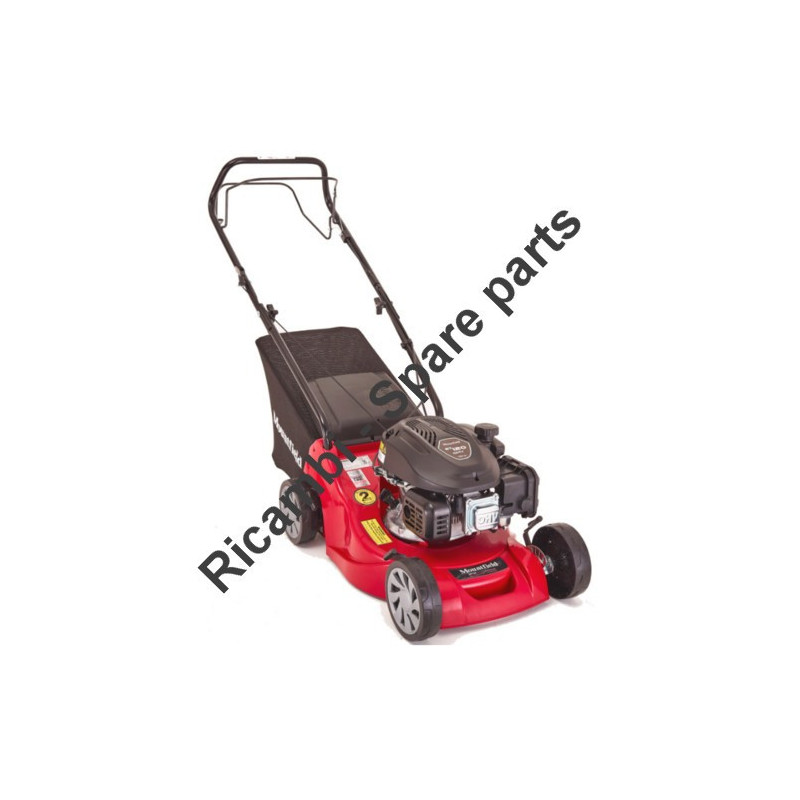

Mountfield Spare Parts for Petrol Lawnmower SP164
€2.08
Tax included
Mountfield Spare Parts for Petrol Lawnmower SP164
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP164 - 297412048/MC - 2020.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Mountfield Spare Parts for Petrol Lawnmower SP164
We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP164 - 297412048/MC - 2020.
In the following table, look for the model of the Petrol Lawnmower and the respective parts of the code.
| Chassis And Cutting Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 322066750/0 | Red plastic dek |
| 1 | 322066752/0 | Red plastic dek |
| 2 | 322060245/0 | Deck cover |
| 3 | 112154210/0 | Nut |
| 5 | 322785361/0 | Wheel support |
| 6 | 322735599/0 | Height Adjustment Sector |
| 7 | 381003352/0 | Height Adjustment Lever |
| 8 | 381005089/0 | Wheel support |
| 8 | 381005163/0 | Wheel support |
| 9 | 122519811/0 | Pin |
| 10 | 112521350/0 | Washer |
| 11 | 112155000/0 | Nut |
| 12 | 112728690/0 | Screw |
| 13 | 322608563/0 | Rear reinforcement |
| 15 | 381003353/0 | Height Adjustment Lever |
| 16 | 112728689/0 | Screw |
| 17 | 322735601/0 | Height Adjustment Sector |
| 18 | 112728690/0 | Screw |
| 19 | 122033417/0 | Rear Wheel Axle |
| 20 | 122753001/0 | Plug |
| 21 | 112608600/0 | Seeger |
| 22 | 112521370/0 | Washer |
| 23 | 322570135/0 | Right pinion |
| 24 | 119216035/0 | Bearing |
| 25 | 322785379/0 | Support |
| 26 | 322600203/0 | Wheel protection |
| 27 | 322570136/0 | Left pinion |
| 28 | 322120118/0 | Crown Drag |
| 29 | 112523040/0 | Washer |
| 30 | 112735592/0 | Screw |
| 31 | 322686101/0 | Wheel |
| 31 | 381007475/0 | Wheel |
| 32 | 322034516/0 | Bushing |
| 33 | 322110642/0 | Gray hubcap |
| 34 | 322686100/0 | Wheel Ø 175 |
| Handle, Lower Part Pag.2 | ||
| 1 | 381006769/0 | Lower handle |
| 2 | 112523020/0 | Washer |
| 3 | 112728450/0 | Screw |
| 4 | 112819110/0 | Screw |
| 5 | 118566110/0 | ferrule |
| 6 | 122671651/0 | Washer |
| 7 | 122399900/0 | Black dial |
| 8 | 112293200/0 | Nut |
| 10 | 381008687/0 | Screws |
| Handle, Upper Part Pag.3 | ||
| 1 | 381006739/0 | Handle, Upper Part |
| 1 | 381006739/1 | Handle, Upper Part |
| 1 | 381006739/2 | Handle, Upper Part |
| 2 | 122430313/0 | Guide spring |
| 3 | 112521330/0 | Washer |
| 4 | 112154510/0 | Nut |
| 5 | 118390020/0 | Cable clip |
| 6 | 181030056/0 | Motor Brake Cable |
| 7 | 181003363/0 | Black Motor Brake Lever |
| 7 | 181003363/1 | Engine Brake Lever |
| 8 | 112727783/0 | Screw |
| 9 | 322551640/0 | Cable Fastening Plate |
| 9 | 322551685/0 | Cable fixing plate ø22 |
| 10 | 112154510/0 | Nut |
| Traction group Pag.4 | ||
| 1 | 181003108/0 | Traction group |
| 2 | 112645705/0 | Roll pin |
| 3 | 122601909/0 | Pulley |
| 4 | 135063730/0 | Belt |
| 5 | 122753000/0 | Gear box pin |
| 6 | 125430216/0 | Spring |
| 6 | 125430216/1 | Spring |
| 6 | 125430217/0 | Spring |
| Blade Pag.5 | ||
| 1 | 122465607/3 | Blade boss, Drive Shaft Ø 22.2 |
| 1 | 122465607/4 | Blade boss, Drive Shaft Ø 22.2 |
| 2 | 181004152/0 | Knife |
| 2 | 181004360/3 | Mulching blade |
| 3 | 122160400/0 | Elastic disc |
| 4 | 112523080/0 | Washer |
| 5 | 112735698/0 | Screw |
| 6 | 112139100/0 | Tab |
| 7 | 112691910/0 | Screw |
| 8 | 112523060/0 | Washer |
| 9 | 122167842/0 | Spacer |
| 10 | 112154210/0 | Nut |
| 11 | 122040265/0 | Bushing |
| Grass Bag Pag.6 | ||
| 1 | 322600212/0 | Black stone guard |
| 2 | 122450467/0 | Spring |
| 3 | 122517870/0 | Pin |
| 4 | 181006420/0 | Frame |
| 4 | 181006420/1 | Frame |
| 5 | 181002320/0 | Grass Bag |
| Engine - Carburetor, Tank Pag.7 | ||
| 2 | 112292102/0 | Nut |
| 3 | 118551467/0 | Starter Assy |
| 4 | 118551619/0 | Starter handle |
| 5 | 118550779/0 | Starter rope |
| 6 | 118551621/0 | Starter Spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Starter ratchet |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Pulley pin |
| 14 | 118550908/0 | Air conveyor |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw |
| 18 | 118551475/0 | Electronic coil |
| 20 | 9400-0244-00 | Spark Plug |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Auto choke control |
| 23 | 118551459/0 | Rod |
| 24 | 118551352/0 | Retaining clip |
| 25 | 118551489/0 | Carburetor |
| 26 | 118550930/0 | Prisoner |
| 27 | 118550929/0 | Gasket |
| 28 | 118550928/0 | Thermal spacer |
| 29 | 118550927/0 | Gasket |
| 30 | 118550924/0 | Gasket |
| 31 | 118551461/0 | Air Filter assy |
| 32 | 118550946/0 | Filter element |
| 33 | 118550945/0 | Filter element |
| 34 | 118550944/0 | Air filter cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551481/0 | Fuel pipe |
| 37 | 118550918/0 | Hose clamp |
| 38 | 118550314/0 | Fuel filter |
| 39 | 118551454/0 | Tank |
| 40 | 118550943/0 | Tank cap |
| 41 | 112792099/0 | Screw |
| 42 | 118550920/0 | Vent Pipe |
| 43 | 118550933/0 | Throttle lever |
| 44 | 118550931/0 | Plate |
| 45 | 112789000/0 | Screw |
| 46 | 118550932/0 | Spring |
| 47 | 118550805/0 | Screw |
| 48 | 118550806/0 | Nut |
| 49 | 118550925/0 | Throttle stick |
| 50 | 118550898/0 | Mufffler Gasket |
| 51 | 118551464/0 | Muffler |
| 52 | 112792425/0 | Screw |
| 53 | 118550900/0 | Silencer protection |
| 54 | 118551277/0 | Bolt |
| Engine - Piston, Crankshaft Pag.8 | ||
| 1 | 118550336/0 | Nut |
| 2 | 118550905/0 | Flywheel Assy |
| 3 | 118551277/0 | Bolt |
| 4 | 112791500/0 | Screw |
| 5 | 118551483/0 | Flywheel Brake Assy |
| 6 | 118550911/0 | Spring |
| 7 | 118550300/0 | Seal ring |
| 8 | 118550897/0 | Cylinder Assy |
| 9 | 112789000/0 | Screw |
| 10 | 118550904/0 | Cover |
| 11 | 118550903/0 | Oil breather gasket |
| 12 | 118550902/0 | Valve |
| 13 | 118551488/0 | Crankshaft Ass |
| 14 | 118550288/0 | Flywheel key |
| 15 | 118550283/0 | Washer |
| 16 | 118550890/0 | Camshaft |
| 18 | 112789000/0 | Screw |
| 19 | 118550888/0 | Regulator assy |
| 20 | 118550936/0 | Regulator shaft |
| 21 | 118550666/0 | Washer |
| 22 | 118550935/0 | Seal ring |
| 23 | 118550856/0 | Pin |
| 24 | 118550379/0 | Seal ring |
| 25 | 118551209/0 | Crankcase |
| 26 | 118550887/0 | Oil Cap assy |
| 27 | 112791500/0 | Screw |
| 28 | 118551276/0 | Bolt |
| 29 | 118550891/0 | Valves cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118550893/0 | Valves Barbell Set |
| 32 | 118550894/0 | Plate |
| 33 | 118550895/0 | Stopper |
| 34 | 118550896/0 | Spring |
| 35 | 118550910/0 | Intake + Exhaust Valve assy |
| 36 | 118550291/0 | Valve lifter assy |
| 37 | 118550912/0 | Push rod |
| 38 | 118551482/0 | Piston |
| 39 | 118551445/0 | Piston ring assy |
| 40 | 118550915/0 | Piston pin |
| 41 | 118550914/0 | Circlip |
| 42 | 118551487/0 | Rod assy |
| 43 | 118551223/0 | Headless screw (Wheat) |
| 45 | 118550940/0 | Engine Gaskets kit |
| Motor Cover Pag.9 | ||
| 1 | 322055629/0 | Gray cover |
| 2 | 322055630/0 | Cover, Yellow |
| 3 | 322055627/0 | Cover Gray |
