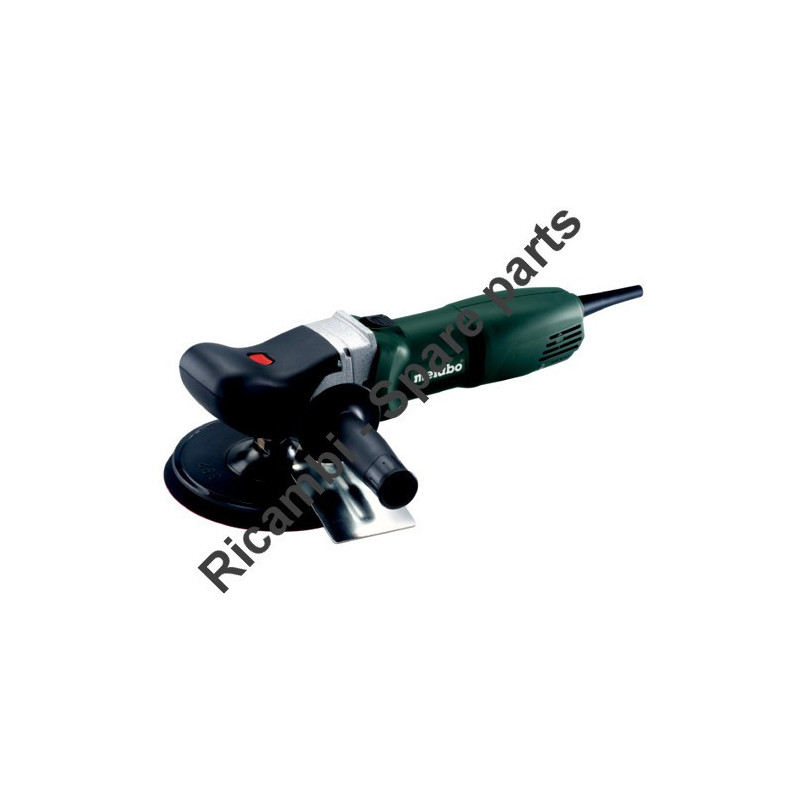

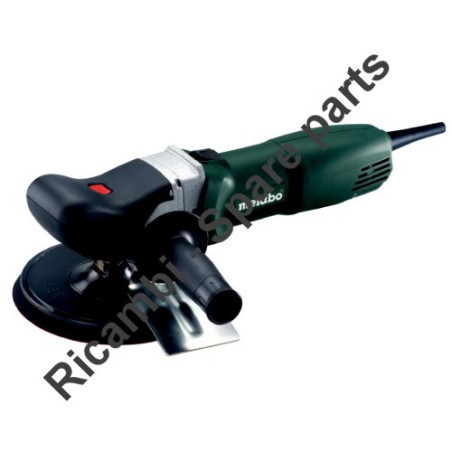

Metabo Spare Parts for Polisher PE 12-175
€1.58
Tax included
Metabo Spare Parts for Polisher PE 12-175
We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher PE 12-175 - 02175000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Polisher PE 12-175
We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher PE 12-175 - 02175000.
In the following table, look for the model of the Polisher and the respective parts of the code.
| Polisher PE 12-175/02175000 | ||
| # | Part Num. | Description |
| 1 | 34339016 | Cover |
| 2 | 33811724 | Label to read instructions |
| 3 | 31605343 | Sealing set |
| 5 | 14311565 | Ball bearing, 10x30x9 |
| 7 | 34001244 | spurwheel |
| 12 | 31603748 | Gear flange cpl. |
| 13 | 14311506 | Ball bearing, 8X 22X 7 |
| 14 | 31603121 | Fan w. prot. Grid |
| 15 | 34339112 | Tacho disc |
| 16 | 31000863 | Armature 230 V |
| 17 | 14311490 | Ball bearing, 6X 19X 6 |
| 18 | 14115334 | Washer |
| 19 | 34409526 | Rubber bushing |
| 20 | 33915089 | Baffle |
| 21 | 34339014 | Push button black |
| 23 | 34200155 | Pressure spring |
| 26 | 33900652 | Sealing washer |
| 27 | 34151379 | Bolt |
| 28 | 31603747 | Gear housing cpl. |
| 29 | 34339090 | Insert |
| 30 | 14111957 | Fill. head screw(DIN 7985) |
| 31 | 34337812 | Sealing ring |
| 32 | 33908031 | Flat plug |
| 33 | 14111578 | Fillister head screw |
| 34 | 34339418 | Switch slide |
| 35 | 34339188 | Switch rod |
| 36 | 14111602 | Self-tap fill h screw |
| 37 | 34336249 | Cable clip |
| 38 | 34340674 | Switch |
| 39 | 14111699 | Self-tap. fill. h. screw |
| 40 | 34337571 | 2 part motor cap |
| 41 | 34307728 | Light transmission |
| 42 | 34410097 | Cable sleeve |
| 43 | 34449318 | Cable with plug |
| 44 | 34170147 | Self-tap. fill. h. screw |
| 45 | 33906016 | Compensating Washer |
| 46 | 14111986 | Fillister head screw |
| 47 | 14111698 | Self-tap. fill. h. screw |
| 48 | 34337721 | Flange complete |
| 49 | 34160385 | Spindle shaft |
| 50 | 31603750 | Intermediate flange M14 cpl. |
| 51 | 33903954 | Hand guard |
| 52 | 31400054 | Handle cpl. |
| 53 | 33804509 | Rating plate |
| 54 | 31100989 | Field coil 230 V El |
| 55 | 34449396 | Cable strand |
| 56 | 34307749 | Temperature sensor |
| 57 | 31605220 | Motor housing |
| 59 | 33812216 | M-Label,08 52x22 |
| 60 | 31603551 | Carbon brush |
| 61 | 31603548 | Brush holder cpl. |
| 62 | 34307923 | Electronic unit |
| 880 | 34413084 | Special grease 100Gr 3,6oz |
